# C1 Paper Feed Sensor

1. Open the right door unit (A).




   Assembly / 組み立て

   When closing the right door unit, it may not close due to interference with the tumbler (A) that was tilted toward the front when other parts were repaired. If the right door unit does not close, check the position of the tumbler, and if it is protruding toward the front, fit the tip of the tumbler plate (C) into the hole (B) in the main unit.

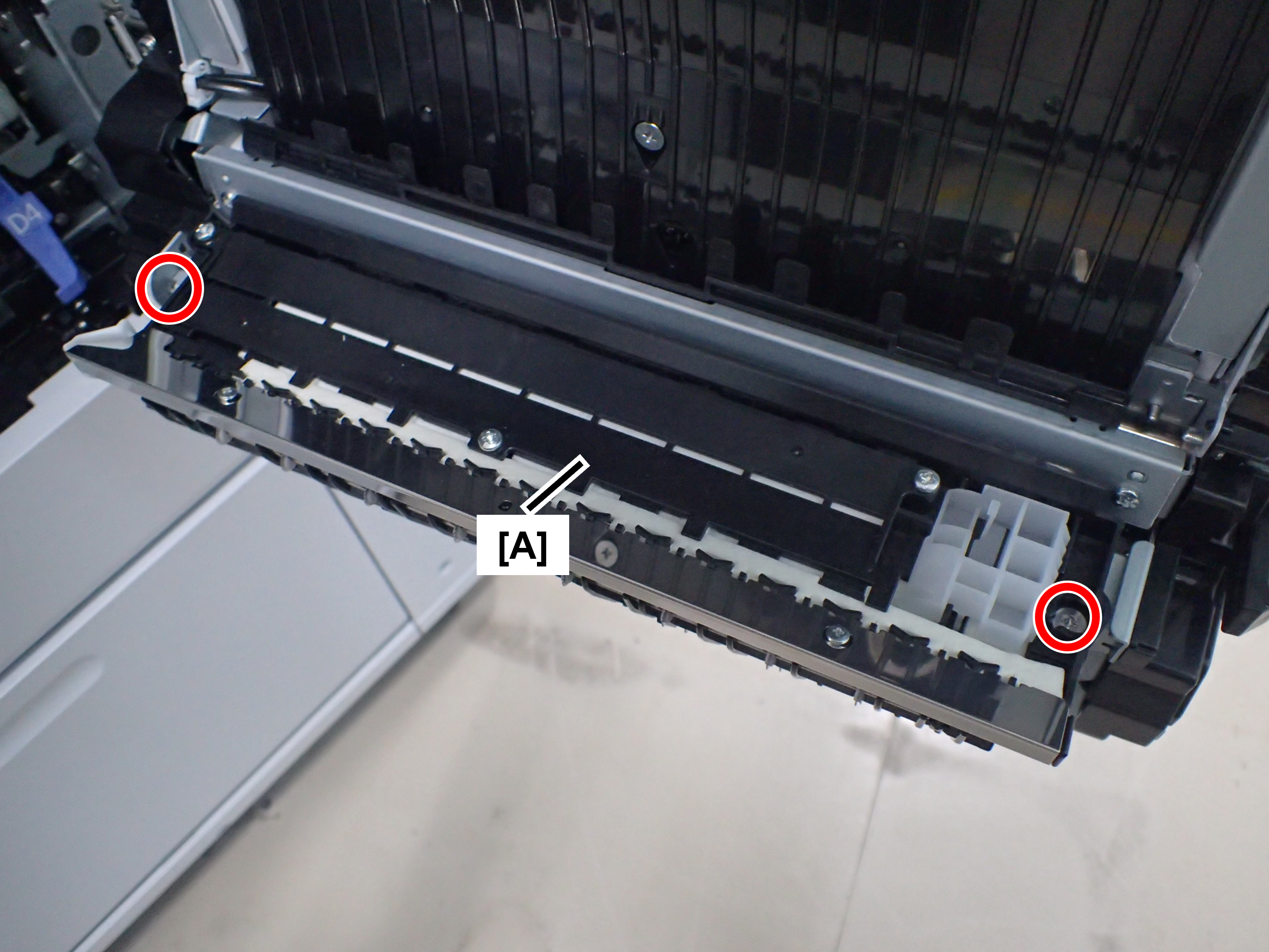

2. Remove the 2 screws and remove the right door absorber pad (A).




   : 3x5D

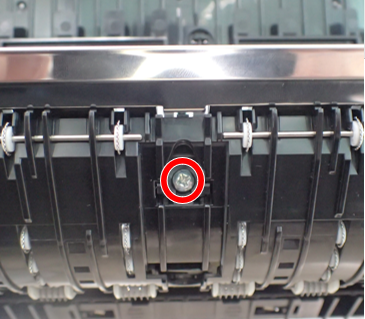

3. Remove 1 screw that secures the C1 paper feed sensor.



   : 3x8D

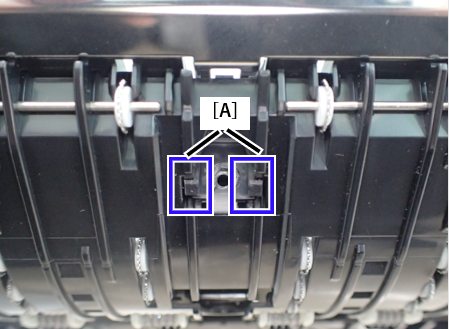

4. Release the 2 hooks (A).

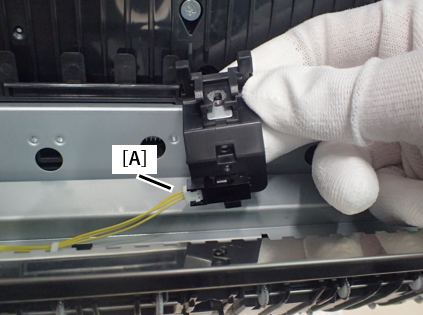

5. Lift up the C1 paper feed sensor Assy and remove the connector (A).



   Assembly / 組み立て

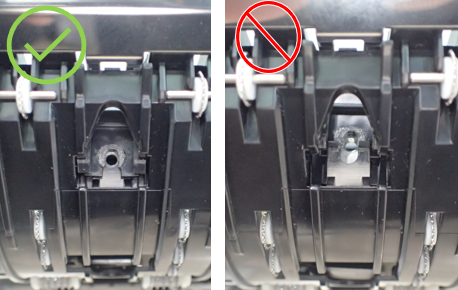

   When installing, with care to the position between the rib on the right door and the C1 paper feed sensor.

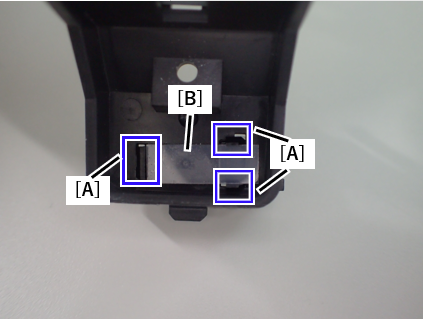

6. Remove the sheet (A), remove the 3 hooks (B), and remove the C1 paper feed sensor.
