20102 Ruled Line Pattern

Program No.

Pattern Name

Specifications

Pattern Image
(Paper transport direction: arrow direction)

Target image quality defect

20102

Ruled Line Pattern

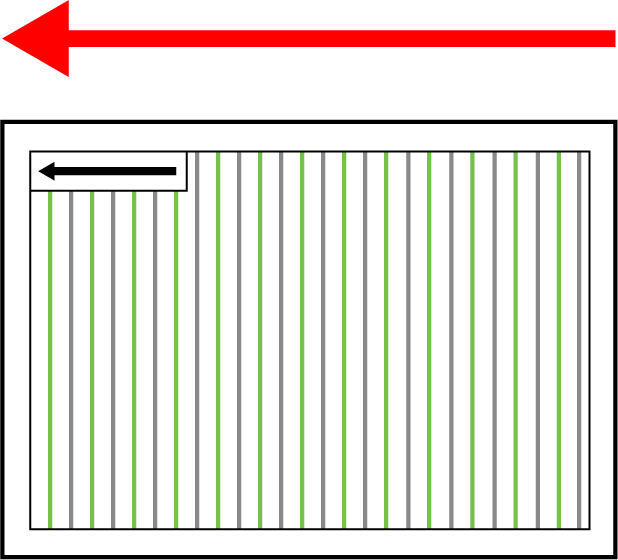

  • Pattern outline:Black and green lines are printed evenly spaced apart, and a black box surrounding the lines is also printed.
  • Paper size: A4/Letter
  • Paper type: Plain paper

  • Number of prints: 1

  • Ruled line misalignment

  • Character distortion

  • Color shift

  • Incorrect margins

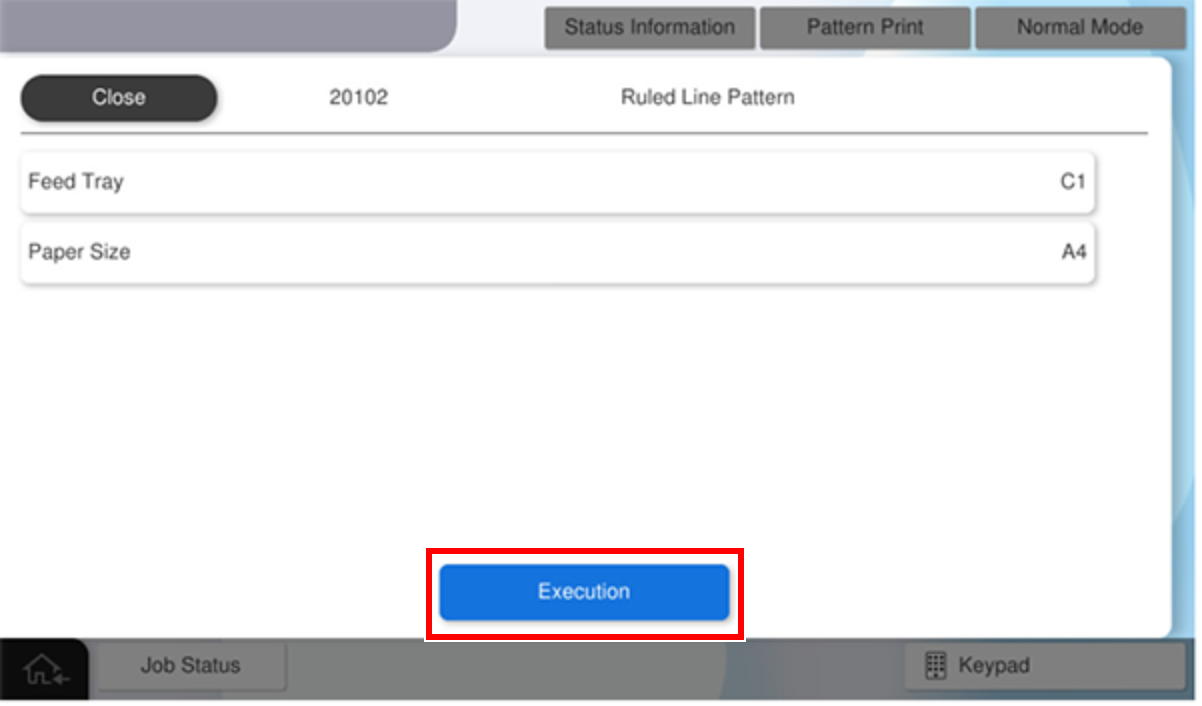

  1. Start service support mode.
  2. Select [02 Check Pattern Print / Paper Feed Confirmation].
  3. Select [Check Pattern Print] tab.
  4. Select [Ruled Line Pattern].
  5. press each setting item button to make print settings.


    the selectable items are as follows.

    program no. pattern name setting items choice
    20102 ruled line pattern feed tray c1, c2, c3, c4, Paper Tray
    available paper sizes a4, letter
  6. Press [Execution].
