60110 Top Registration Adjustment

Adjust the ink ejection timing from the detection of the leading edge of the paper to the start of printing.

  1. Start the service support mode.
  2. Select [06 Individual Adjustment].
  3. Select the [Main Unit・Additional Cassette] tab.

  4. Select [60110 Top Registration Adjustment].

  5. Press [Pattern Print].
  6. press each setting item button to make the print settings.


    the parameters that can be set are as follows.

    setting items choice
    feed tray c1, c2, c3, c4, Paper Tray
    available paper sizes a4, letter
    Check Point / チェックポイント

    match the paper feeder to be adjusted with the paper feed tray for pattern printing.

    e.g.) perform the Paper Tray’s side registration adjustment . → press [paper tray] and select [Paper Tray].
  7. Press [Execution] to print the pattern.
  8. Place the adjustment pattern in the same position as the figure below (so that “Simplex/Surface” faces up), and measure the amount of blank space for #3 and #4 with the scale.

    • Distance from paper edge to "◀ #3 mark"
    • Distance from paper edge to "#4▶ mark"
  9. Convert the measured values into panel input values.
    • Input value = measurement value x 10
    • e.g.) Measurement value = 7.5mm, Input value = 75
  10. Press [Paper Type] and select the paper type to be adjusted.


    The parameters that can be set are as follows.

    Setting Items Choice
    Paper Type Plain Paper (1-Sided), Plain Paper (2-Sided),Thick Paper 1/2/3 (1-Sided), Thick Paper 1/2/3 (2-Sided), Envelope, Postcard, Special Paper

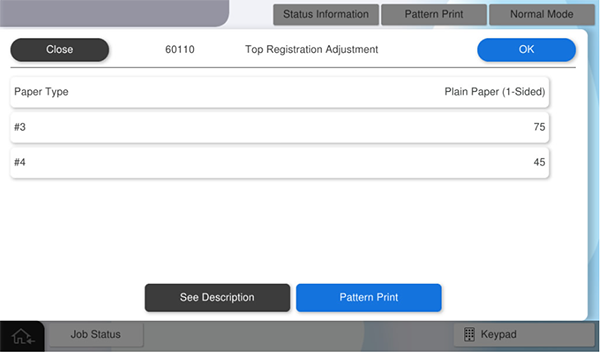

  11. Press [#3] and enter the input value #3
  12. Press [#4] and enter the input value #4
  13. Press [OK] to reflect setting value.


    Check Point / チェックポイント

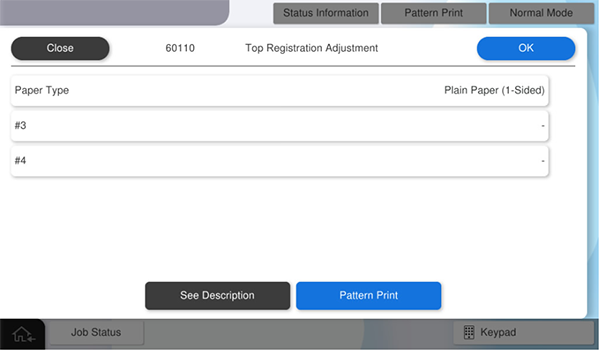

    • If you press [OK] when all the values have not been entered, the following screen will be displayed.
    • If you press [Pattern Print] with all values entered, the adjustment values will be reflected. After the adjustment value is reflected, all the adjustment values input to the panel are cleared. Press [Close] to finish the adjustment.


      By execute printing as it is, output the adjustment pattern after reflecting the adjustment values.
    Note / 補足

    In this adjustment, the image is adjusted to the standard position by inputting the measured value of the margin amount to the panel as an input value and calculating the adjustment value inside the program.
    If you want to shift the image to any position (blue frame), determine the input value by referring to the following adjustment value specifications.

    Internal adjustment value = (input value # 4-input value # 3) / 2
    To shift the image 1 mm leftward (left side of product) from the current position (orange frame): Internal adjustment value =-10

    To shift the image 1 mm rightward (right side of product) from the current position (orange frame): Internal adjustment value =-10
