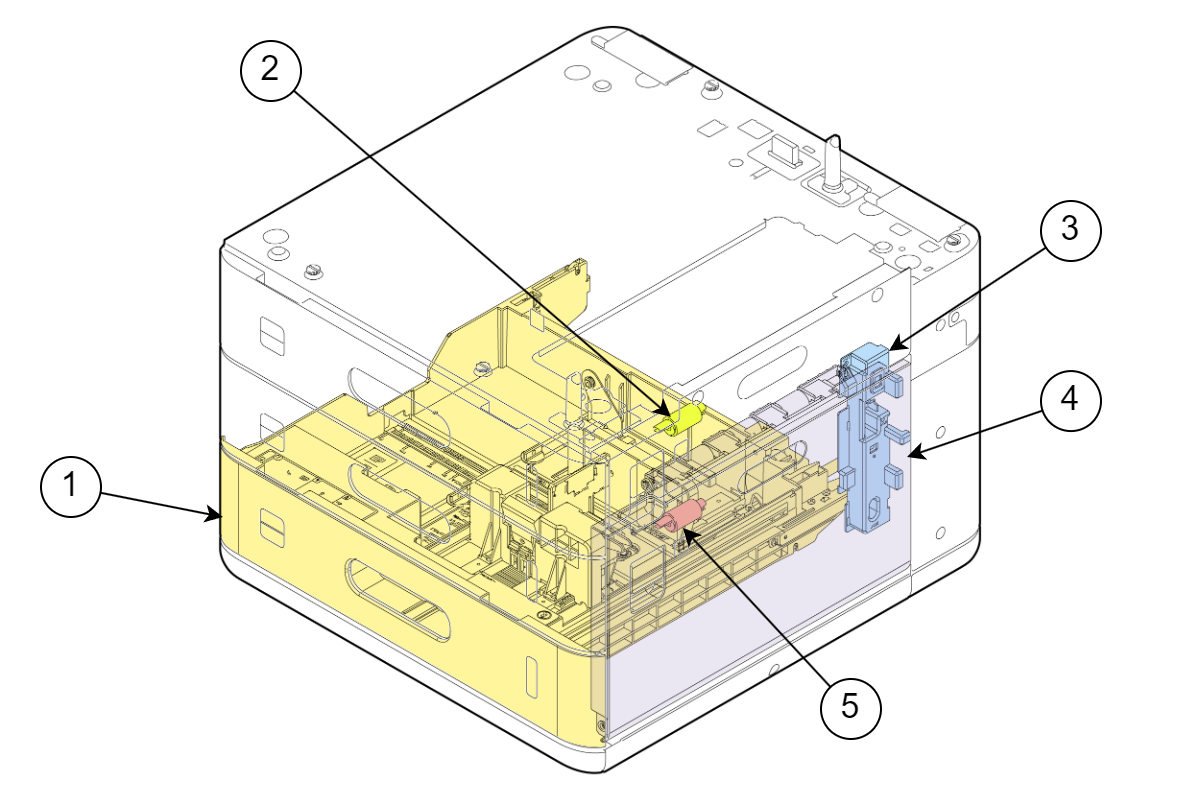

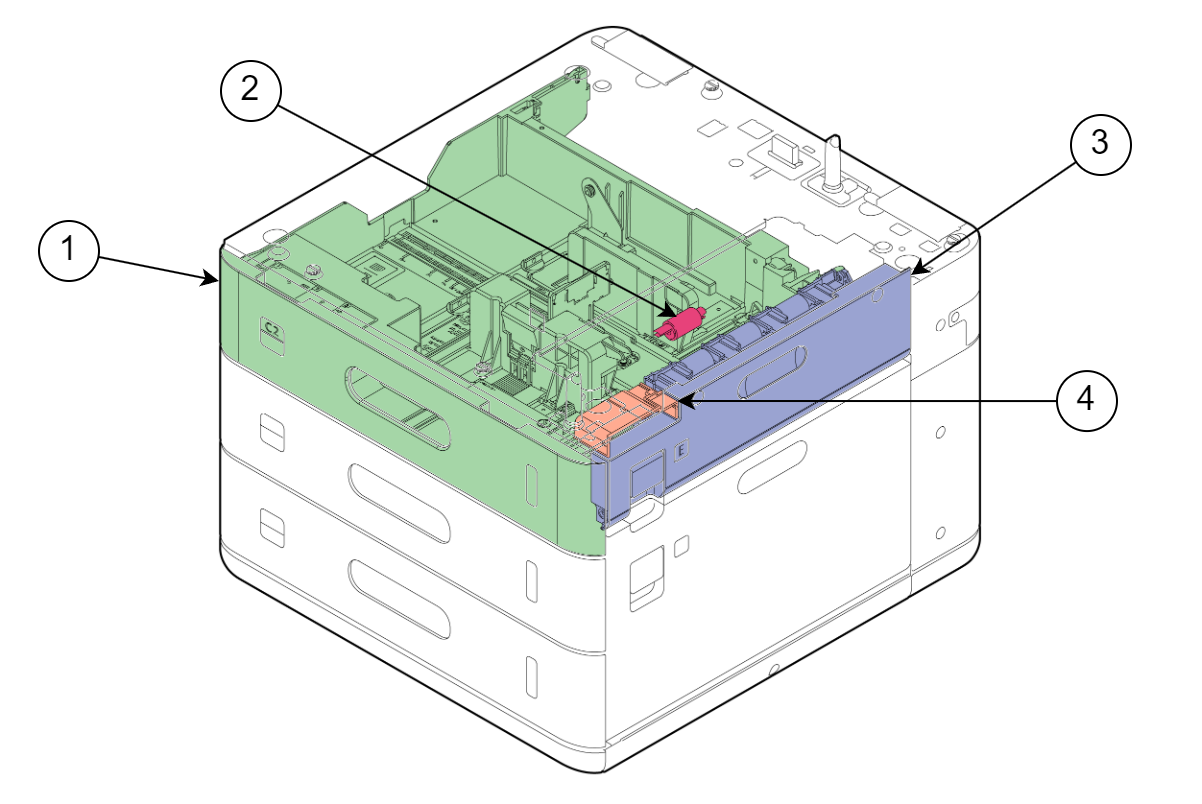

Additional Cassette Unit
| No. | Name |
|---|---|
| 1 | C2 Cassette |
| 2 | C2 Pickup Roller |
| 3 | C2 Additional Paper Feed Cover |
| 4 | Handle Cover Right |

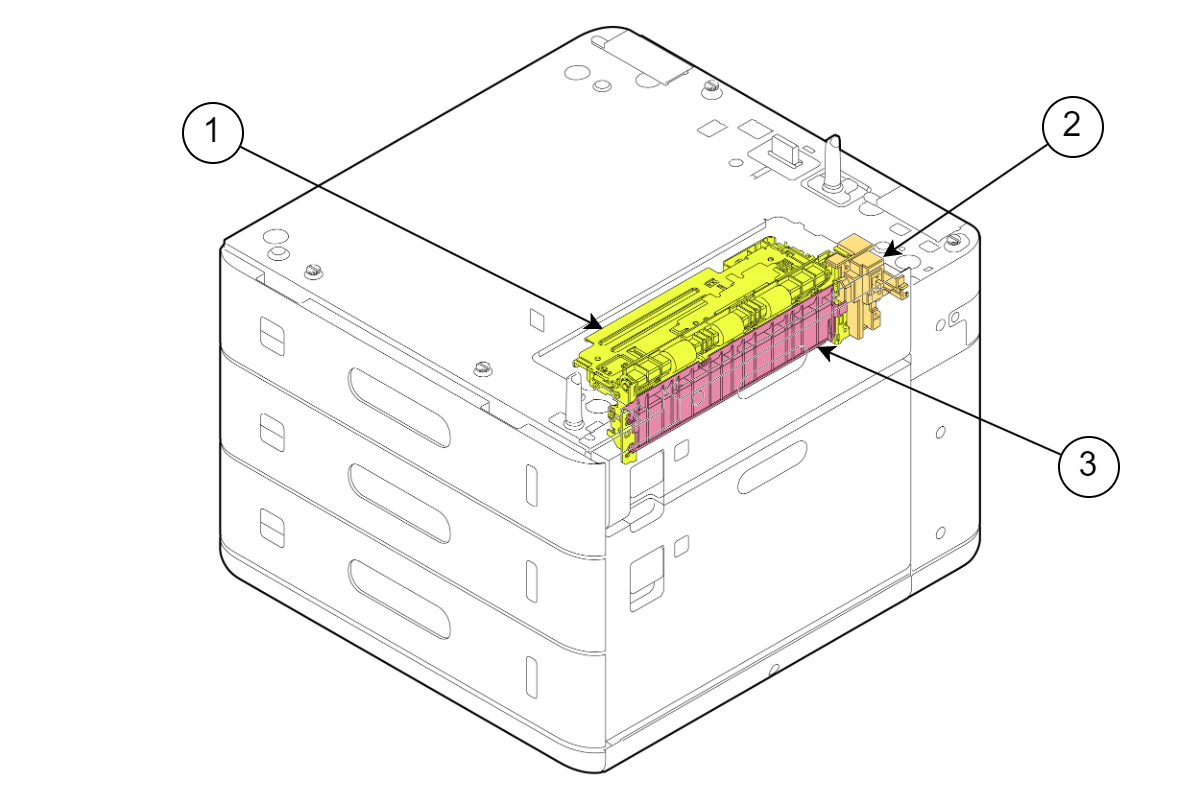

| No. | Name |
|---|---|
| 1 | C2 Pickup Unit |
| 2 | C2 Pickup Unit Connector Cover |
| 3 | C2 Guide PF Inner |

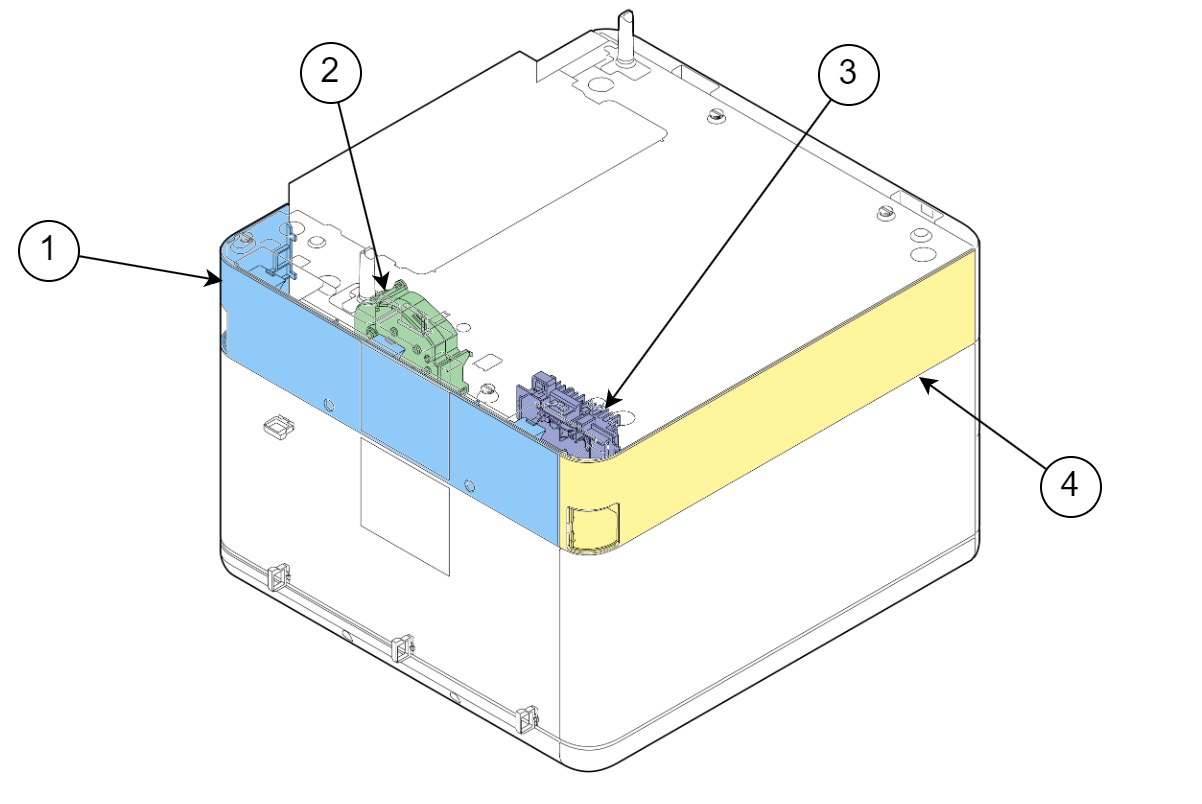

| No. | Name |
|---|---|
| 1 | C2 Additional Rear Cover |
| 2 | C2 Liftup Motor |
| 3 | C2 Paper Size/Cassette Sensor Assy |
| 4 | C2 Additional left Cover |

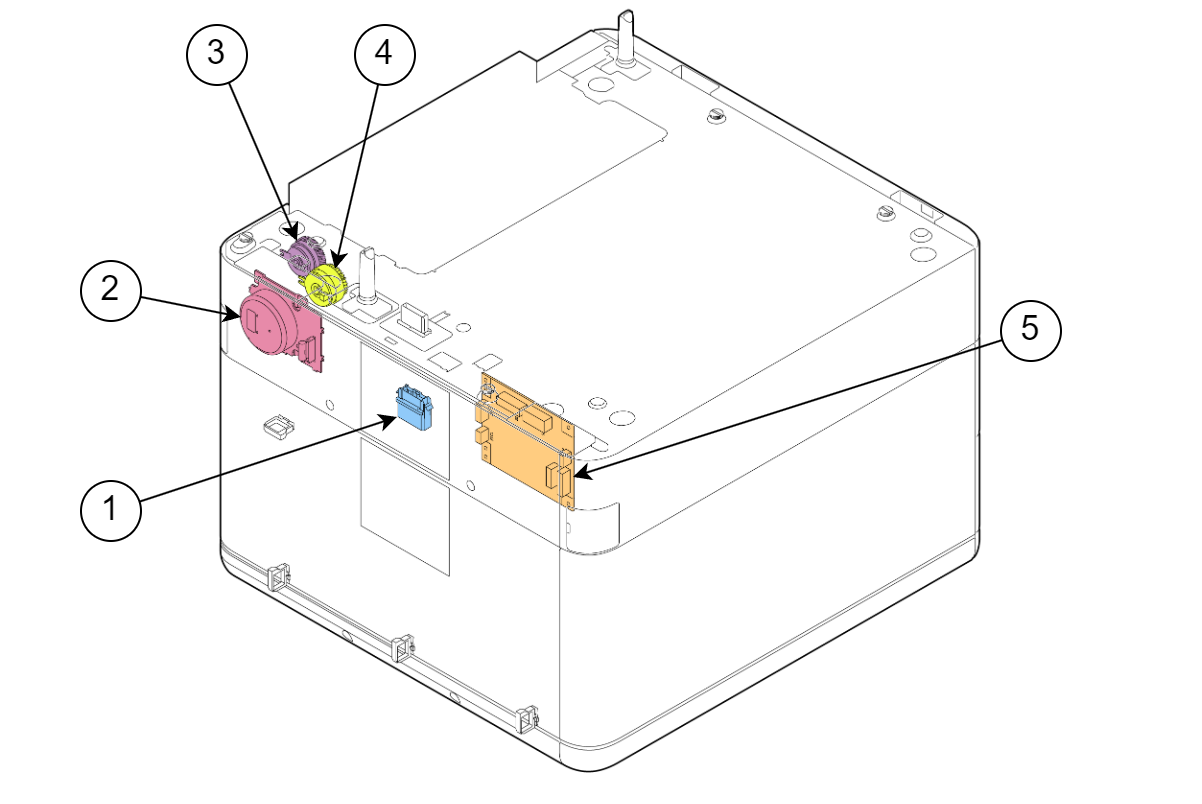

| No. | Name |
|---|---|
| 1 | C2 Additional Connector |
| 2 | C2 Drive Motor |
| 3 | C2 Pickup Clutch |
| 4 | C2 Pickup Roller Clutch |
| 5 | C2 Additional Main Board |
| No. | Name |
|---|---|
| 1 | C4 Cassette |
| 2 | C3 Pickup Roller |
| 3 | C3C4 Pickup Unit Connector Cover |
| 4 | C3C4 Additional Paper Feed Cover |
| 5 | C4 Pickup Roller |

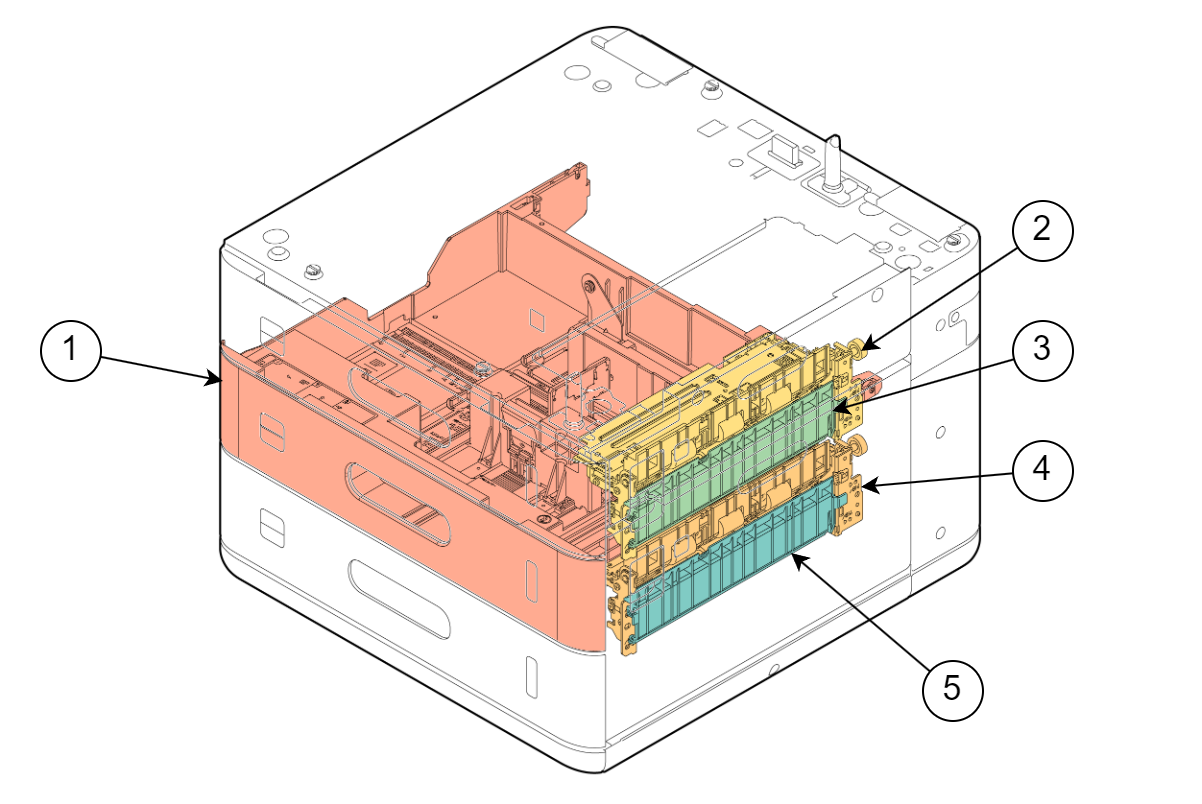

| No. | Name |
|---|---|
| 1 | C3 Cassette |
| 2 | C3 Pickup Unit |
| 3 | C3 Guide PF Inner |
| 4 | C4 Pickup Unit |
| 5 | C4 Guide PF Inner |

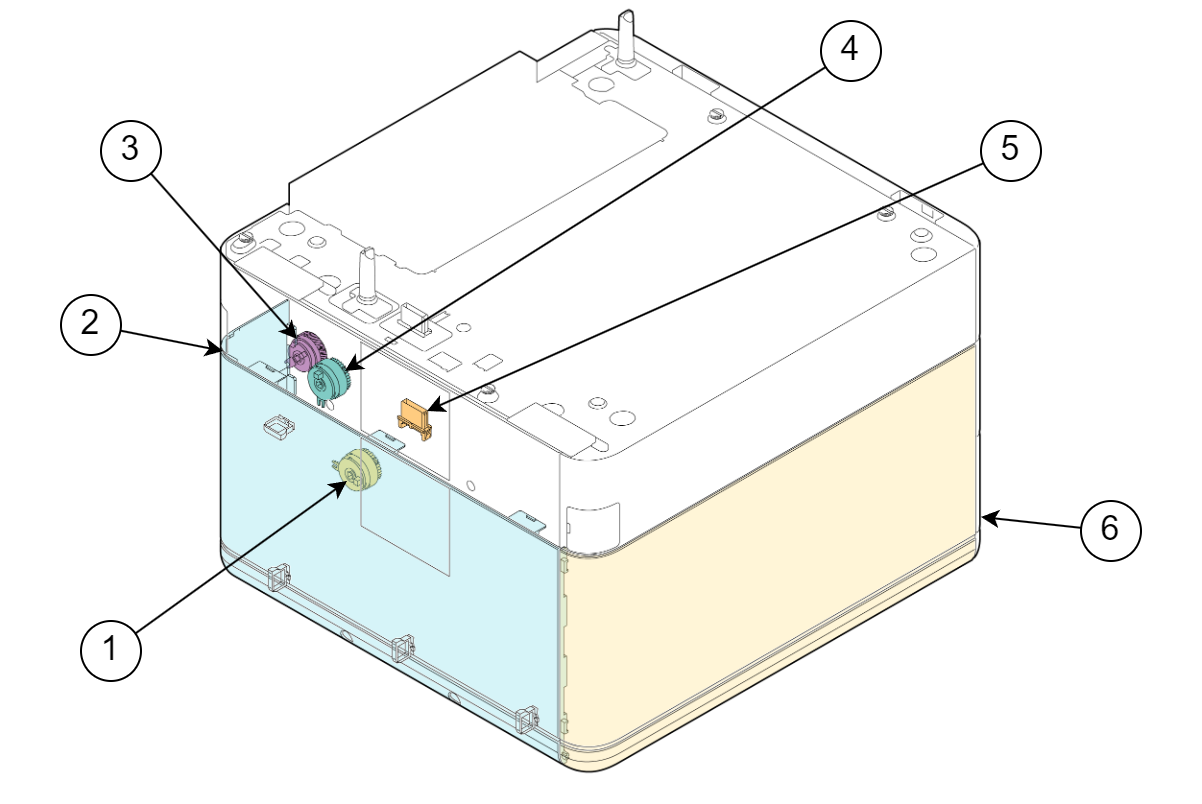

| No. | Name |
|---|---|
| 1 | C4 Paper Feed Clutch |
| 2 | C3C4 Additional Rear Cover |
| 3 | C3 Pickup Clutch |
| 4 | C3 Pickup Roller Clutch |
| 5 | C3C4 Additional Connector |
| 6 | C3C4 Additional left Cover |
