# Out-linger Box

1. Remove the 3 screws and remove the Right Cover (A).


   • : 3x8D
2. Remove the 5 screws and pull the rear cover (A) toward to remove it.



   • : 3x8D

   Assembly / 組み立て

   Confirm that the rear cover is not floating. The positioning pin (A) may not fit into the hole (B).

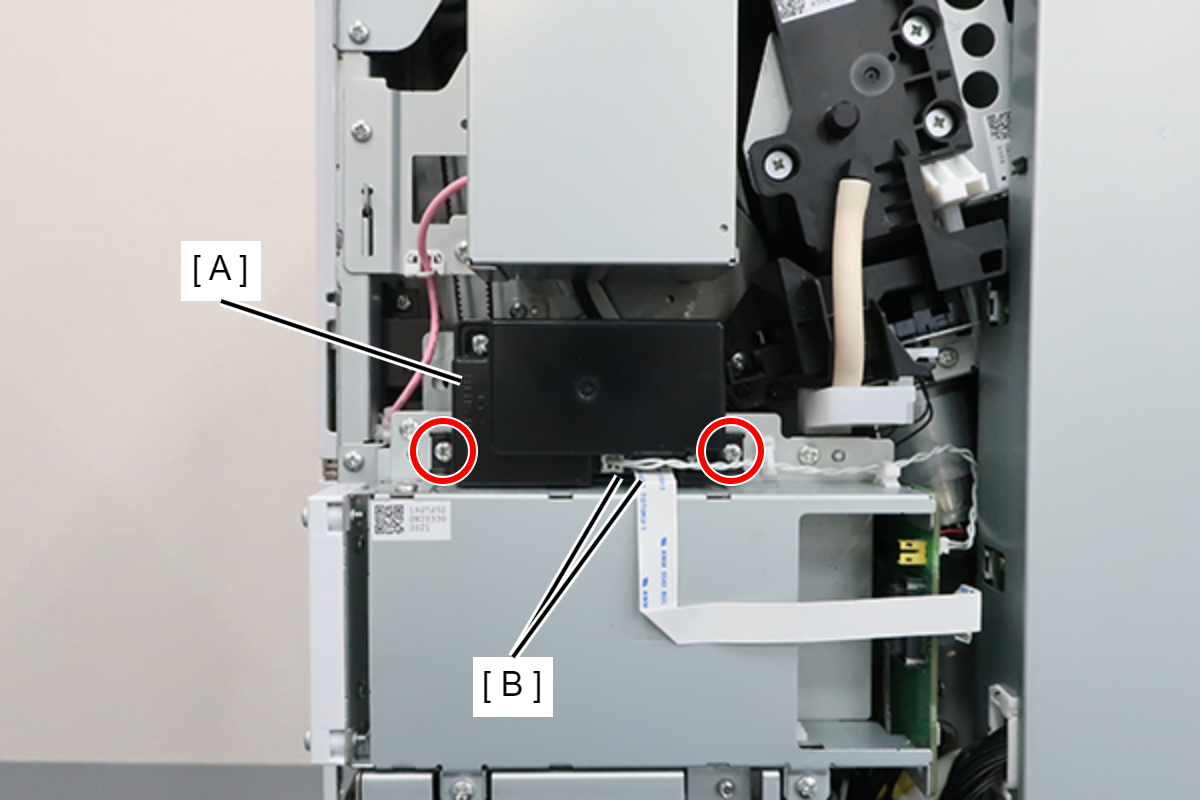

3. Remove 2 screws and remove the Out-linger Box (A).
4. Remove the cable and FFC from the connector (B), then remove the Out-linger Box (A).


   • : 3x8D
