20104 Black 25% Pattern

Program No.

Pattern Name

Specifications

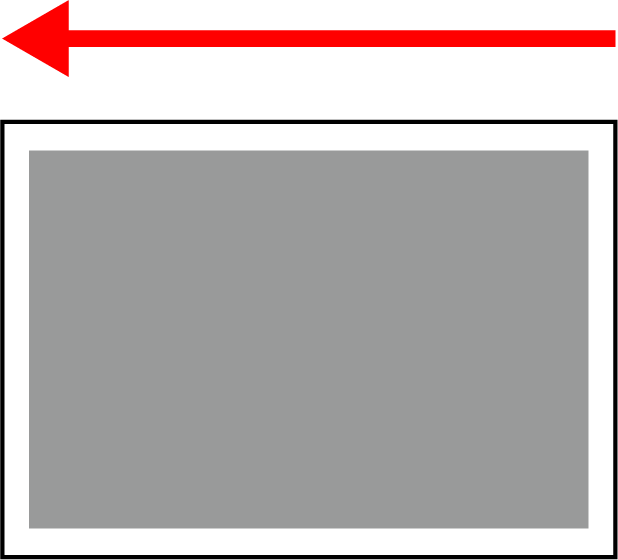

Pattern Image
(Paper transport direction: arrow direction)

Target image quality defect

20104

Black 25% Pattern

  • Pattern outline: Black (Duty 25%) uniform pattern

  • Paper size: A4/Letter

  • Paper type: Plain paper

  • Number of prints: 3

  • Diagonal Unevenness

  • Failure in fixing ink

  • White or dark banding
  1. Start service support mode.
  2. Select [02 Check Pattern Print / Paper Feed Confirmation].
  3. Select [Check Pattern Print] tab.
  4. Select [20104 Black 25% Pattern].
  5. press each setting item button to make print settings.


    the selectable items are as follows.

    setting items choice
    feed tray c1, c2, c3, c4, Paper Tray
    available paper sizes a4, letter

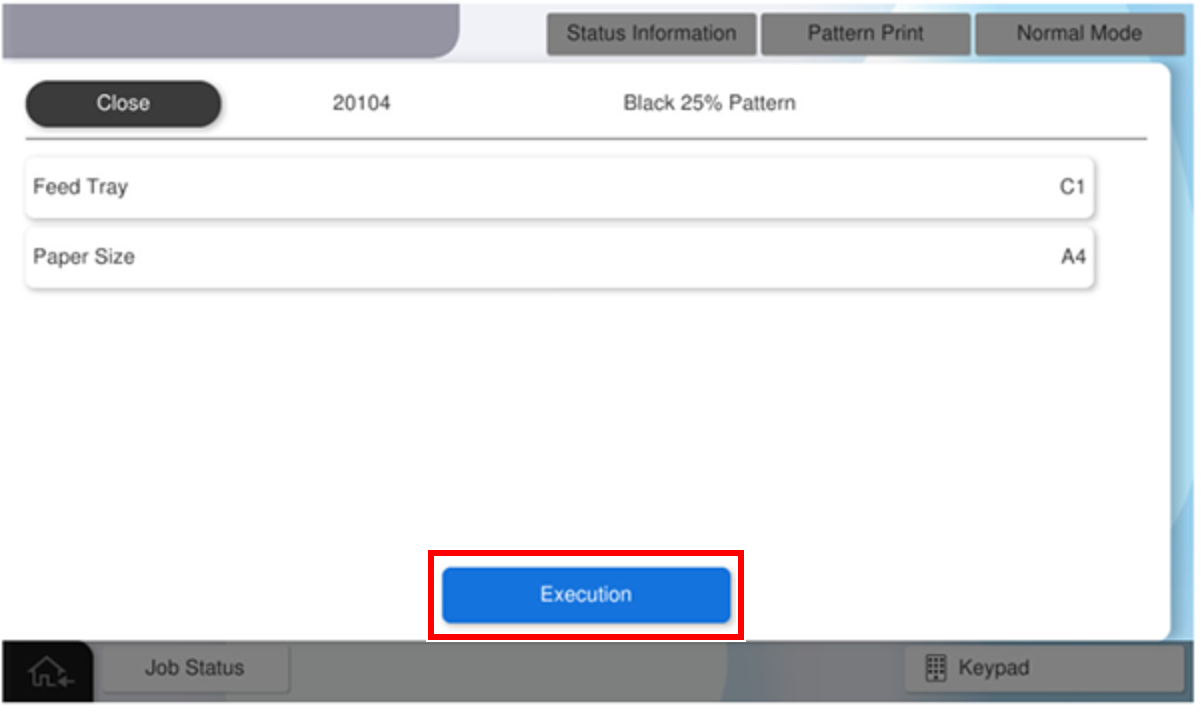

  6. Press [Execution].
