Wiper Unit

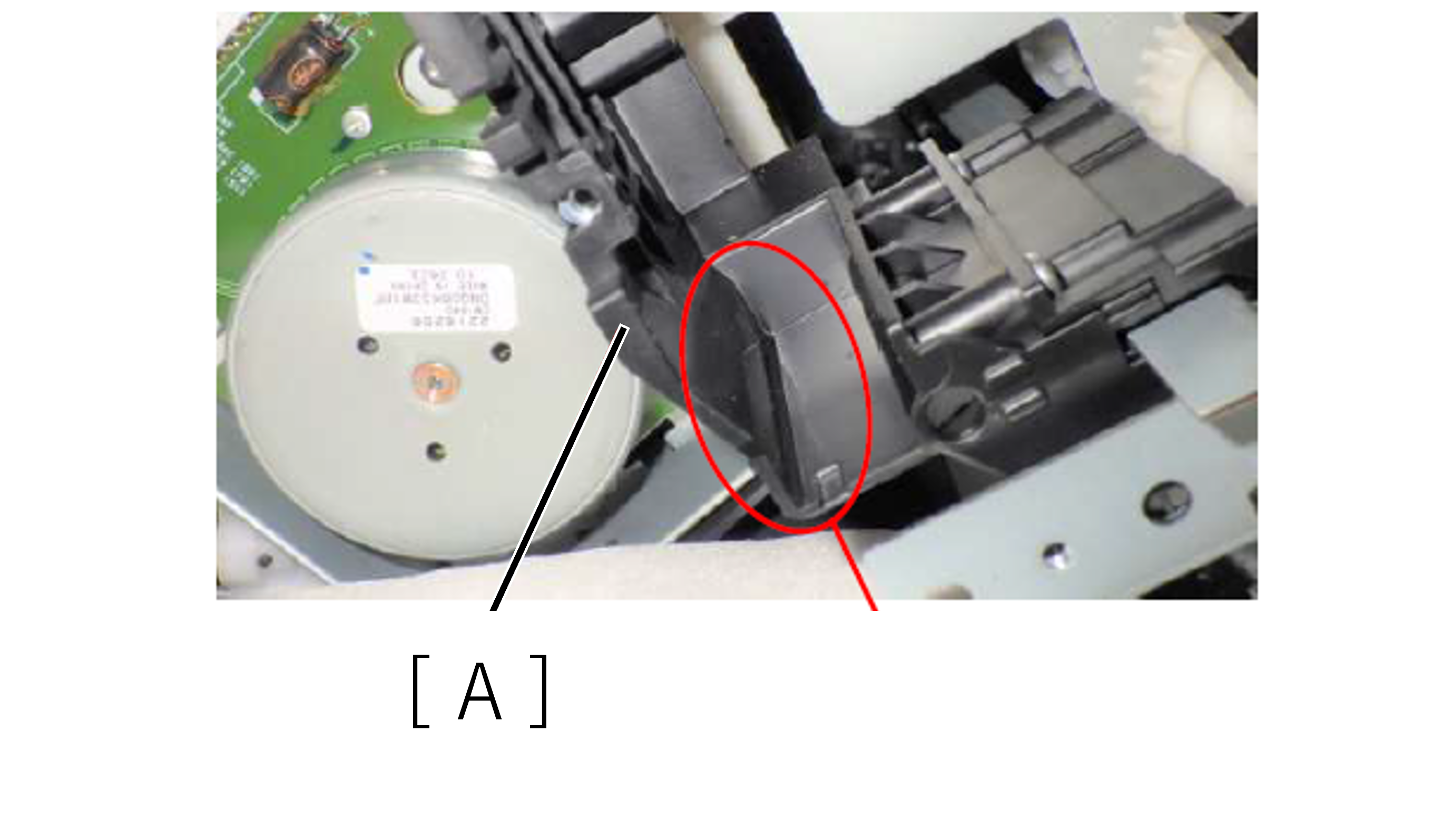

Wiper Unit When replacing the wiper, ink may adhere to the plastic part (A) that secures the wiper.
Check the presence or absence of ink adhesion, and wipe off with BENCOT, etc., if necessary.
