ADF / Scanner mechanism
ADF mechanism

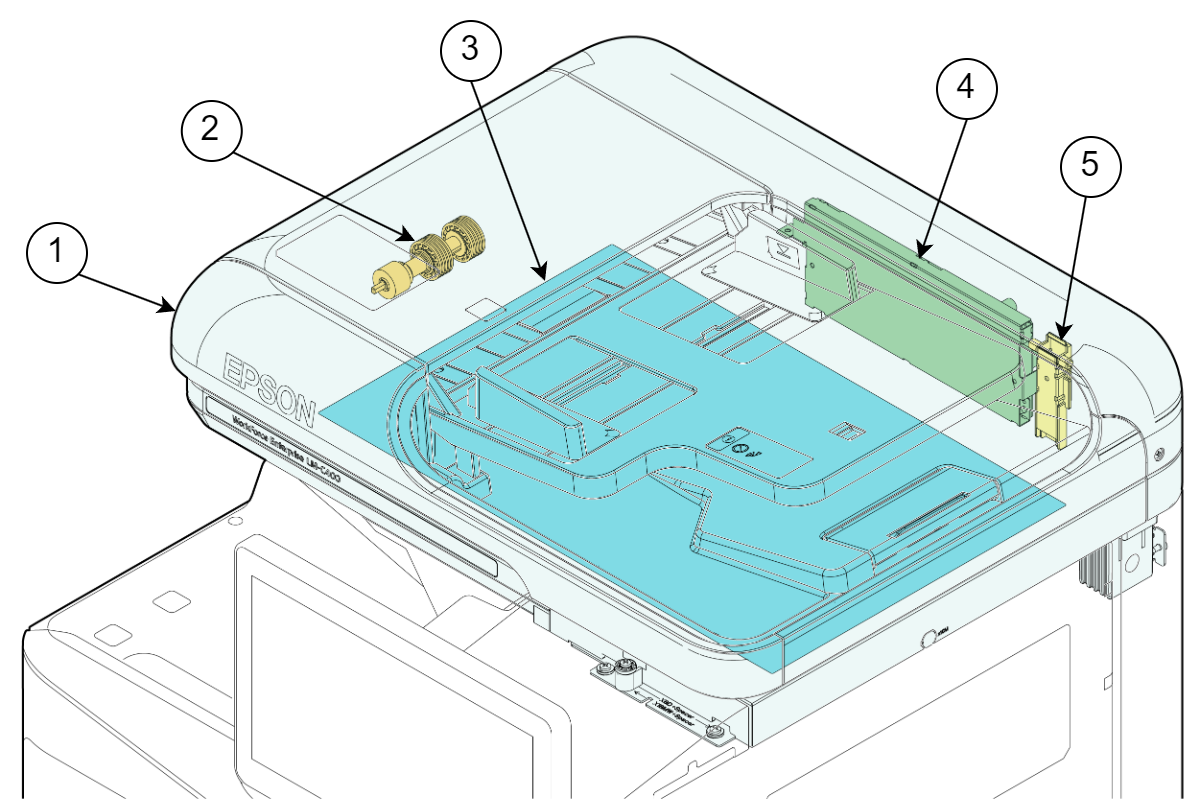

| No. | Name |
|---|---|
| 1 | ADF/SCN Unit |
2 |
ADF Retard Roller |
| 3 | Document Mat Assy |
| 4 | ADF Main Board Assy |
| 5 | ADF Holder Harness Right |

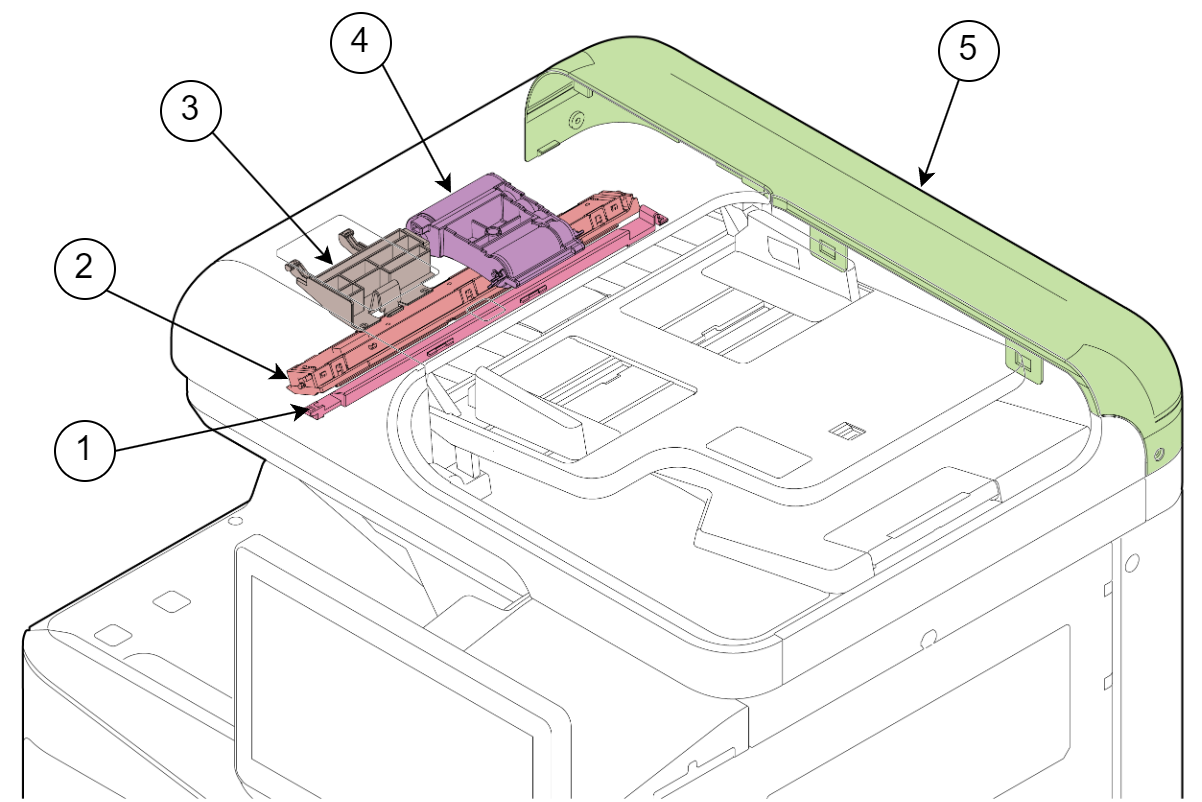

| No. | Name |
|---|---|
| 1 | ADF CIS Module Cover |
2 |
ADF CIS Module |
| 3 | ADF Pickup Roller Cover |
| 4 | ADF Pickup Roller |
| 5 | ADF Rear Cover |
SCN Mechanism

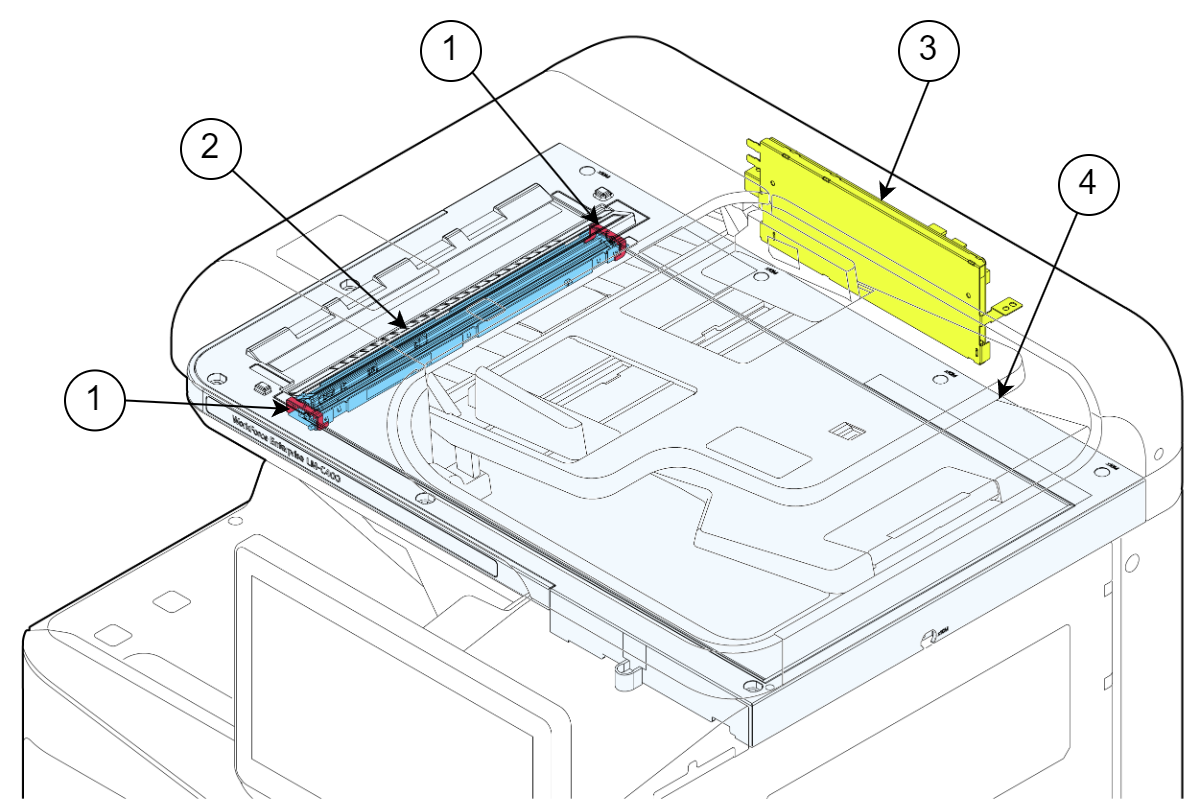

| No. | Name |
|---|---|
| 1 | CISM Spacers (x2) |
2 |
SCN CIS Module |
| 3 | SCN Main Board Assy |
| 4 | SCN Upper Case |
