C3 Cassette
 Check Point / チェックポイント |
When replacing this part, you need to run the menu from the service support mode before replacing it. |

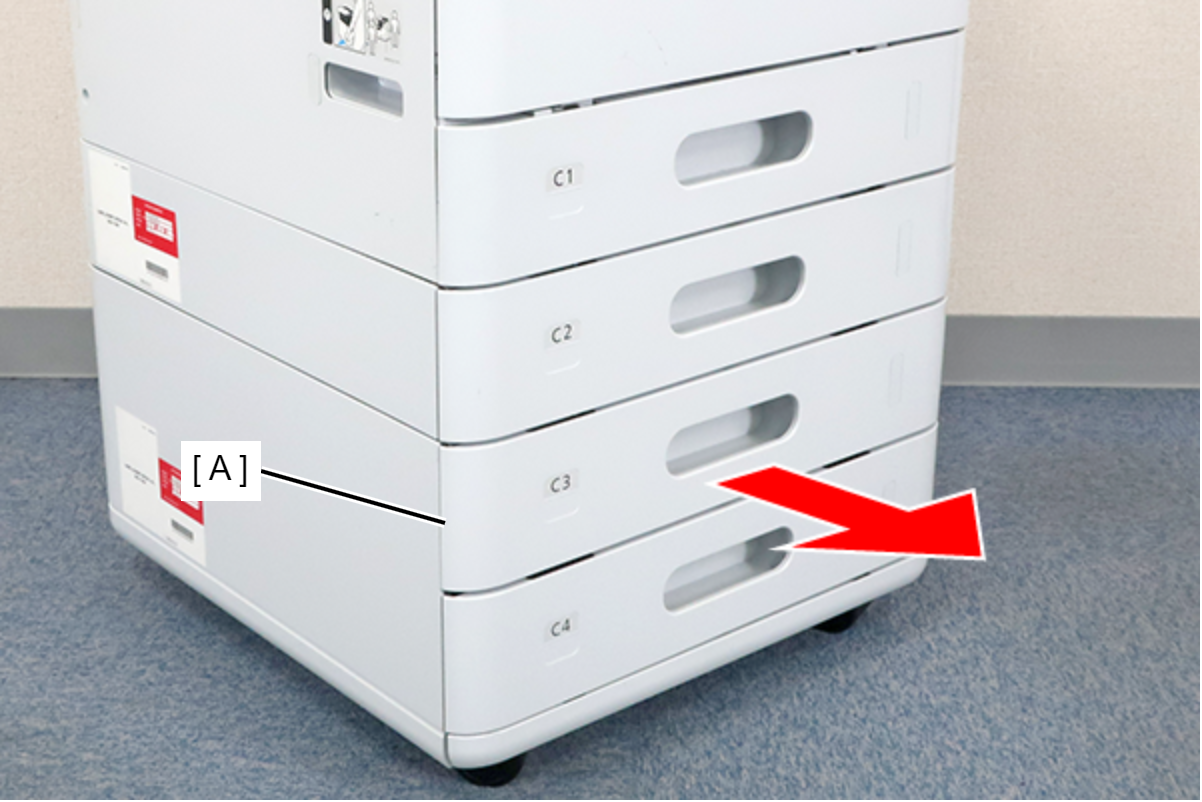

- Remove the C3 cassette (A).
Assembly / 組み立てThe corresponding cassette can be replaced with another cassette.
In that case, follow the steps below.
- Loosen the two screws on the dial (A) and align the groove on the bearing (B) with the dowel on the dial (A).
- Replace the label (A) on the cassette.
- Loosen the two screws on the dial (A) and align the groove on the bearing (B) with the dowel on the dial (A).
| Check Point / チェックポイント |
After replacing this part, you need to run the menu from the service support mode. (If you ran the Before-replacement menu before replacing the part, it will start automatically when you turn the power on.) |
