# PW sensor unit

1. Open the right door unit (A).




   Assembly / 組み立て

   When closing the right door unit, it may not close due to interference with the tumbler (A) that was tilted toward the front when other parts were repaired. If the right door unit does not close, check the position of the tumbler, and if it is protruding toward the front, fit the tip of the tumbler plate (C) into the hole (B) in the main unit.

2. Raise the Guide PF Inner (A) and push it in the direction of the arrow to release the dowel, then remove the Guide PF Inner.




   Assembly / 組み立て

   Put the shaft (A) on the inward side of the lever (B) and attach it.

3. Pull out the tab of the Tumbler (A) from the hole, then raise the Tumbler.

4. Remove the 2 screws that secure the Guide PF Inner Lever Assy (A).


   • : 3x8M
5. Remove the dowel, and remove the Guide PF Inner Lever Assy (A).






   Assembly / 組み立て

   Be careful not to let the C1 Pickup Unit cable (A) get caught between components. Before installing the Guide PF Inner Lever Assy (B), be sure to put protruding cables into the C1 Pickup Unit.

6. Pinch the tab and pull it in the direction of the arrow to remove the C-ring (A).

7. Remove the bearing (A).

8. Remove the Tumbler (A) in the direction of the arrow.




   Assembly / 組み立て

   Align the pin (B) of the shaft with the groove (A) of the gear and install.

9. Remove the C1 cassette (A).

10. Remove the 3 screws and remove the Paper Guide Lower (A).


    • : 3x8M
    • : 3x5D
11. Release the cable from the clamp (A) and disconnect the cable from the 2 relay connectors (B).




    Assembly / 組み立て

    Attach the cable ties (A) so that it is disposed toward the back side of the clamp (B).

12. Remove the 5 screws, and remove the C1 Pickup Unit (A).

    • : 3x8M
    C1 Pickup Unit (A)

13. Open the Front Cover (A).

14. Remove the Maintenance Box (A).

15. Remove the 7 screws and remove the Front Inner Cover (A).


    • : 3x8D
    • : 3x8D/BK

    Assembly / 組み立て

    Insert the protrusion (A) of the Front Inner Cover into the hole (B) of the main unit and install.

    Note / 補足

    If the wireless LAN unit (A) is installed, remove it.

16. Remove the cable from the relay connector (A), remove the 2 screws, and remove the Shutter Release Solenoid (B).


    • : 3x8D

    Assembly / 組み立て

    Install the Shutter Release Solenoid so that its lever (A) is closer to you than the lever (B) of Resit Roller Assy. OK NG

17. Remove 1 screw and remove the Connector Cover Belt Front (A).

    • : 3x6D
18. Remove the screw and remove the Connector Cover PW (A).


    • : 3x8M

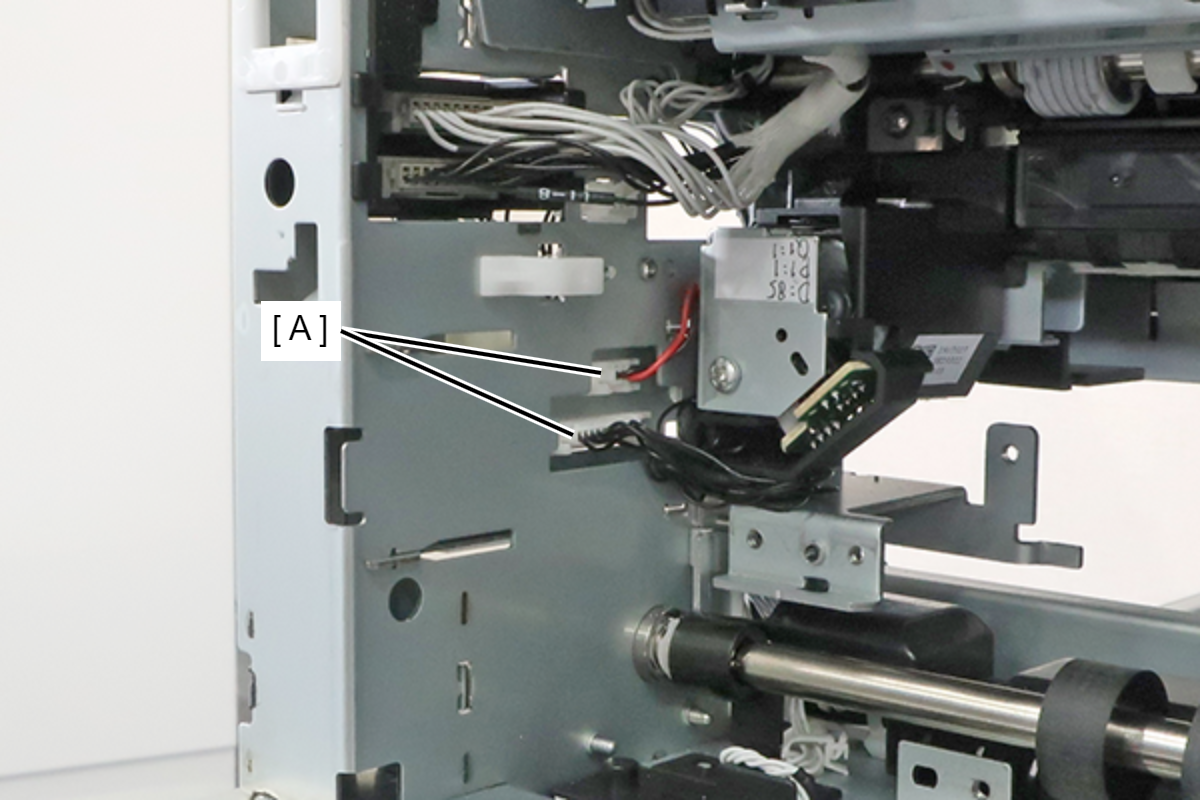

19. Disconnect the cables from the 2 connectors (A).




    Assembly / 組み立て

    When assembling, be careful not to insert the connectors halfway (especially the upper connector).

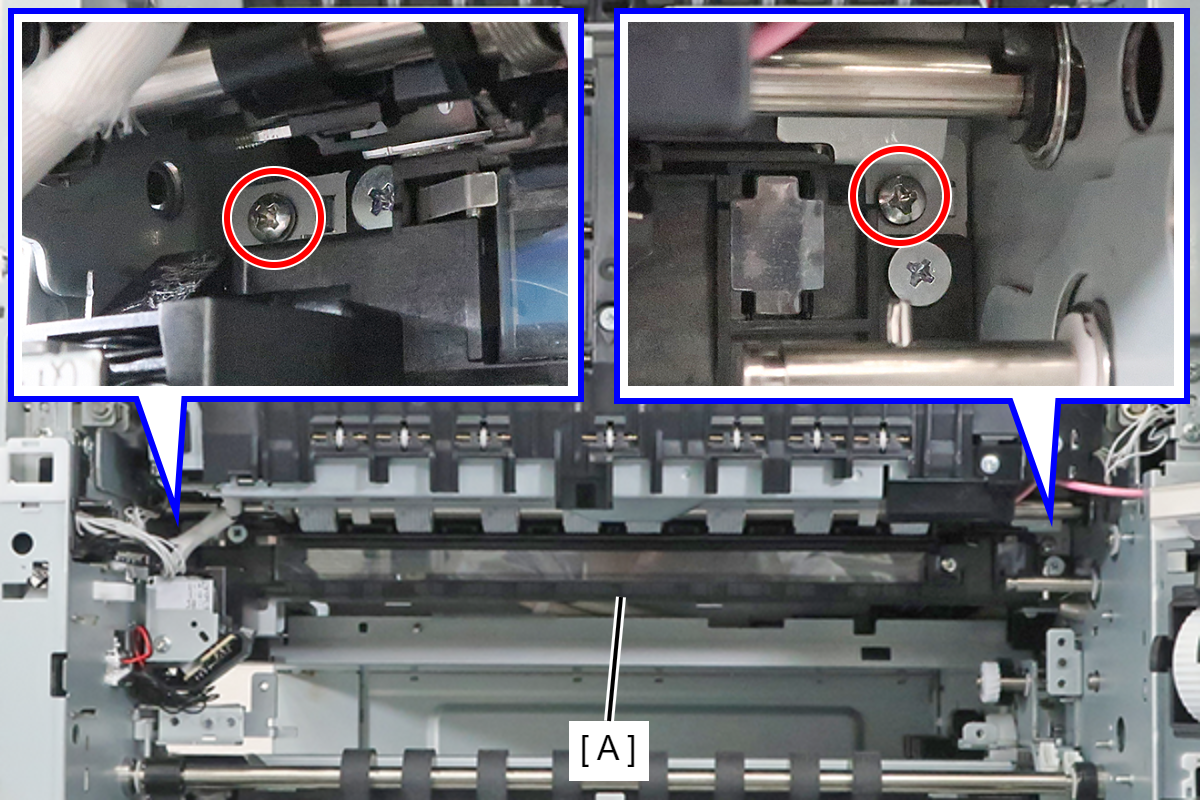

20. Remove the 2 screws for secure the PW Sensor Unit (A).


    • : 3x8M

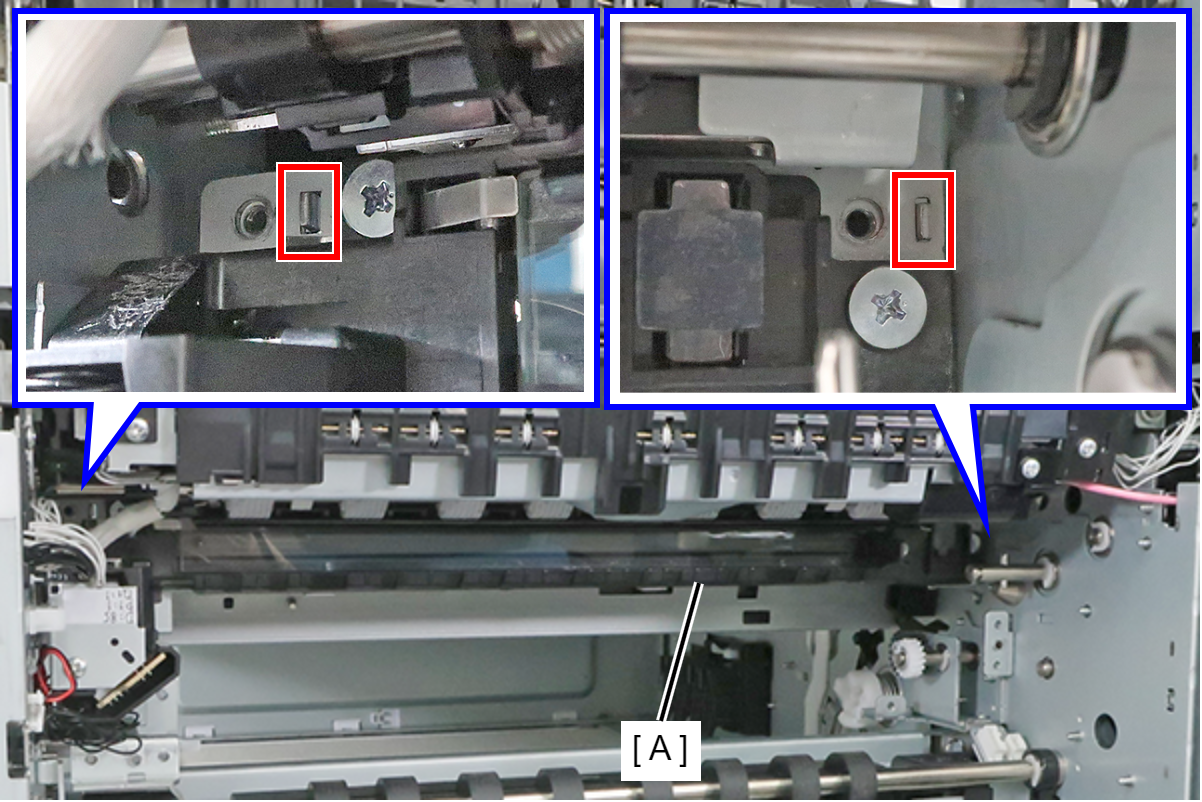

21. While raising the PW Sensor Unit (A) a little, pull it out toward the front to disengage it from the 2 hooks, then remove the PW Sensor Unit.

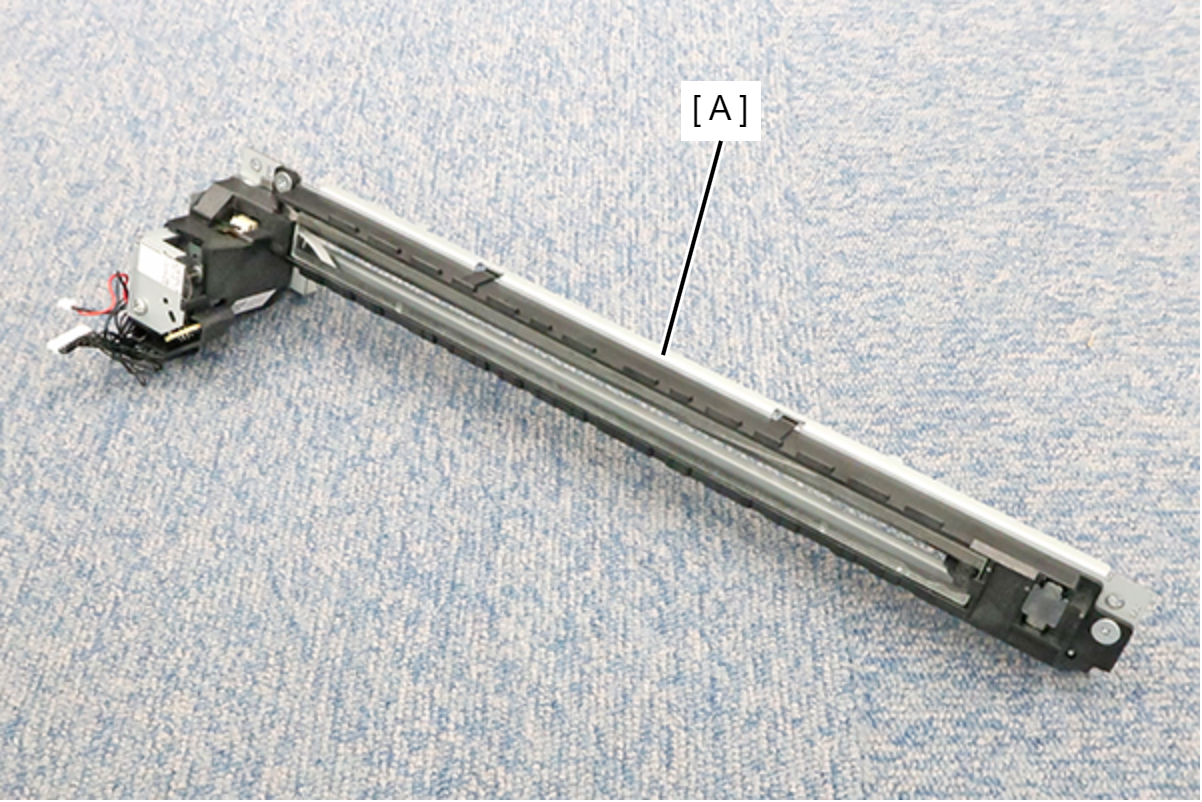

    PW sensor unit (A)
