# C3 Pickup Roller Clutch

1. Remove the 4 screws fixing the C3C4 Additional Rear Cover (A).


   • : 3x8D
2. While pulling the C3 and C4 Additional Rear Covers (A) out in the direction of the red arrow, rotate it in the direction of the blue arrow to disengage the 3 hooks, then remove the C3 and C4 Additional Rear Covers.

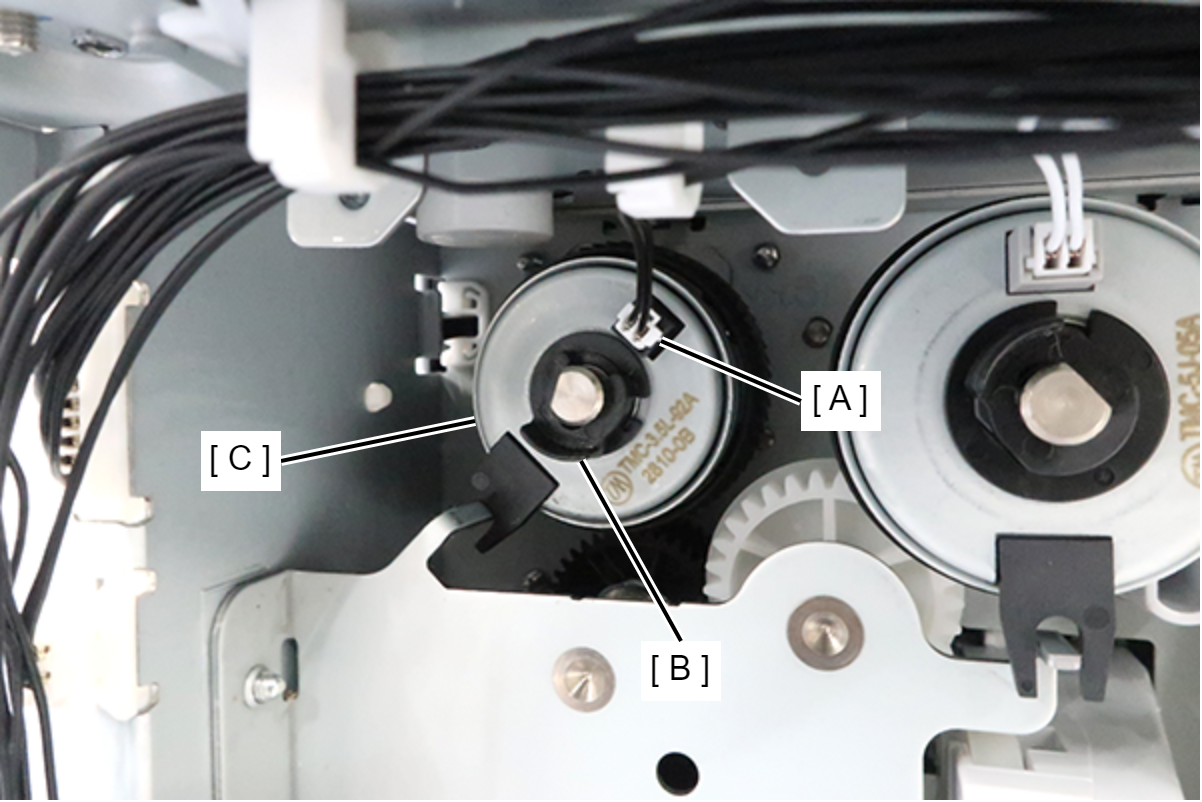

3. Remove the cable from the connector (A), remove the C-ring (B), and the C3 Pickup Clutch Right (C).
