# C1 - C4 Pickup Roller

Position

1. Slide the guide cover (A) in the direction of the arrow.



   Assembly / 組み立て

   After replacing the paper feed roller, return the guide cover.

2. While pushing the hook (A), remove the C1 pickup roller (B) and C1 separation roller (C) in the direction of the arrow.




   Check Point / チェックポイント

   The paper feed roller (B) and separation roller (C) are different in shape and color. (The paper feed roller is gray and the separation roller is white.)

   Assembly / 組み立て

   When installing the rollers, paper dust from the pickup unit may adhere to the rollers. If paper dust is present in area (A), clean it with a cleaning stick before installing the rollers. Align the protrusion (A) of the gear with the groove (B) of the pickup roller.

3. Open the right door unit (A).


4. Slide the lock lever (A) in the direction of the arrow.



   Assembly / 組み立て

   After replacing the retard roller, return the lock lever.

5. While pushing the hook (A), remove the C1 retard roller (B) in the direction of the arrow.




   Check Point / チェックポイント

   Be sure to replace C1 Pickup Roller, C1 Separation Roller, and C1 Retard Roller with new items as a set.

   Assembly / 組み立て

   When installing the roller, paper dust from the pickup unit may adhere to the roller. If paper dust is present in area (A), clean it with a cleaning stick before installing the roller.

Cleaning method

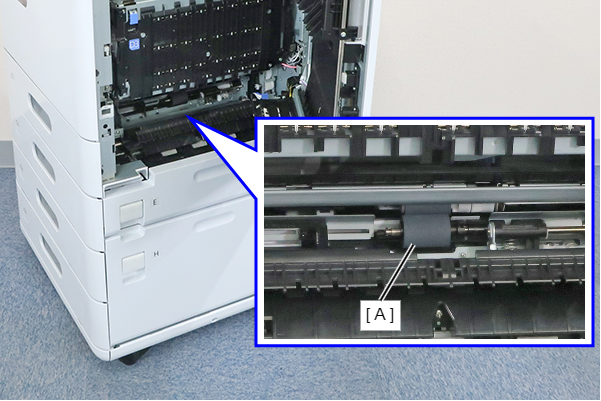

Clean the Pickup Roller (A) using a soft cloth moistened with pure water.

important / 重要

Do not use a dry cloth as it may damage the roller surface.
