Rollers
Overall view
TBD
Belt Rear Drive Star Wheel
Position
- Open the right door unit (A).
Assembly / 組み立てWhen closing the right door unit, it may not close due to interference with the tumbler (A) that was tilted toward the front when other parts were repaired.
If the right door unit does not close, check the position of the tumbler, and if it is protruding toward the front, fit the tip of the tumbler plate (C) into the hole (B) in the main unit.

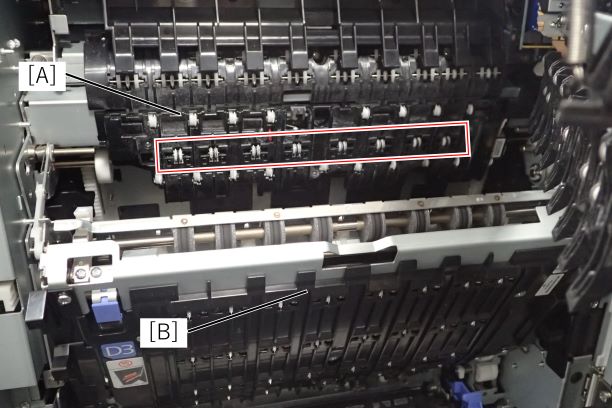

- Pull the lever (A) to open the belt unit (B).
- The belt rear roller drive star wheel on the EJ unit (A) meshes with the drive roller of the belt unit (B).
Cleaning method
Wet the cleaner stick sponge with water and clean in the same direction as the roller rotates.
If the cleaner stick sponge becomes dirty, clean it on the other side.
Reversing roller drive star wheel
Position
- Open the right door unit (A).Assembly / 組み立て
When closing the right door unit, it may not close due to interference with the tumbler (A) that was tilted toward the front when other parts were repaired.
If the right door unit does not close, check the position of the tumbler, and if it is protruding toward the front, fit the tip of the tumbler plate (C) into the hole (B) in the main unit.

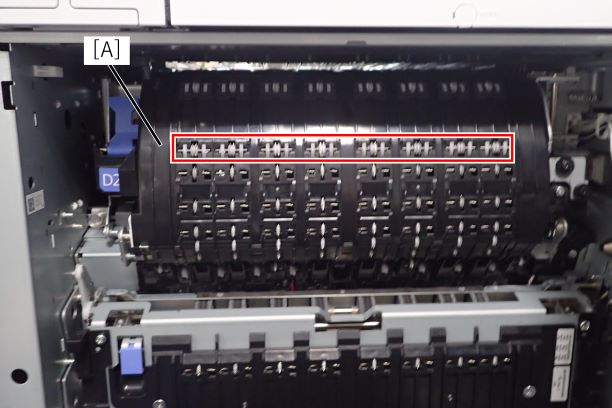

- This is the star wheel roller at the top of the EJ unit (A).
Cleaning method
Wet the cleaner stick sponge with water and clean in the same direction as the roller rotates.
If the cleaner stick sponge becomes dirty, clean it on the other side.
EJ roller drive star wheel
Position

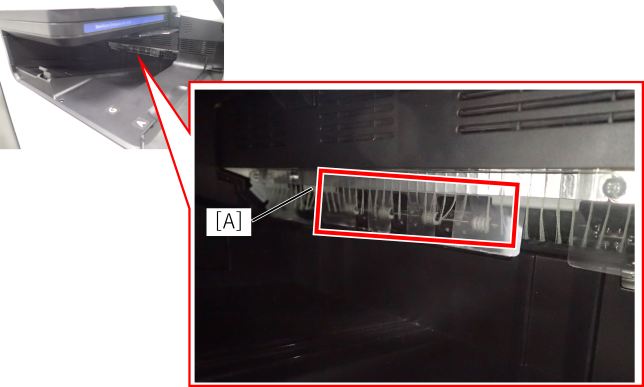

- This is the star wheel roller at the paper output port (A) of the product output tray.
Cleaning method
Wet the cleaner stick sponge with water and clean in the same direction as the roller rotates.
If the cleaner stick sponge becomes dirty, clean it on the other side.
