2011303 Adsorption Check Pattern(3mm margins)

Program No.

Pattern Name

Specifications

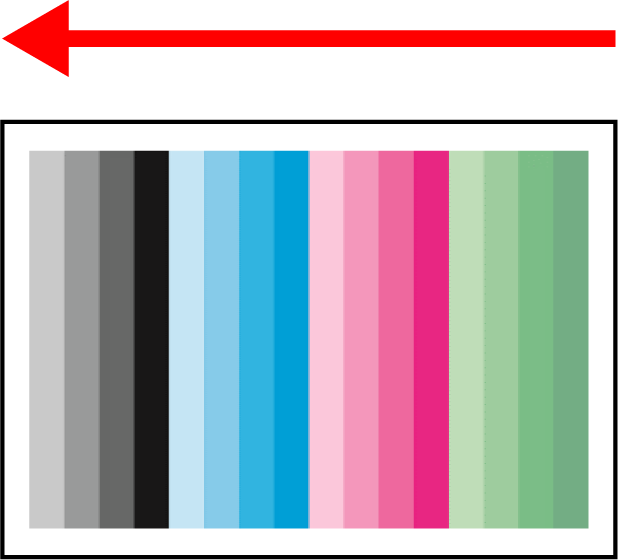

Pattern Image (Paper transport direction: arrow direction)

Target image quality defect

2011303

Adsorption Check Pattern(3mm margins)

  • Pattern outline: Prints a 20105 Adsorption Check pattern paper margin 3mm x 3mm.

  • Paper size: A4/Letter

  • Paper type: Plain paper

  • Number of prints: 1

  • Ruled line misalignment

  • Color shift

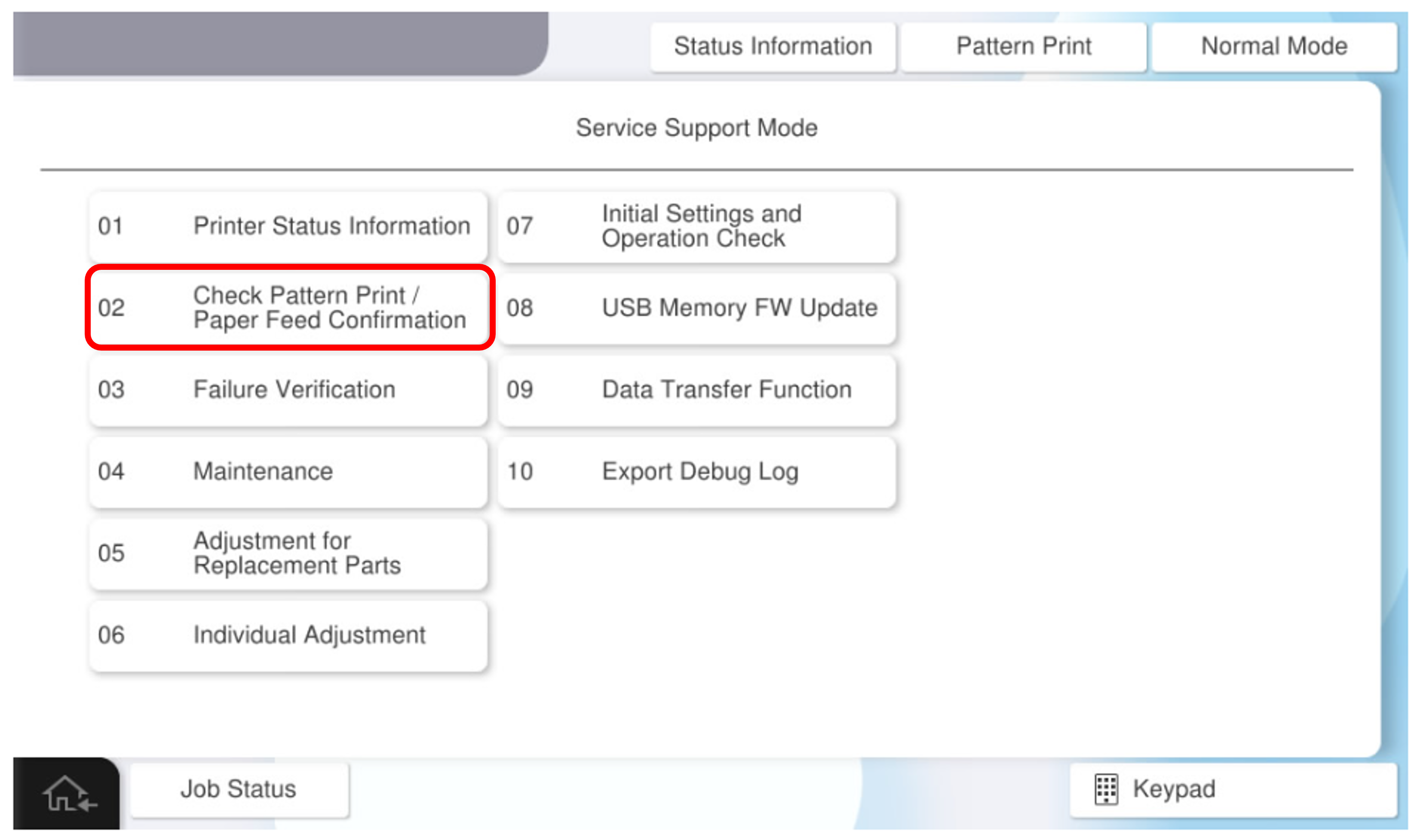

  1. Start service support mode.
  2. Select [02 Check Pattern Print / Paper Feed Confirmation].

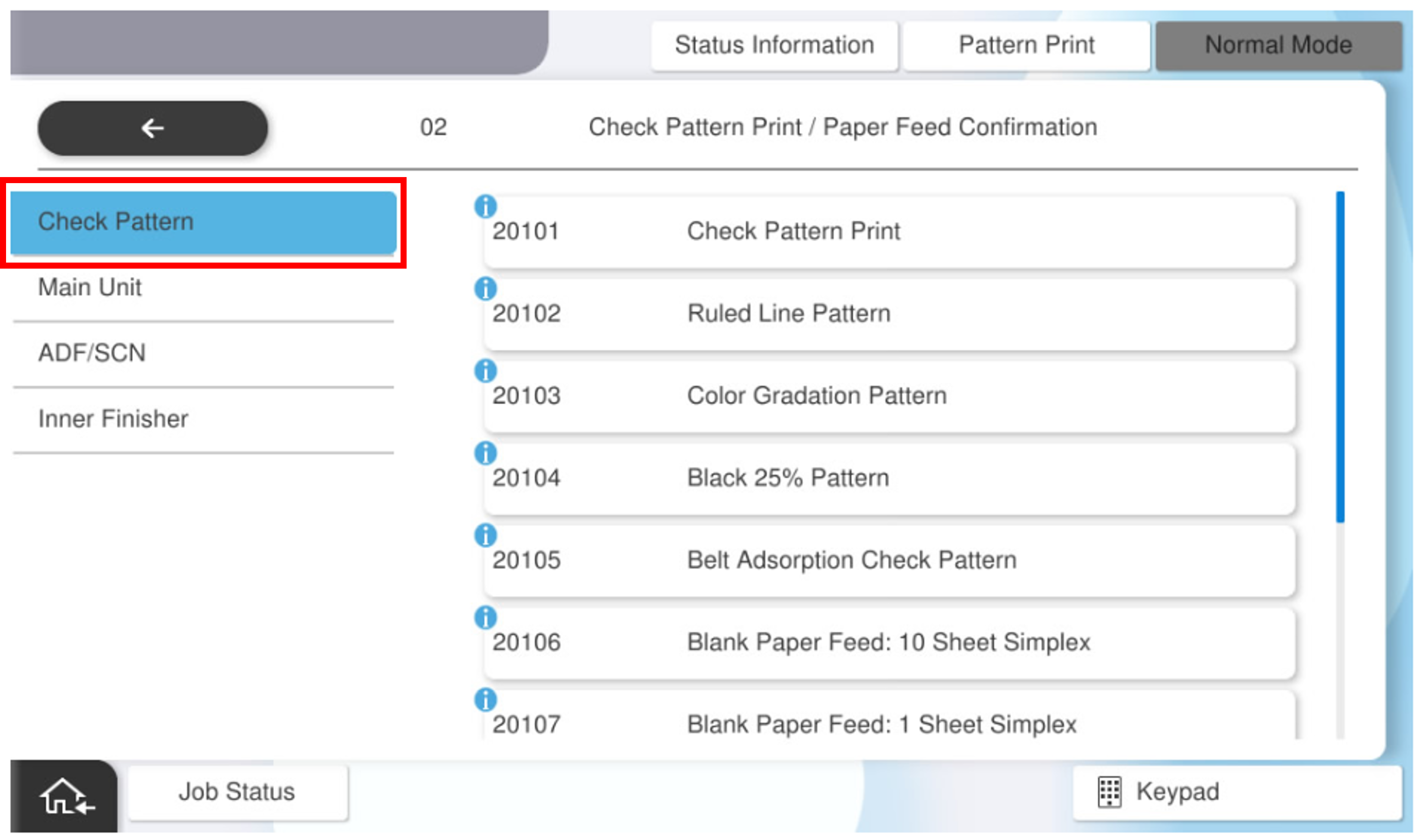

  3. Select [Check Pattern Print] tab.
  4. Select [Adsorption Check Pattern(3mm margins)].

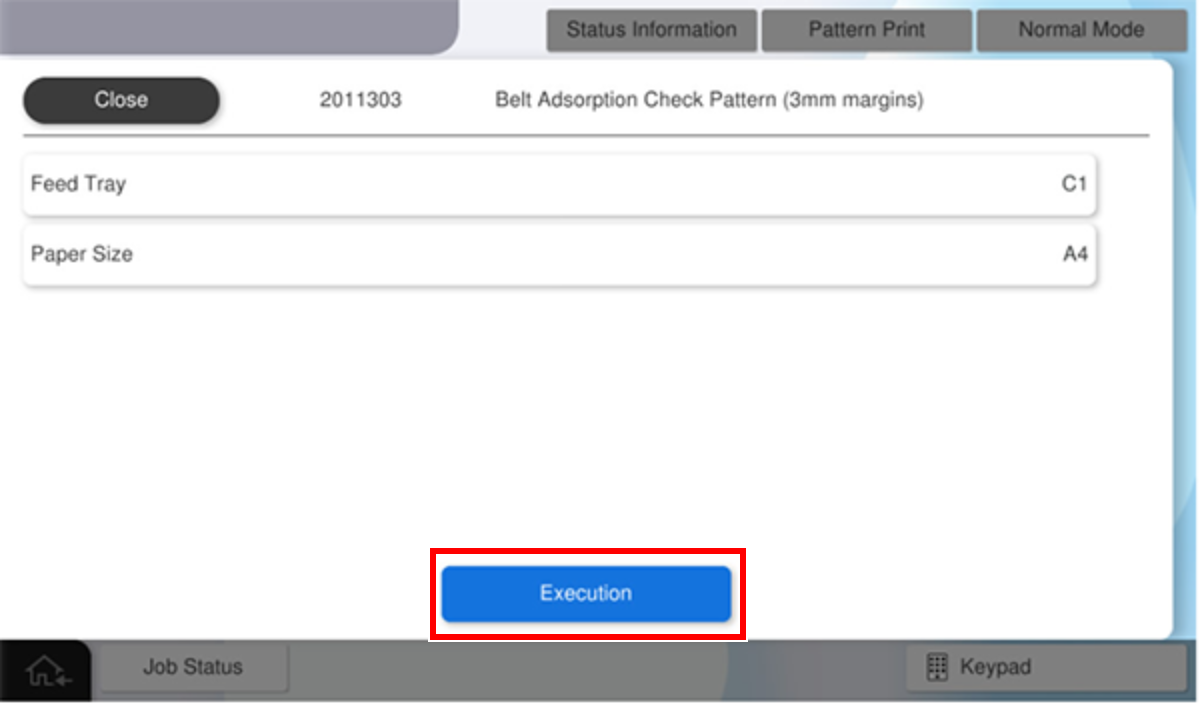

  5. press each setting item button to make print settings.


    the selectable items are as follows.

    program no. pattern name setting items choice
    2011303 adsorption check pattern(3mm margins) feed tray c1, c2, c3, c4, Paper Tray
    available paper sizes a4, letter
  6. Press [Execution].
