# C3C4 Additional left Cover

1. Remove the 4 screws fixing the C3C4 Additional Rear Cover (A).


   • : 3x8D
2. While pulling the C3 and C4 Additional Rear Covers (A) out in the direction of the red arrow, rotate it in the direction of the blue arrow to disengage the 3 hooks, then remove the C3 and C4 Additional Rear Covers.

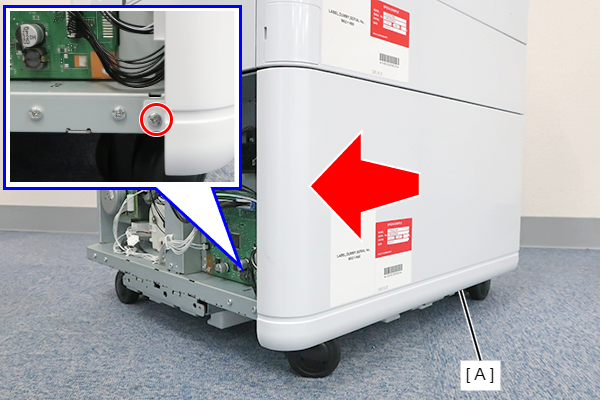

3. Remove the 1 screw and remove the C3C4 Additional left Cover (A).


   • : 3x8D

   Assembly / 組み立て

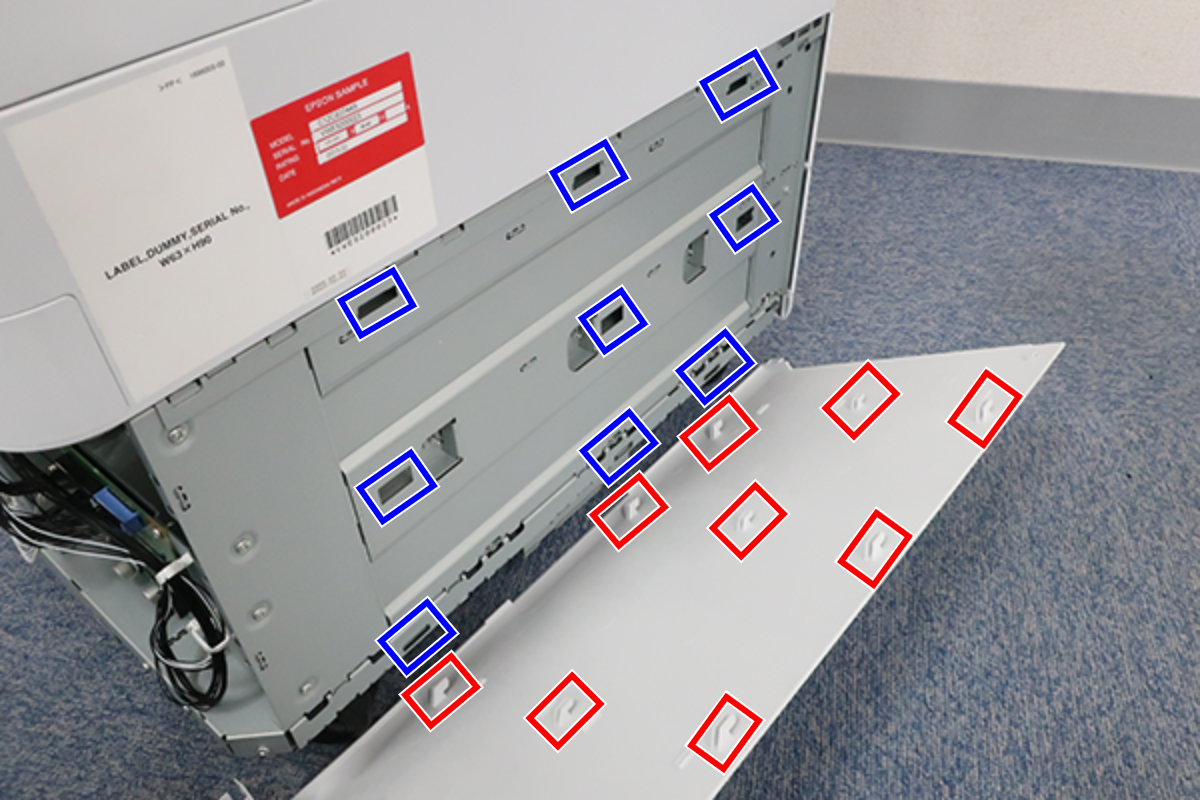

   Align the 9 hooks on the C3C4 Additional left Cover with the holes on the main unit and attach it.
