Wiper Drive Motor Assy

  1. Remove the 3 screws and remove the Right Cover (A).

    • : 3x8D
  2. Remove the 5 screws and pull the rear cover (A) toward to remove it.

    • : 3x8D

    Assembly / 組み立て

    Confirm that the rear cover is not floating. The positioning pin (A) may not fit into the hole (B).
  3. Remove the 5 screws fixing the Main Board Cover (A).

    • : 3x8D


    Assembly / 組み立て

    The screw shown in the figure must be fastened together with the ground wire (A).

    When installing the Main Board Cover, hold the center part with your hand while tightening the screws to prevent the cover from lifting.
  4. Lift the main board cover (A) slightly to release the dowel (B) and open the main board cover (A).


    Note / 補足

    The Main Board Cover (A) can be completely removed by lifting it in the open position shown above.
  5. Disconnect the cables from the connectors (B) (CN3/CN4/CN6/CN13) of the MCU Board (A), and remove the screw. Remove the clamp (C).

    • : 3x8D
  6. Hang the protrusion of the MCU Wiring Rail (A) on the Wire Hook (B), and withdraw it.


    Assembly / 組み立て

    Engage the hook (A) of the MCU Wiring Rail in the hole (B) of the Board Box and install.
  7. Disconnect the cables from the main board connector (A), the MCU board connectors (B) and release from clamp (C).
  8. Disconnect the cables (CN5/CN10/CN11/CN12/CN504) from the connector (B) of the MCU Board (A), and release the from the 3 clamps (C).
  9. Remove the 2 screws, slightly lift the board box (A) to release the hook.

    • : 4x8D
  10. Open the Board Box (A), and fix with the Wire Hook (B).


    Caution / 注意

    Be careful not to close the Board Box with the Wire Hook fixed in place.
  11. Remove 3 screws and remove the I/F Slot Inlet Assy (A).

    • : 3x8D
    Assembly / 組み立て

    The screw shown in the figure must be fastened together with the ground wire (A).
  12. Remove the cable from the connector (A) and remove the I/F Slot Inlet Assy (B).

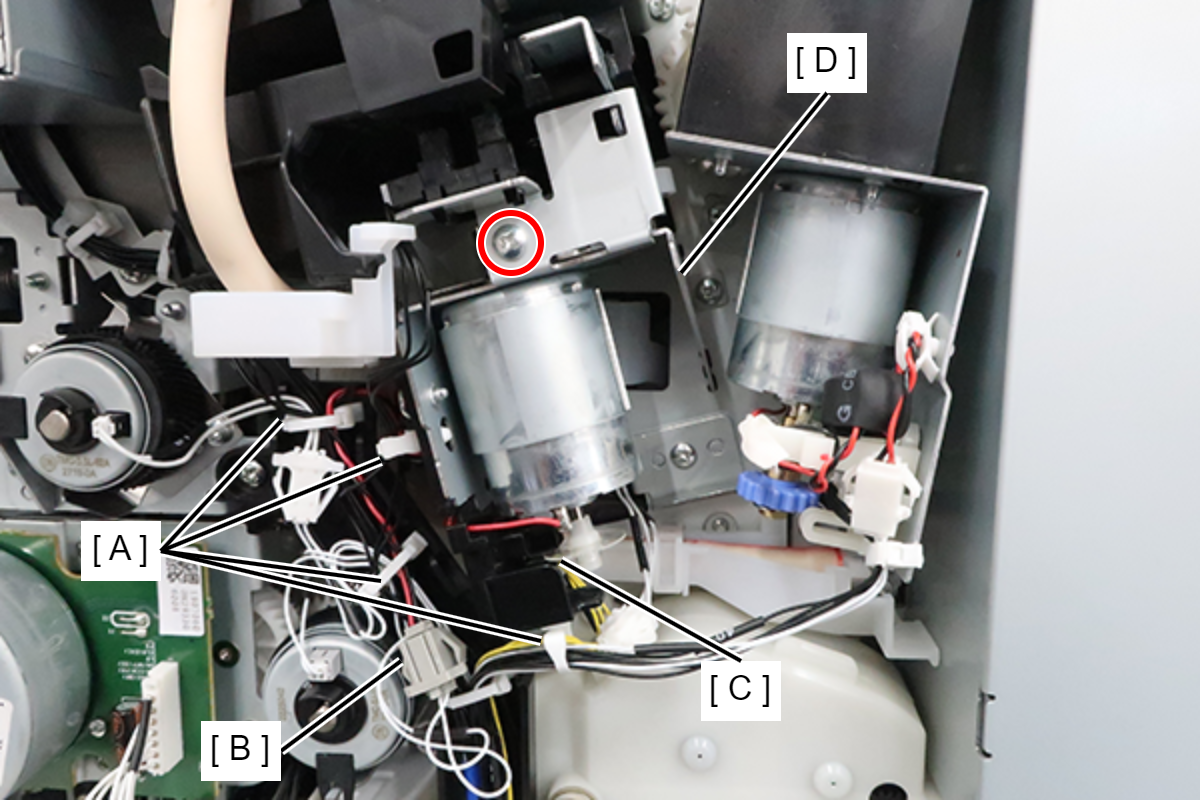

  13. Release the cable from the clamp (A) and disconnect the cable from the 4 relay connectors (B) and connectors (C).
  14. Remove 1 screw and rotate the wiper drive motor Assy (D) in the direction of the arrow to remove it.

    • : 3x8D
    Assembly / 組み立て

    When installing the wiper drive motor Assy, make sure that the encoder does not come off the holder.
