20103 Gradation Pattern

Program No.

Pattern Name

Specifications

Pattern Image
(Paper transport direction: arrow direction)

Target image quality defect

20103

Color Gradation Pattern
  • Pattern outline: 4 gradation patterns
  • Paper size: A4/Letter

  • Paper type: Plain paper

  • Number of prints: 1

  • White or dark lines

  • White or dark smudges

  • Color banding

  • Smeared printout 1 (paper is rubbed against head or rollers)

  • Cockling

  • Wrinkling of paper

  • Blank pages print

  • Entirely too dark printout

  • Ripple pattern

  • Strike-through

  • Faint Printout
  1. Start service support mode.

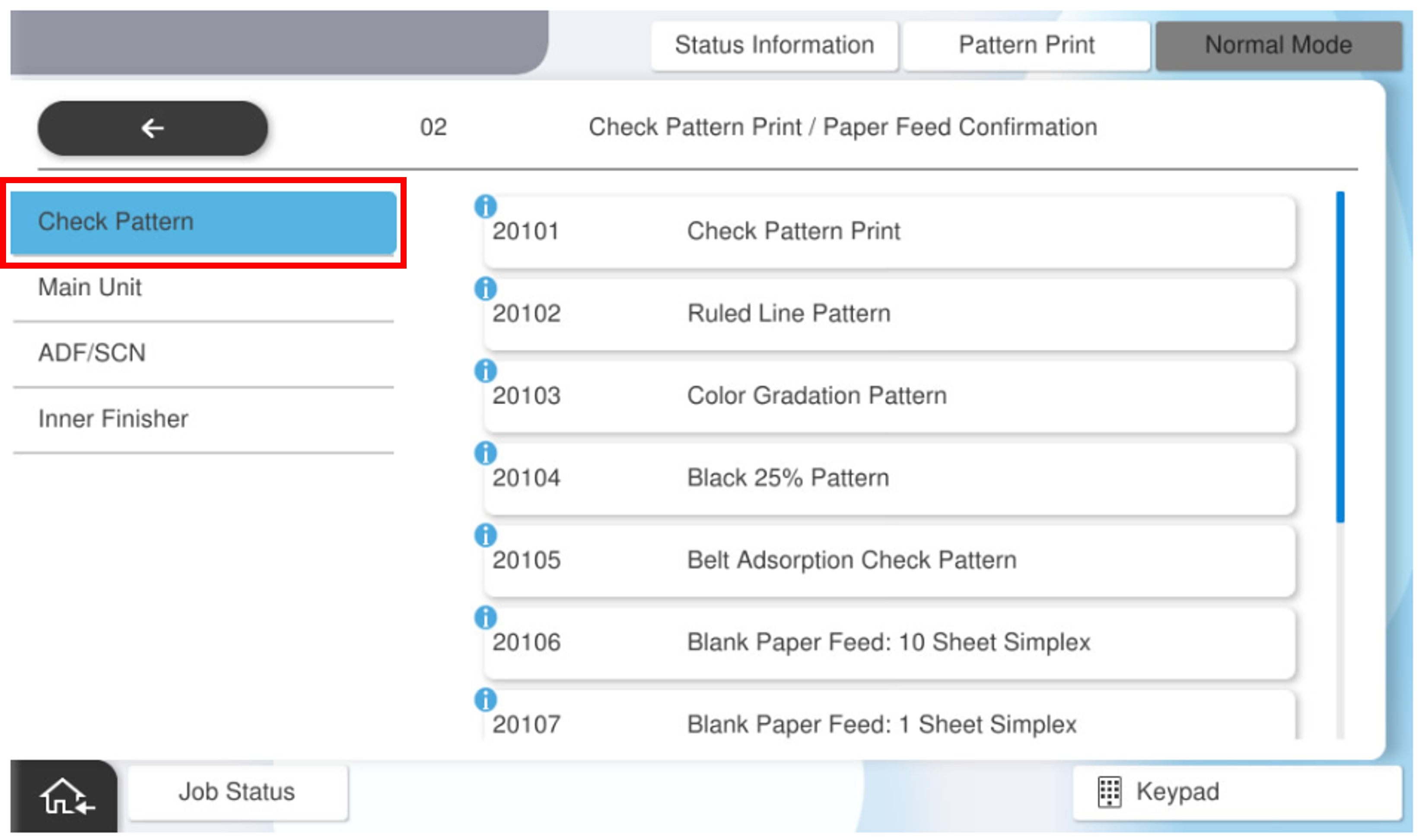

  2. Select [02 Check Pattern Print / Paper Feed Confirmation].
  3. Select [Check Pattern Print] tab.

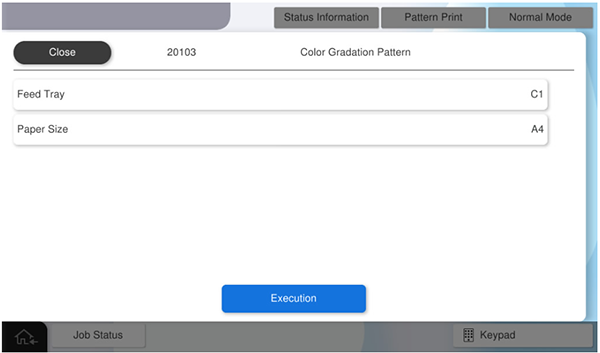

  4. Select [20103 Gradation Pattern].
  5. press each setting item button to make print settings.


    the selectable items are as follows.

    setting items choice
    feed tray c1, c2, c3, c4, Paper Tray
    available paper sizes a4, letter
  6. Press [Execution].
