# Right Door Sensor

1. Open the right door unit (A).




   Assembly / 組み立て

   When closing the right door unit, it may not close due to interference with the tumbler (A) that was tilted toward the front when other parts were repaired. If the right door unit does not close, check the position of the tumbler, and if it is protruding toward the front, fit the tip of the tumbler plate (C) into the hole (B) in the main unit.

2. Remove the 2 screws and remove the right door absorber pad (A).



   : 3x5D

   Assembly / 組み立て

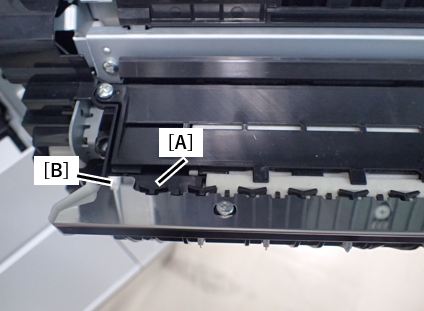

   Install the right door absorber pad (A) so that it is below the right door reflector (B).

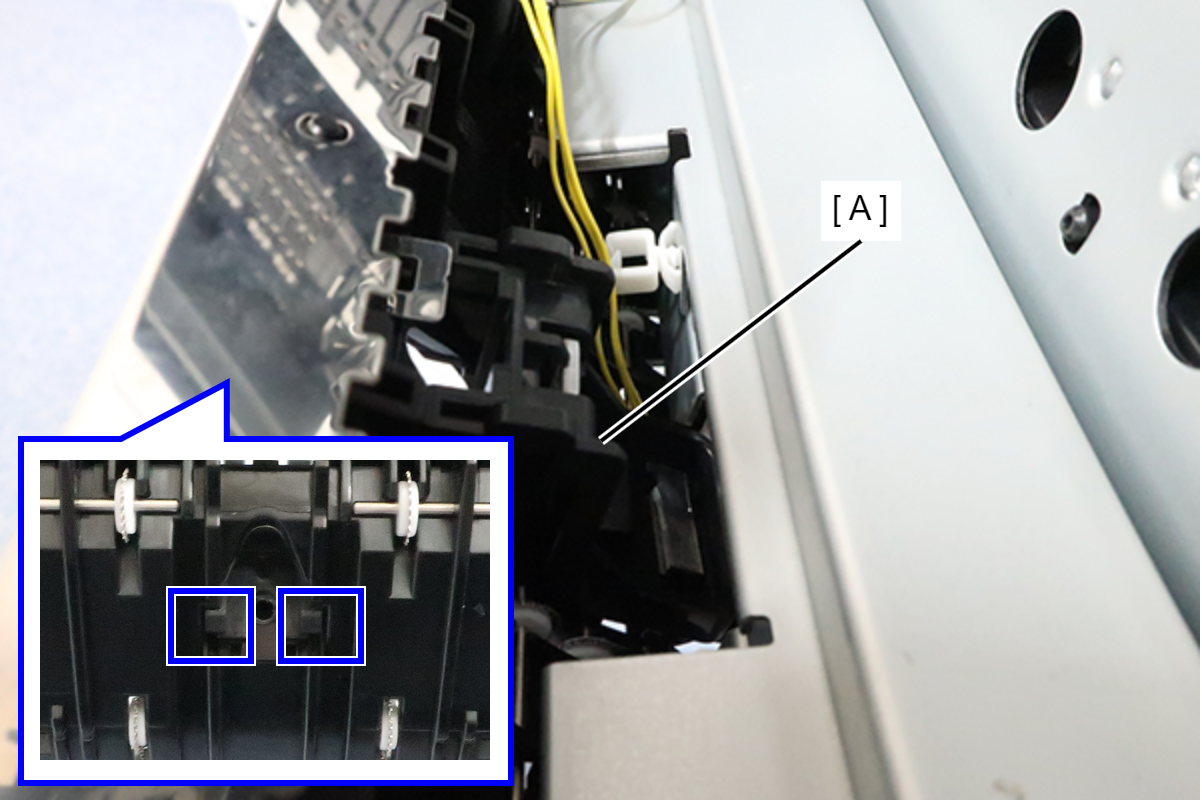

3. Release the 2 hooks and remove the Right Door Sensor (A).

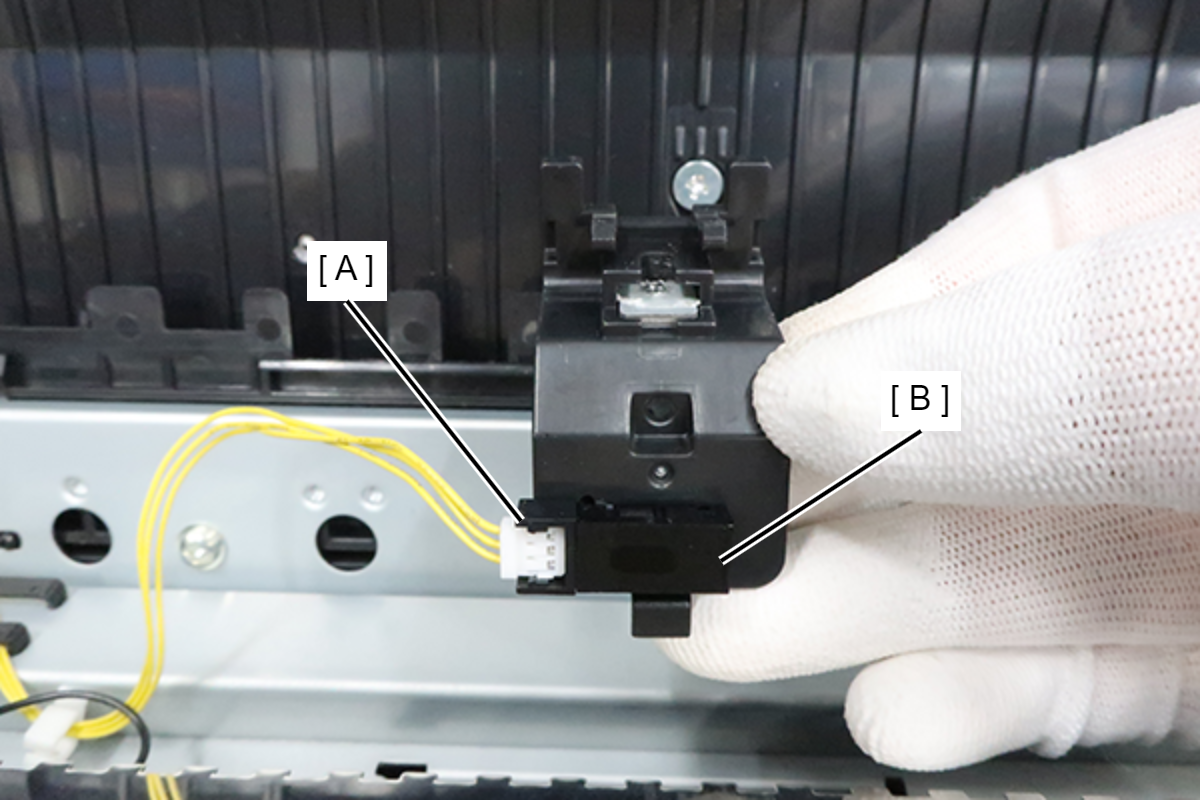

4. Disconnect the cable from the connector (A) and remove the Right Door Sensor (B).
