# Connector Cover Belt Front

1. Open the right door unit (A).




   Assembly / 組み立て

   When closing the right door unit, it may not close due to interference with the tumbler (A) that was tilted toward the front when other parts were repaired. If the right door unit does not close, check the position of the tumbler, and if it is protruding toward the front, fit the tip of the tumbler plate (C) into the hole (B) in the main unit.

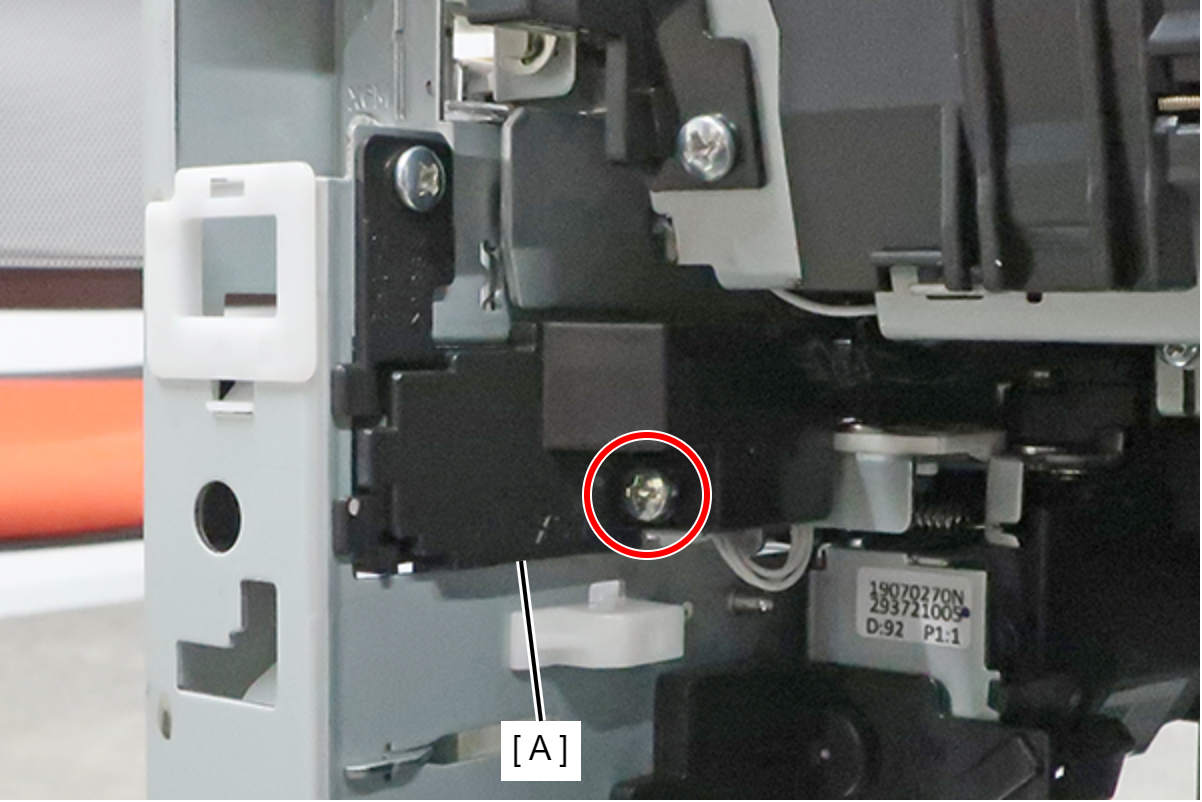

2. Remove 1 screw and remove the Connector Cover Belt Front (A).

   • : 3x6D
