Registration Roller Brake Clutch

  1. Remove the 3 screws and remove the Right Cover (A).

    • : 3x8D
  2. Remove the 5 screws and pull the rear cover (A) toward to remove it.

    • : 3x8D

    Assembly / 組み立て

    Confirm that the rear cover is not floating. The positioning pin (A) may not fit into the hole (B).
  3. Remove 3 screws and remove the I/F Slot Inlet Assy (A).

    • : 3x8D
    Assembly / 組み立て

    The screw shown in the figure must be fastened together with the ground wire (A).
  4. Remove the cable from the connector (A) and remove the I/F Slot Inlet Assy (B).

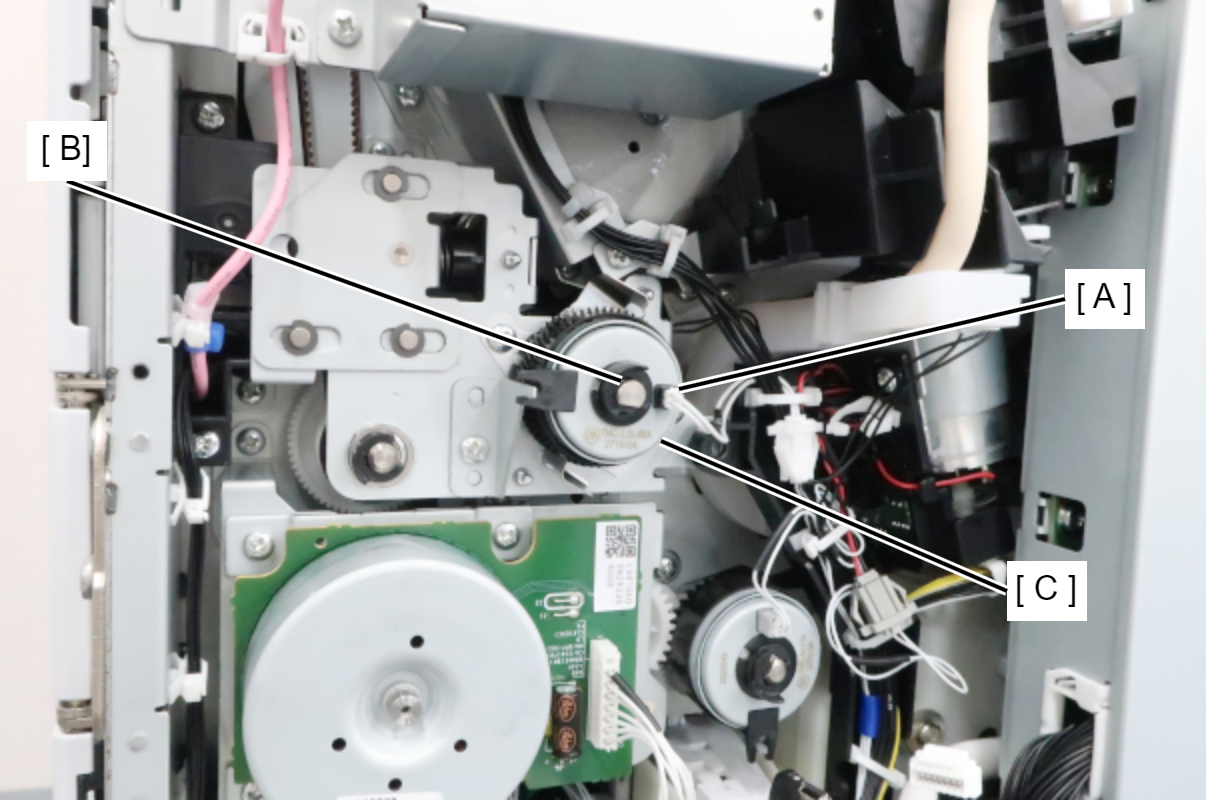

  5. Remove the cable from the connector (A), remove the C-ring (B), and Resist Clutch Rear (C).

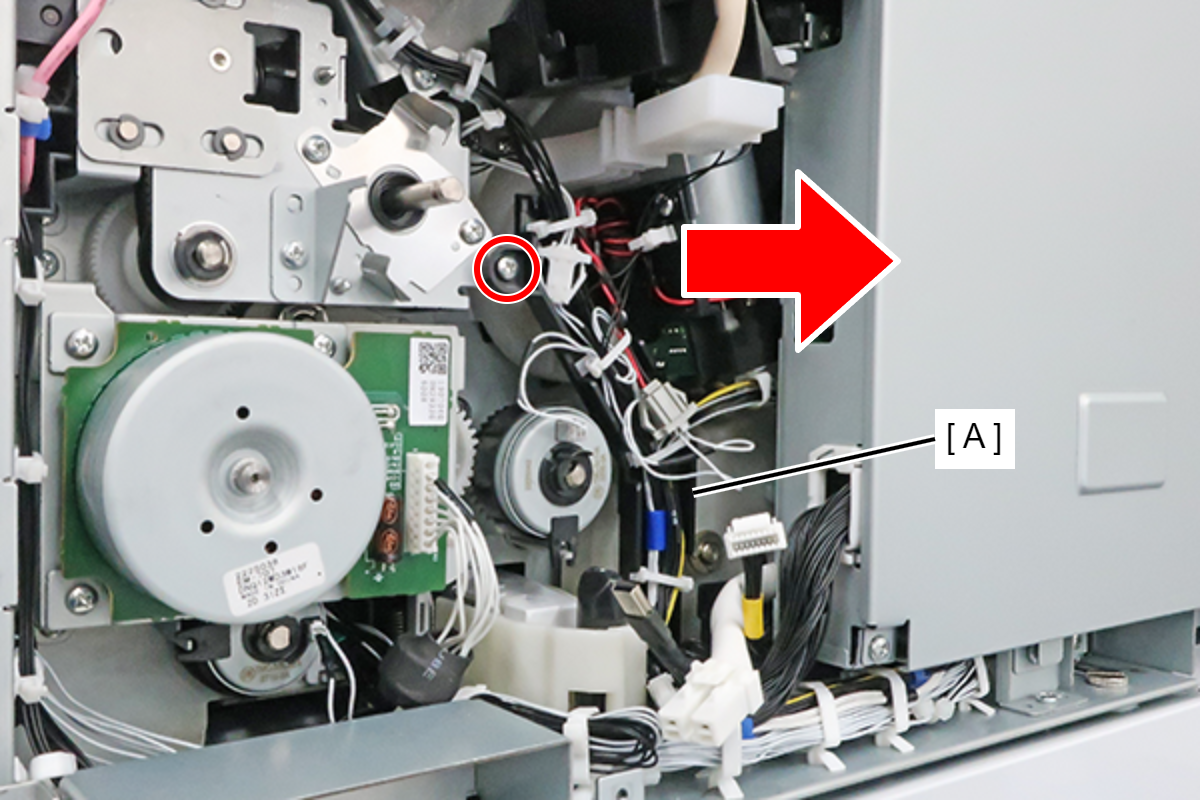

  6. Remove the 1 screw and avoid the Wiring Rail (A) in the direction of the arrow.

    • : 3x8D

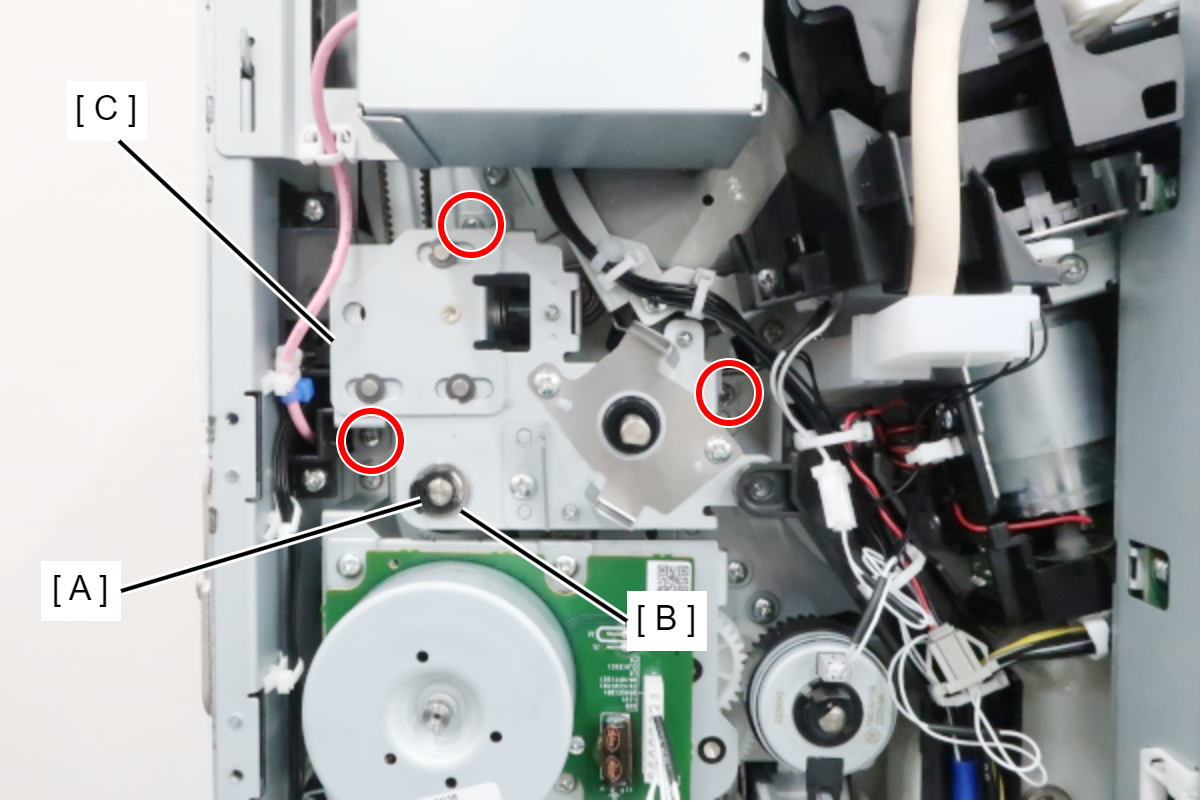

  7. Remove the C-Ring (A) and bearing (B), remove the 3 screws, and then remove the Clutch Retainer Plate (C).

    • : 3x8D

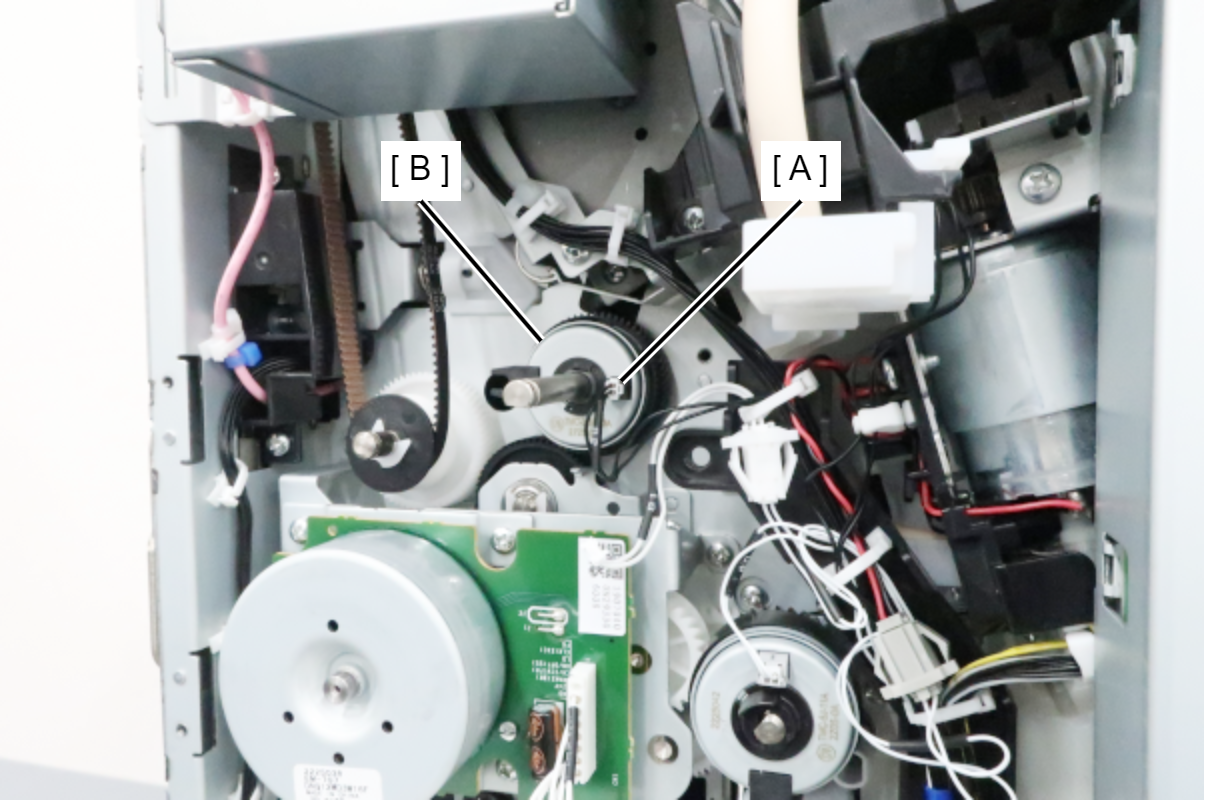

  8. Disconnect the cable from the connector (A), after removing the C-ring, remove the registration roller brake clutch (B).
