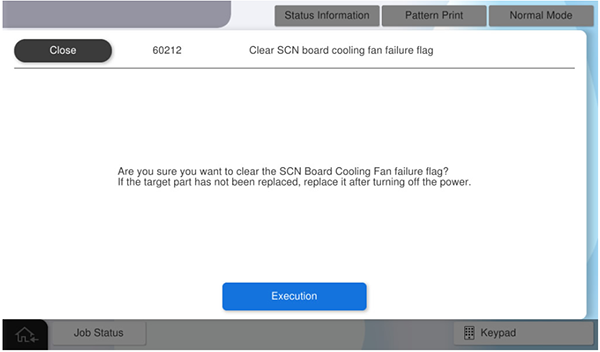

60212 Clear SCN board cooling fan failure flag
- Start service support mode.
- Select [06 Individual Adjustment].
- Select [ADF / SCN] tab.
- Select [60212 Clear SCN board cooling fan failure flag].
- Press [Execution].
