# C4 Guide PF Inner

1. Open the C3C4 Additional Paper Feed Cover (A).

2. Remove the screw and remove the band (A).


   • : 3x8D

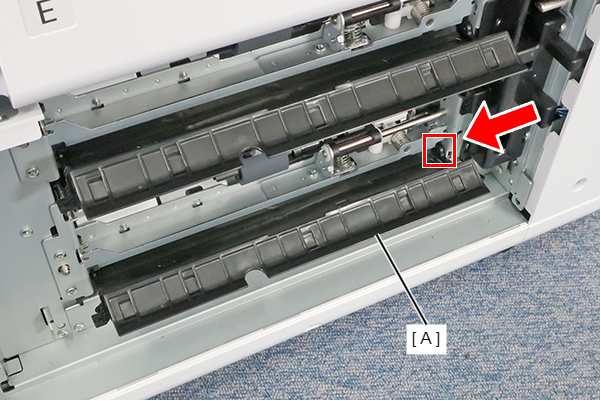

3. Place a tool with a narrow tip such as a flathead screwdriver in the groove, and push it in the direction of the arrow to remove the shat (A) from the frame.

4. Remove the C3 and C4 Additional Paper Feed Covers (A) from the opposite side shaft.

5. Push the shaft (A) in the direction of the arrow to remove it from the frame, and remove the C3 and C4 Additional Paper Feed Covers (B).

6. Press the dowel in the direction of the arrow to release it, and remove the C4 Guide PF Inner (A).
