60206 FB Scan Position Offset
Manually adjust the scanning start position for ADF scanning.
- Main Scan
- Sub Scan
| Setting value name | Input range | Initial value | Amount of change |
|---|---|---|---|
| Main Scan | -16 ~ 16 | 0 | about 0.1 mm |
| Sub Scan | -35 ~ 4 | 0 | about 0.1 mm |
- Start the service support mode.
- Select [06 Individual Adjustment].
- Select the [ADF/SCN] tab.

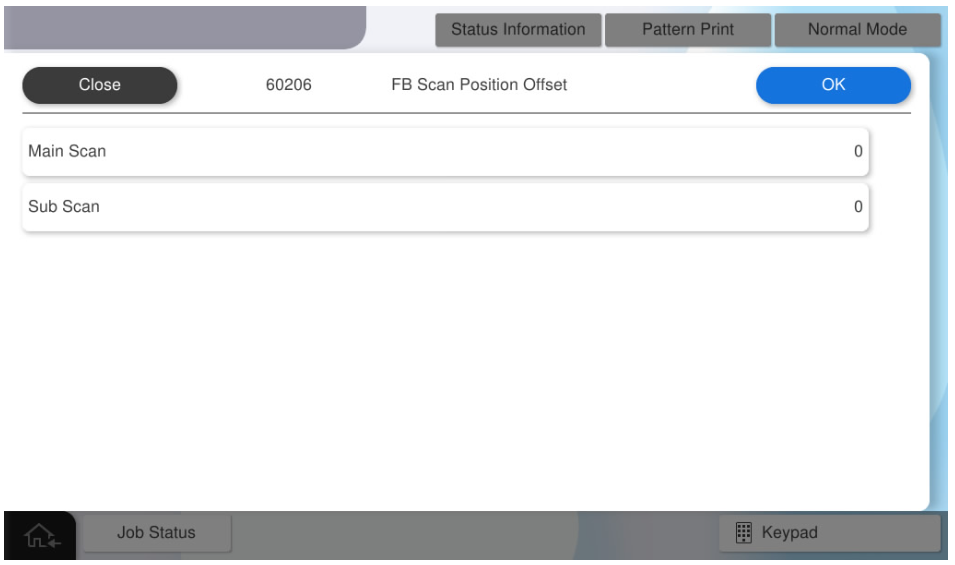

- Select [60206 FB Scan Position Offset].
- Select [Main scan] and [Sub scan], enter any adjustment value, and press [OK].
