User Special Mode starting method

Note / 補足
  • There are 2 starting methods.
    • Start from the power ON
    • Start from the power OFF
  • Case of starting from the power off, mecha initialization is not performed, so it may be possible to avoid errors occur for the mecha starting.
  • Machines that store received fax data may take longer to starting the mode due to fax data call processing.


Start from the power ON
  1. Press [Power Button] on the operation panel to turn on the product.


  2. On the home screen, press and long press the [Home button] (about 7 sec.).


    Check Point / チェックポイント
    • Do not move your finger at all while holding down the home button.

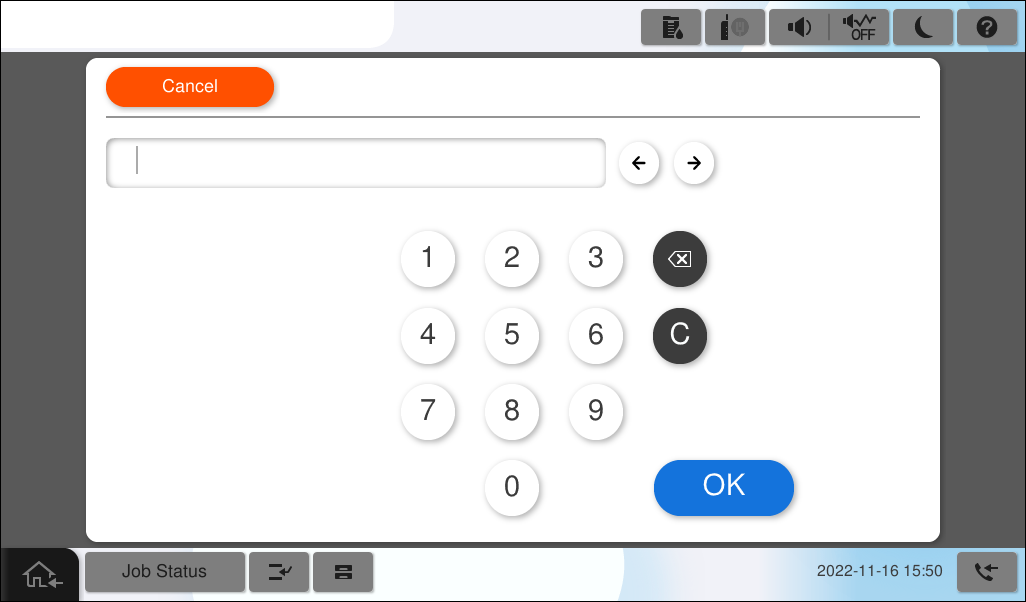

  3. If the starting succeeds, the keypad screen will be displayed.


    Enter any ID and press the [OK].

    Check Point / チェックポイント
    • Europe models only require entering a PIN code before entering the ID (due to UK security restrictions).

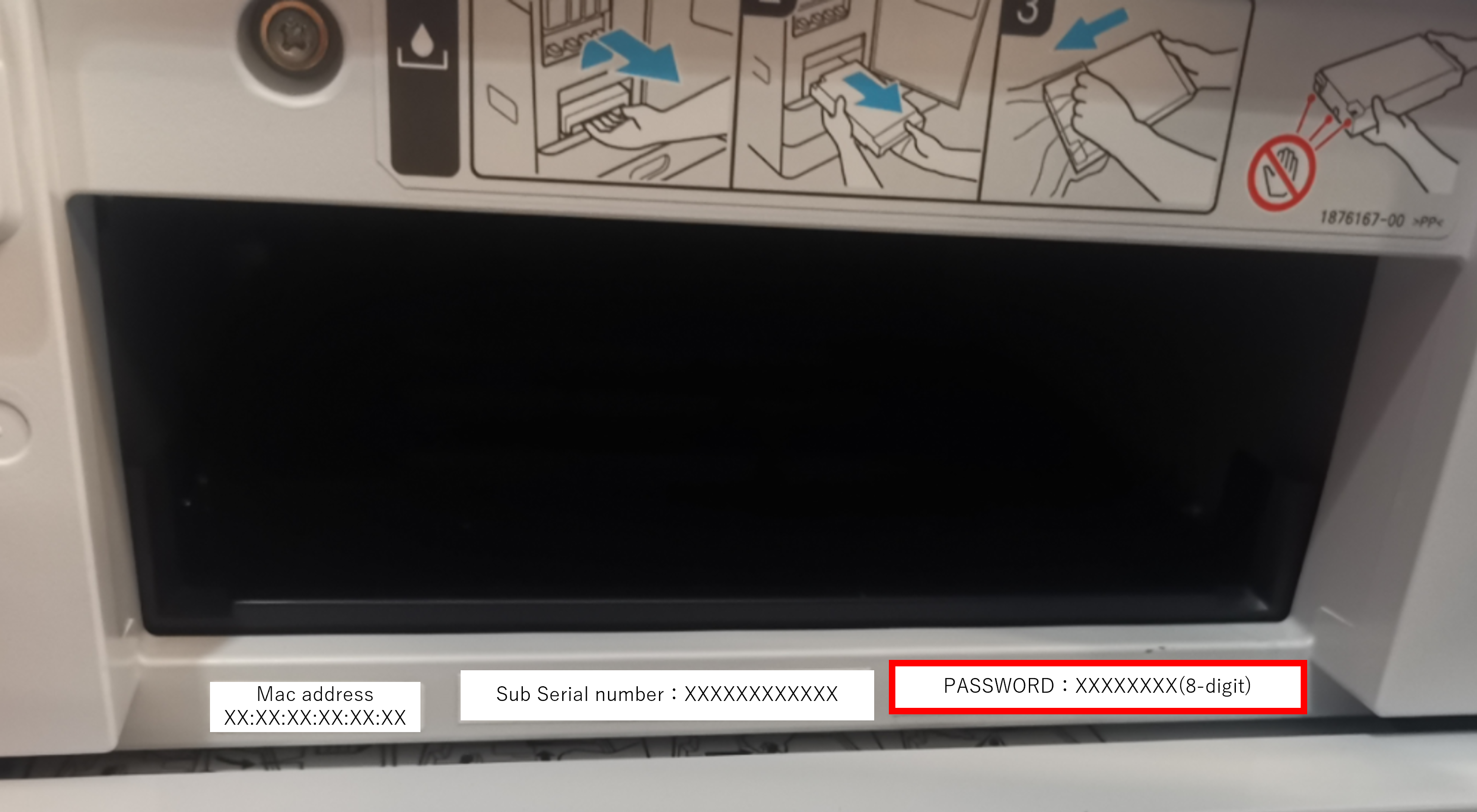

      The PIN code is unique and printed on the PASSWORD label. *It is labeled near the maintenance box insertion slot.

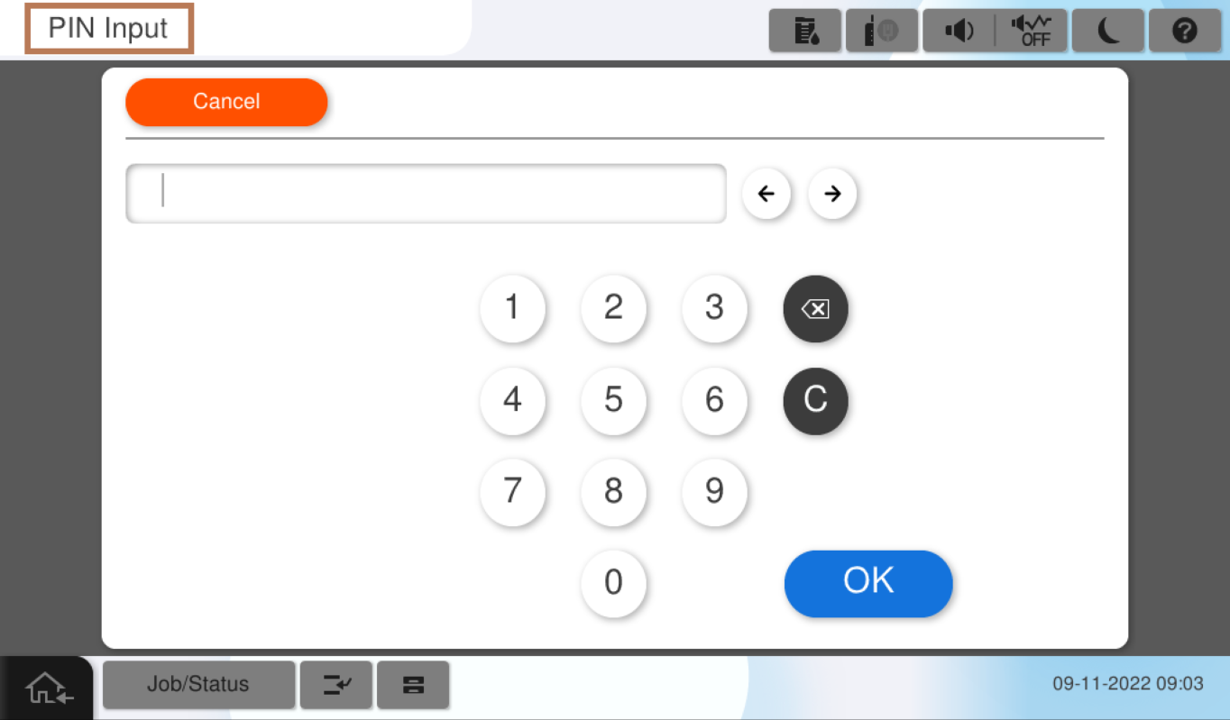

    • “PIN Input” is displayed in the left corner of the ID input screen when a PIN code is required.
      *This is not displayed in the ID input screen when the ID is required.
    • Workflow(Europe models)
      1. Press and hold the [Home Button] to activate the ID input screen.
      2. Open the front cover and then, check a PIN code on PASSWORD label.
      3. Enter a PIN code and press [OK].
      4. Enter the ID and press [OK].

Note / 補足
  • ID : 2512


Start from the power OFF

  1. Turn off the power and open the right door (A).

    Note / 補足
    • This startup method requires some skill, so there is a risk that the ID input screen will fail to startup.
      By opening the right door before turning on the power, the interlock is released and the startup process can be prevented in the event of a failure.

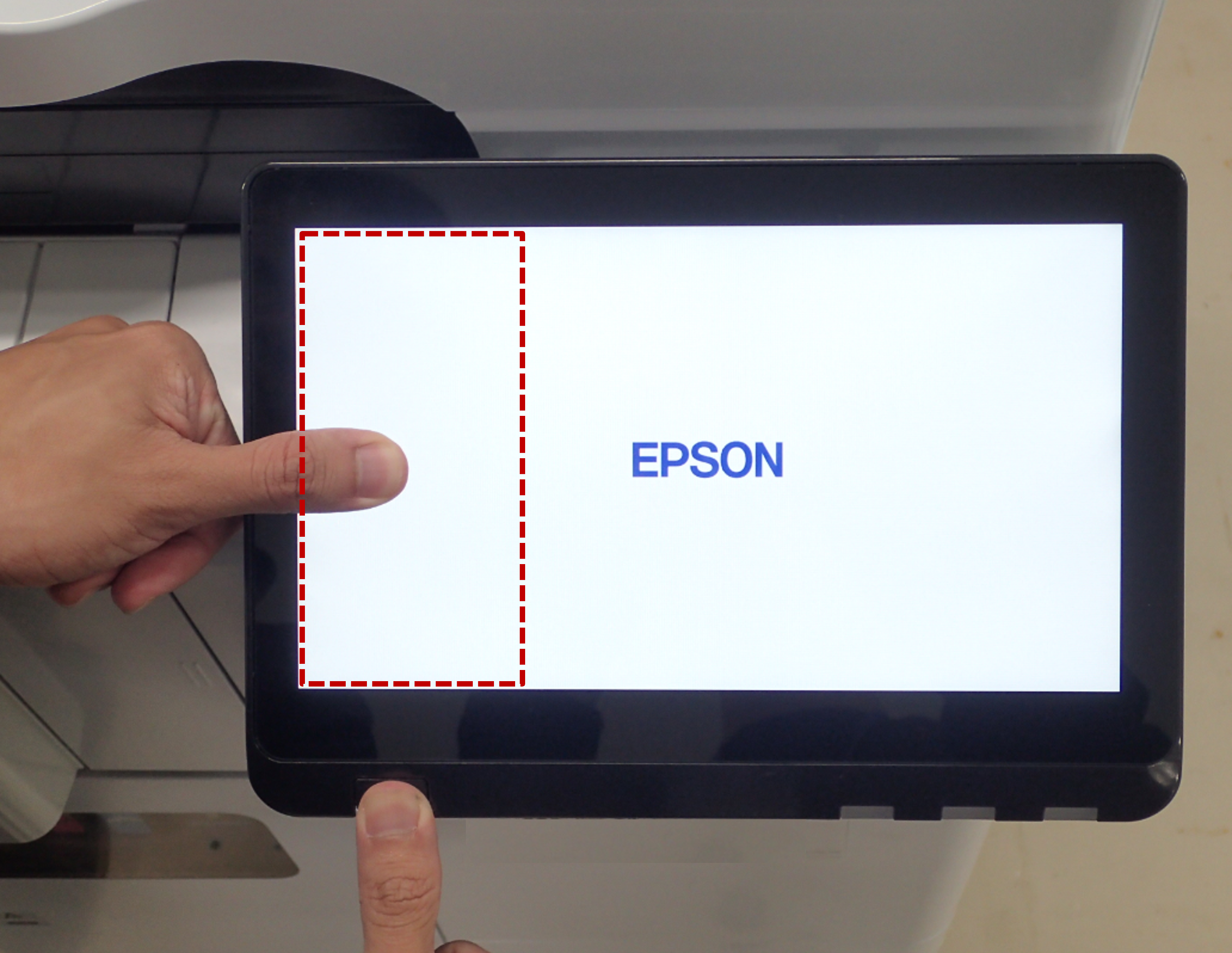

  2. Turn on the product while holding down the [Power button] on the control panel, and at the moment the EPSON logo screen appears, press and hold part of the panel LCD (left side) with finger.


    Keep press and hold the power button and panel LCD (left side) until the ID input screen starts up (about 10 sec.)

    Check Point / チェックポイント
    • Do not move your finger at all while holding down the home button.


  3. Check Point / チェックポイント
    • Europe models only require entering a PIN code before entering the ID (due to UK security restrictions).

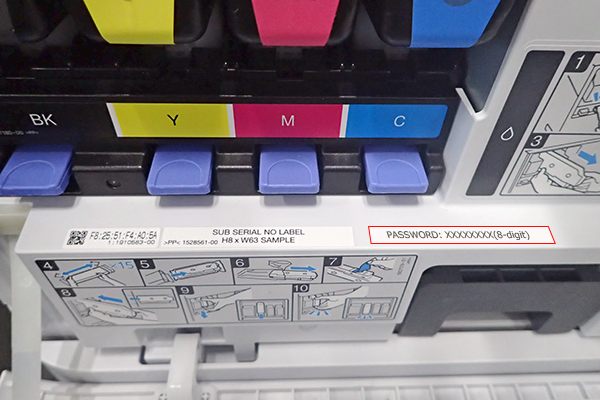

      The PIN code is unique and printed on the PASSWORD label. *It is labeled near the maintenance box insertion slot.
    • “PIN Input” is displayed in the left corner of the ID input screen when a PIN code is required.
      *This is not displayed in the ID input screen when the ID is required.
    • Workflow(Europe models)
      1. Press and hold the [Home Button] to activate the ID input screen.
      2. Open the front cover and then, check a PIN code on PASSWORD label.
      3. Enter a PIN code and press [OK].
      4. Enter the ID and press [OK].If the starting succeeds, the keypad screen will be displayed.
        Close the right door, enter any ID, and press the [OK] button.

Note / 補足
  • ID : 2512
