60205 ADF Manual Skew
Manual ADF Skew Correction
Set Auto skew to OFF before entering a value.

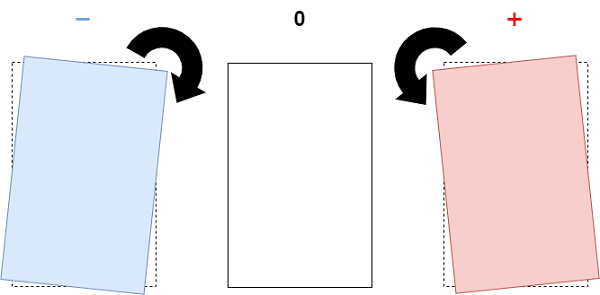

| Setting value | Setting range | Initial value | Overview | Amount of change |
|---|---|---|---|---|
| Paper Front | -50~50 | 0 | Angle correction offset value on paper front side | 0.01 degree |
| Paper Back | -50~50 | 0 | Angle correction offset value on the back side of paper | 0.01 degree |
- Start the service support mode.
- Select [06 Individual Adjustment].
- Select the [ADF/SCN] tab.

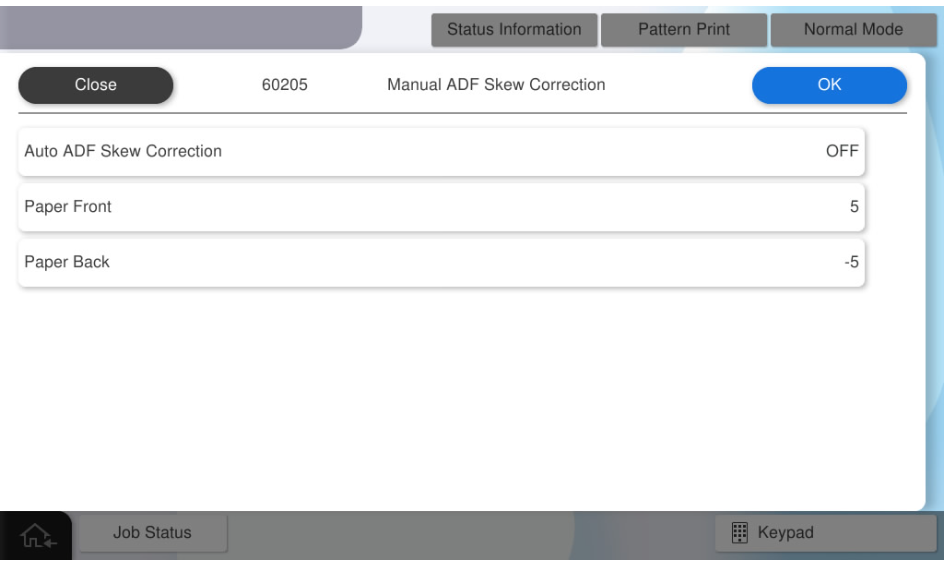

- Select [60205 Manual ADF Skew Correction].

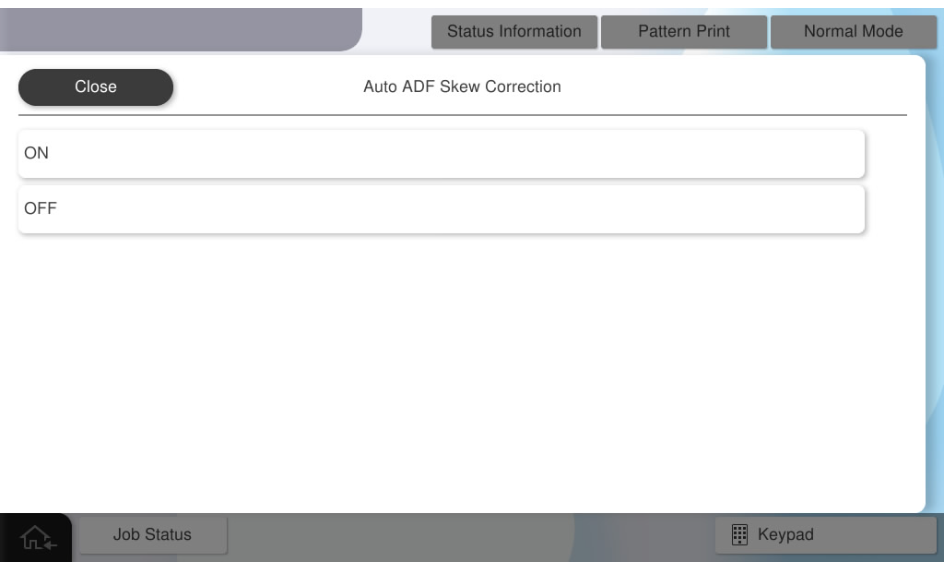

- Select [Auto skew] and set it to [OFF].
- Select [Paper Front] and [Paper Back], enter any adjustment values, and press [OK].
