Ink System Mechanism

Overview

The ink system mechanism mainly has the following roles.

  • Supply ink to the head stable.
  • Eject ink to the head stable.
  • Collect and discharge ink that is not used for printing (waste ink) discharged from the head unit

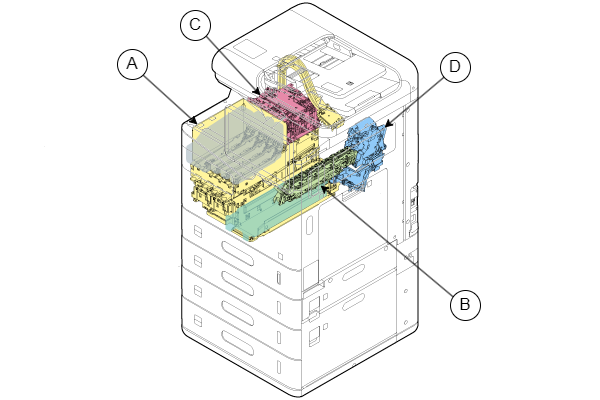

The main components of this product are as follows.

A Ink Supply Unit

It has a tank that stores the ink supplied from the I/C, and the remaining amount of ink is managed by a sensor inside the tank. It also has an ink flow path and air flow path up to the head unit.
B Cap Unit

Adheres to the head unit while waiting for printing to keep the print surface moist. To collect ink not used for printing ejected from a head unit.
C Selector Unit Use the pressure generated by the air pump to pressurize or depressurize the ink path or waste ink flow path to supply ink to the Head Unit or to send waste ink to the maintenance box.
D Wiper Unit The wiper blade is brought into contact with the print surface of the head unit and moved left and right to clean foreign matter.
--- Ink cartridge (I/C) A container that holds ink used for printing. The ink cartridge of this product contains ink directly in a plastic container. Ink is supplied to the ink supply unit by attaching it to a predetermined position inside the product.
--- Maintenance box A container for storing collected waste ink.
Ink supply control

This product uses the potential energy generated from the positional relationship between the ink level in the ink supply unit's sub-tank/reservoir tank and the head unit to supply ink (after ink is filled).
Therefore, it is necessary to set the product tilt within ±3°.

Head Cleaning

Ink filling/head cleaning (CL0/CL1/CL2) is performed by combining the following three types of control.

Pressurization Cleaning

  1. The air pump of the selector unit pressurizes the ink tank inside the ink supply unit.
  2. Ink is supplied to the head unit by the pressure accumulated inside the ink tank, and the ink is discharged.

Circulation Cleaning

  1. The air pump of the selector unit pressurizes the ink tank inside the ink supply unit.
  2. Ink is supplied to the head unit by the pressure accumulated inside the ink tank, and the ink is discharged.
  3. A part of the ink supplied to the head is returned to the ink tank of the ink supply unit through the ink circulation channel by valve control of the ink channel.
    *By circulating ink between the ink supply unit and the head unit, efficient head cleaning is performed, reducing the amount of maintenance ink and execution time.

Pressure wiping

  1. The air pump of the selector unit decompresses the CL0 unit inside the ink supply unit.
  2. A certain amount of ink is supplied by expanding the internal volume of the CL0 unit due to the reduced pressure. After that, depressurize the CL0 unit.
  3. Using the force that causes the internal volume of the CL0 unit to return to its original state, the ink is pushed out from the head nozzle surface by pressurizing the inside of the ink supply channel.
  4. Wipe off the ink with a wiper.


Ink Discharge Control

The waste ink collected by the cap unit and wiper unit is discharged to the maintenance box by the Selector Unit air pump by pressurizing the waste ink flow path.

Positional relation of the Head Unit/Belt Unit/Cap Unit

The positional relationship of each unit when the Head Unit transitions from capping to printing is shown below.

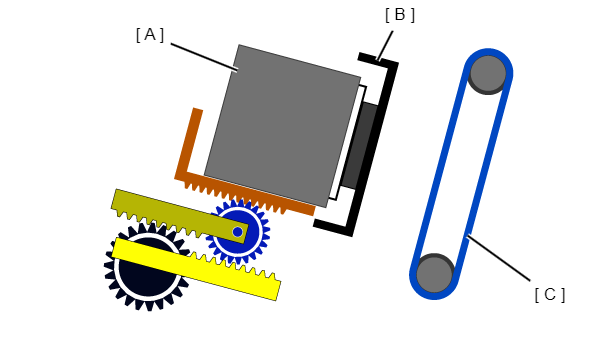

  1. Capping
    When the Head Unit (A) is capping, the Cap Unit (B) is in between the Belt Unit (C) and Head Unit (A).

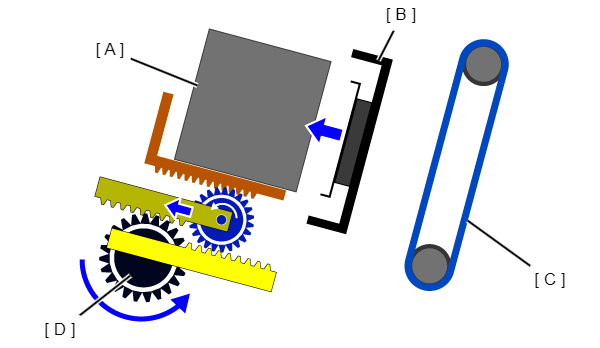

  2. Head Unit retreat
    The Head Unit (A) may be separated from the Cap Unit (B) depending on the Head Unit drive gear (D) rotation.

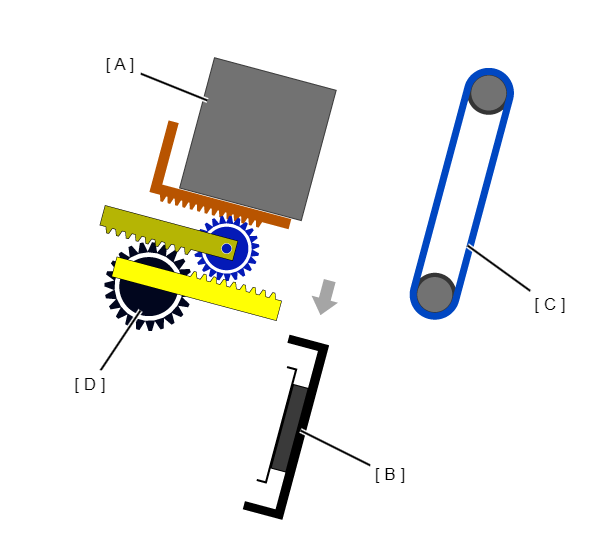

  3. Cap Unit retreat
    After the Head Unit (A) has retreated, the Cap Unit (B) retreats from in between Head Unit and Belt Unit (C).

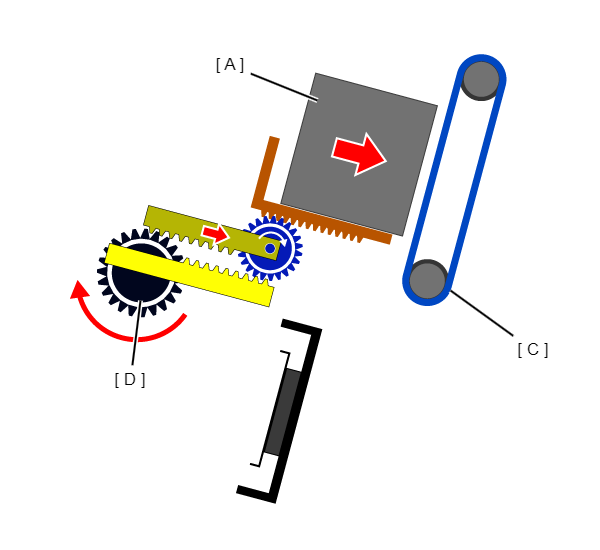

  4. Printing
    The Head Unit (A) draws close to the Belt Unit (C) to ensure a proper distance between the Head Unit (A) and Belt Unit (C) via the Head Unit drive gear rotation (D).
