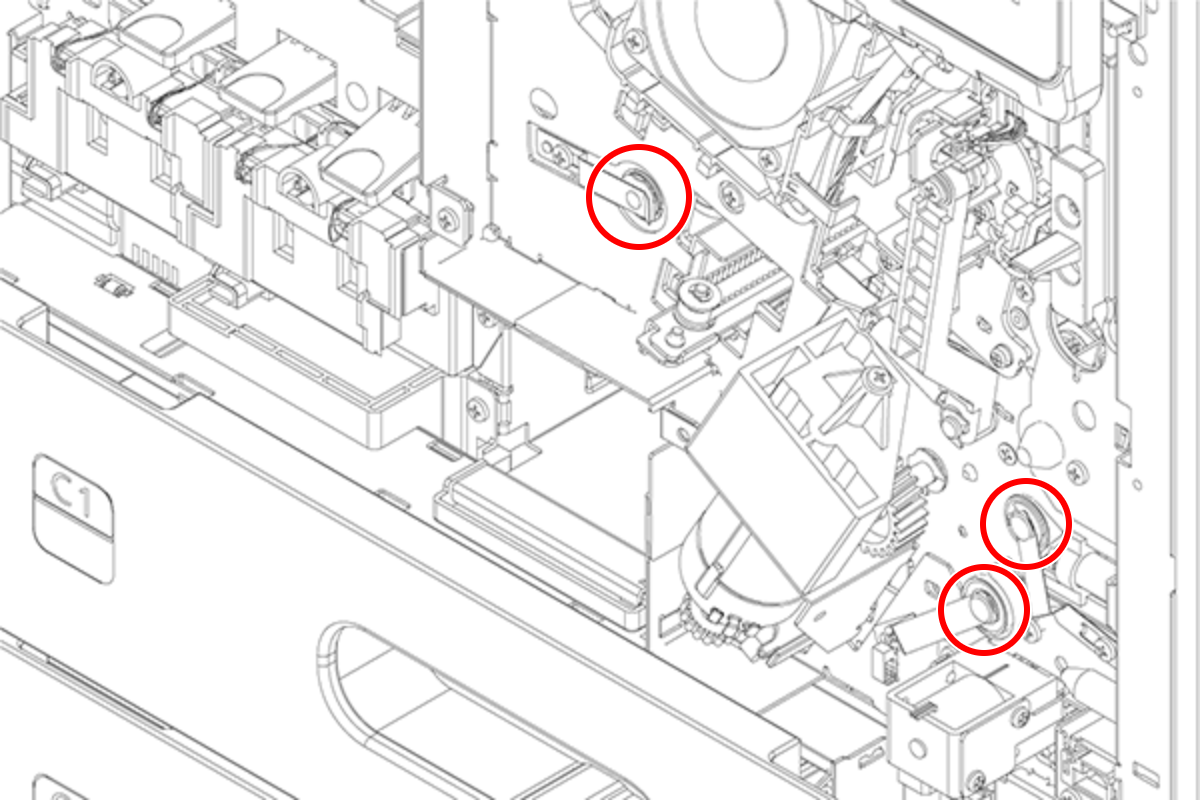

Had Drive Shaft/Registration Shaft/Belt Drive Shaft and Ground Plate
| Lubrication point | Space between Had Drive Shaft/Registration Shaft/Belt Drive Shaft and Ground Plate |
|---|---|
| Oil type | G-73 |
| Application amount | Appropriate amount |
| Remarks | When the grease is insufficient, abnormal noise (squeaky noise) occurs when the head is raised or lowered or when the paper is transported. |
