20105 Adsorption Check Pattern

Program No.

Pattern Name

Specifications

Pattern Image
(Paper transport direction: arrow direction)

Target image quality defect

20105

Adsorption Check Pattern
  • Pattern outline: Prints 20103 gradation pattern on one side, and feed through duplex path..
          It ejects paper without printing on the other side.
  • Paper size: A4/Letter
  • Paper type: Plain paper
  • Number of prints: 1

  • Ruled line misalignment

  • Color shift

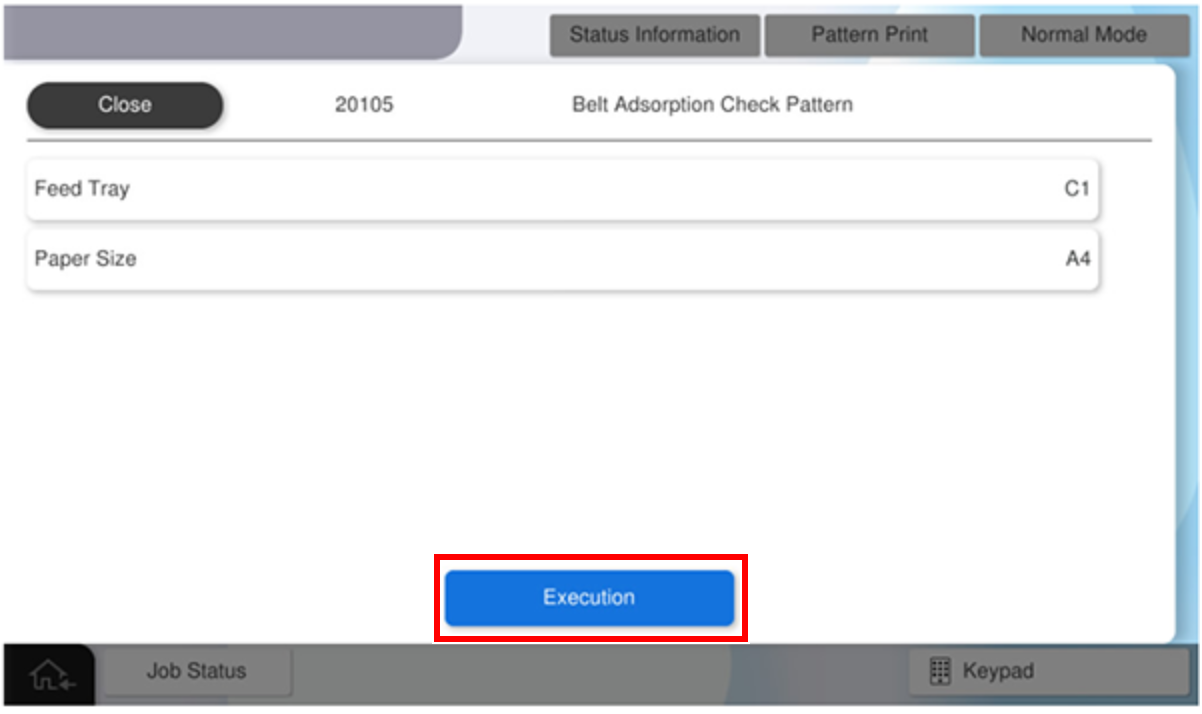

  1. Start service support mode.
  2. Select [02 Check Pattern Print / Paper Feed Confirmation].
  3. Select [Check Pattern Print] tab.
  4. Select [20105 Adsorption Check Pattern].
  5. press each setting item button to make print settings.


    the selectable items are as follows.

    setting items choice
    feed tray c1, c2, c3, c4, Paper Tray
    available paper sizes a4, letter
  6. Press [Execution].
