PW Sensor Unit - After replacement

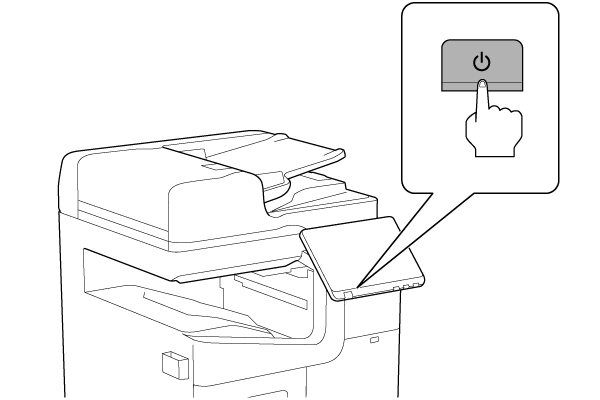

- Turn the power ON.

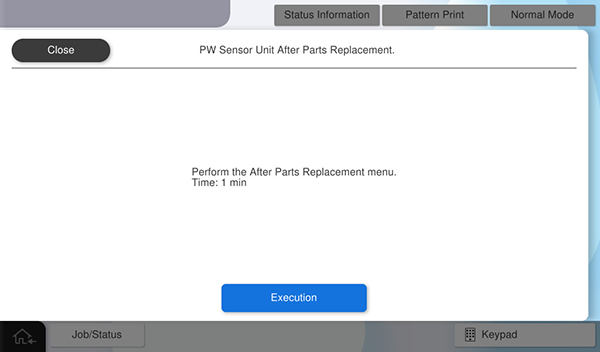

- Press [Execution].

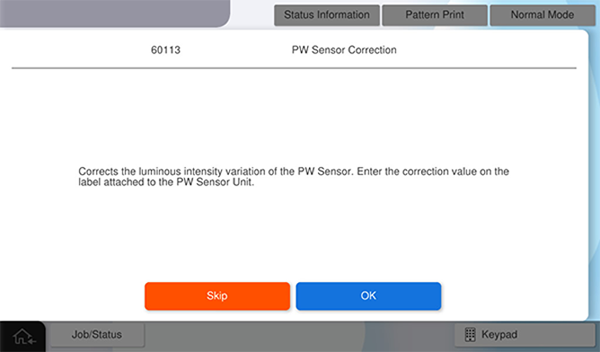

- Press [OK].

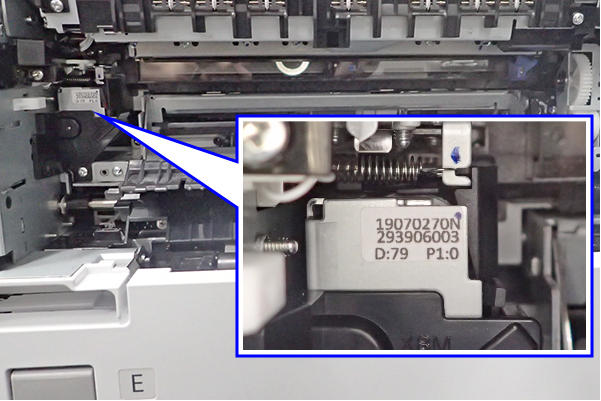

- Open the Right Door Unit and check the correction value label.

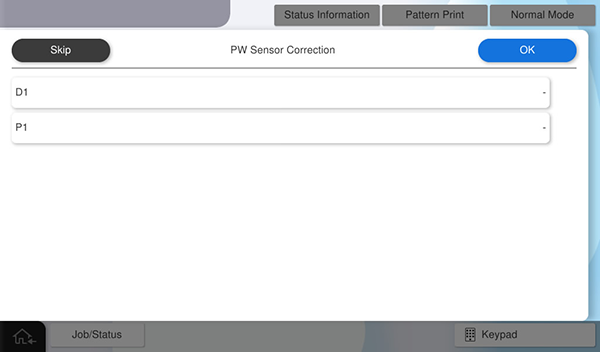

- Enter the correction values D1, P1, and press [OK].

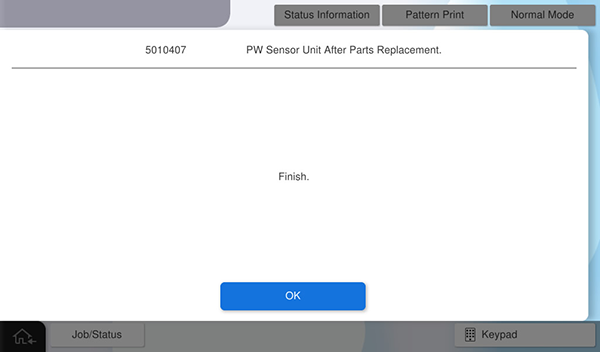

- Press [OK] to complete the menu.
