# Paper Eject Tray Full Front Detection Sensor

1. Remove the C1 cassette (A).

2. Open the Front Cover (A).

3. Remove the Maintenance Box (A).

4. Remove the 7 screws and remove the Front Inner Cover (A).


   • : 3x8D
   • : 3x8D/BK

   Assembly / 組み立て

   Insert the protrusion (A) of the Front Inner Cover into the hole (B) of the main unit and install.

   Note / 補足

   If the wireless LAN unit (A) is installed, remove it.

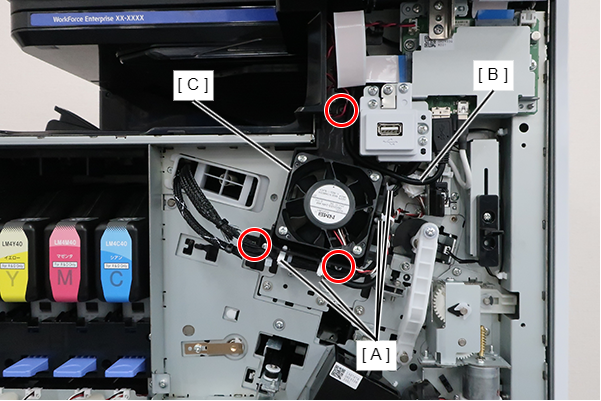

5. Release the cable from the 4 clamps (A) and disconnect the cable from the relay connector (B).
6. Remove 3 screws and remove the Head Board Cooling Fan Assy (C).




   • : 3x8D

   Assembly / 組み立て

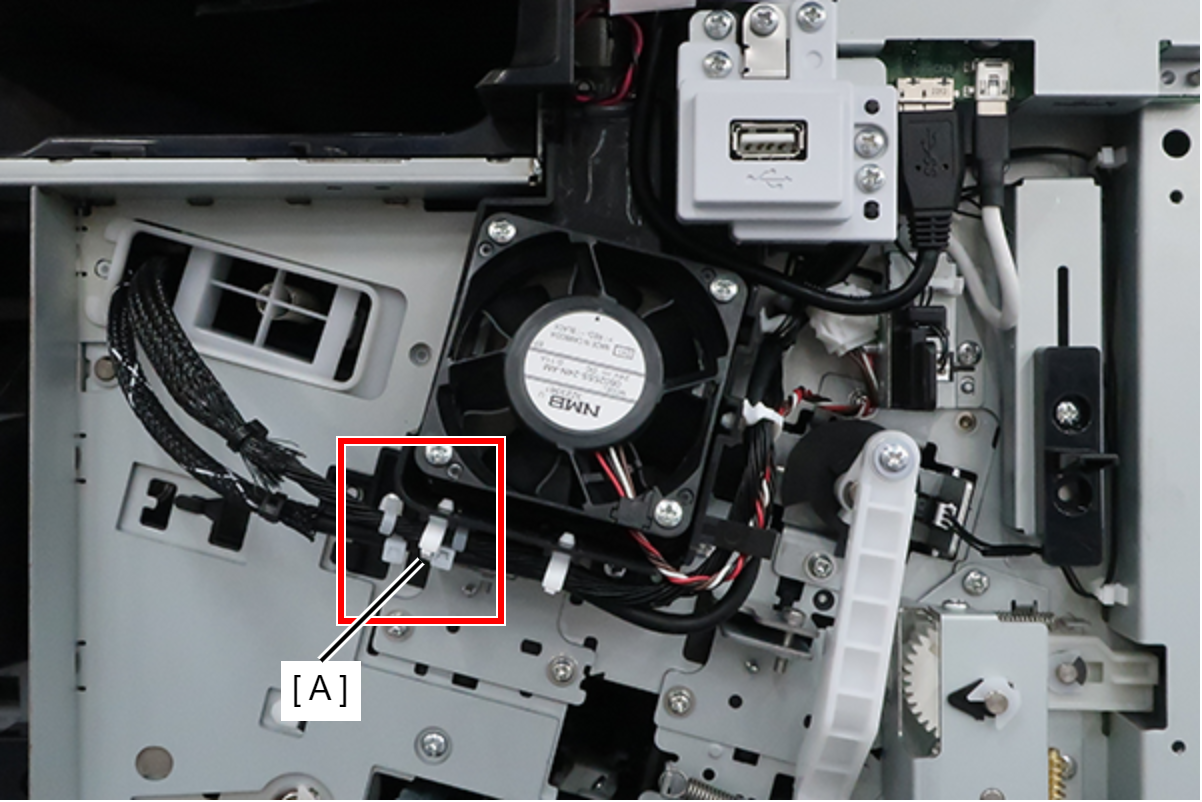

   Secure with a clamp (A) between the cable ties.

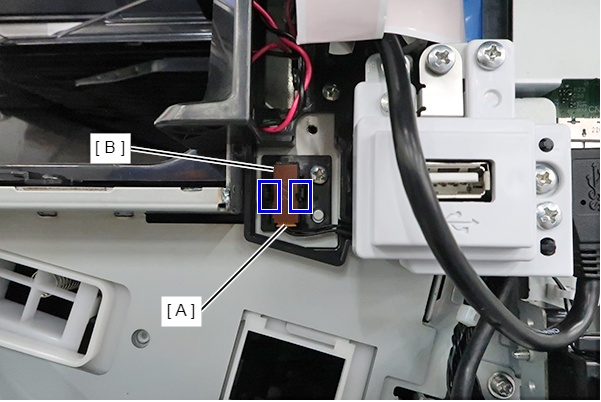

7. Remove the cables from the connector (A).
8. Release the 2 hooks and remove the Paper Eject Paper Stacker Full Front Detection Sensor (B).
