# Front USB Port Assy

1. Remove the C1 cassette (A).

2. Open the Front Cover (A).

3. Remove the Maintenance Box (A).

4. Remove the 7 screws and remove the Front Inner Cover (A).


   • : 3x8D
   • : 3x8D/BK

   Assembly / 組み立て

   Insert the protrusion (A) of the Front Inner Cover into the hole (B) of the main unit and install.

   Note / 補足

   If the wireless LAN unit (A) is installed, remove it.

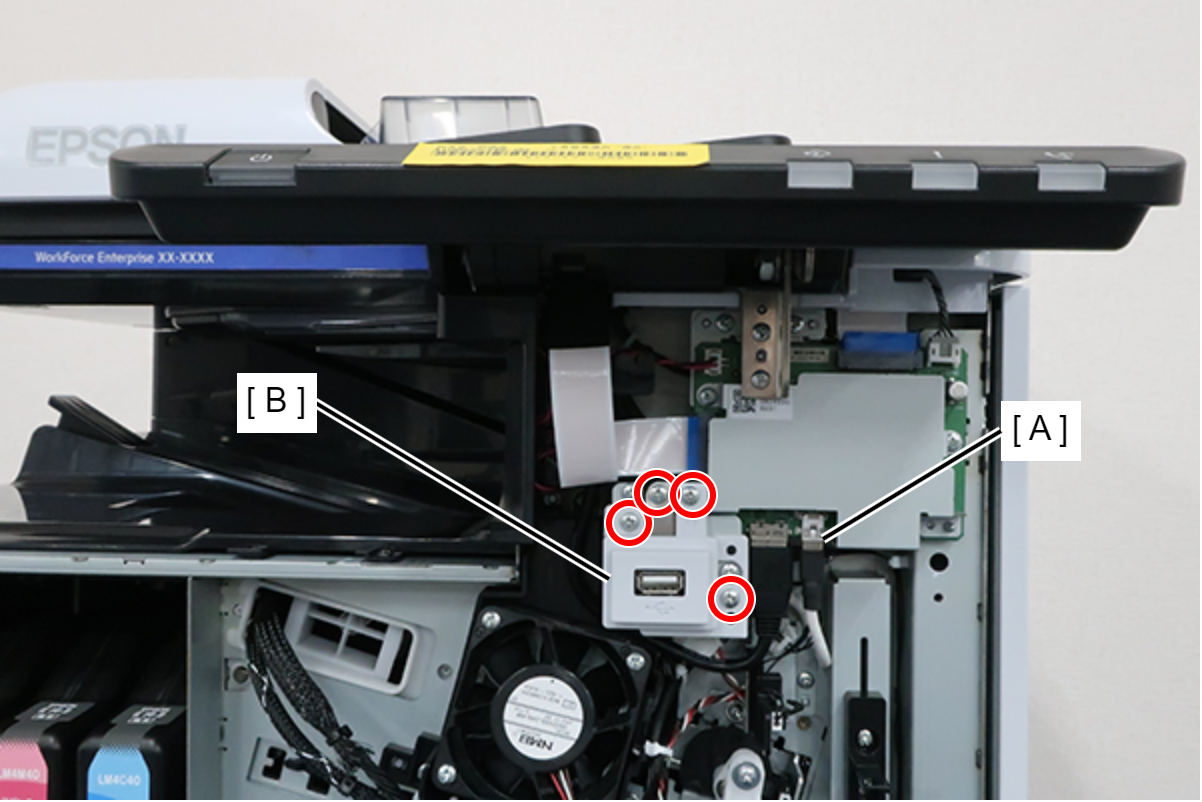

5. Remove the cables from the connector (A).
6. Remove the 4 screws and remove the Front USB Port Assy (B).


   • : 3x8D
