# C2 Pickup Unit

1. Open the C2 Additional Paper Feed Cover (A).

2. Place a tool with a narrow tip such as a flathead screwdriver in the groove, and pull it in the direction of the arrow to remove the shat (A) from the frame.

3. Remove the C2 Additional Paper Feed Cover (A) from the opposite side shaft.

4. Push the shaft (A) in the direction of the arrow to remove it from the frame, and remove the C2 Additional Paper Feed Cover (B).

5. Press the dowel in the direction of the arrow to release it, and remove the C2 Guide PF Inner (A).

6. Remove the C2 cassette (A).



   Assembly / 組み立て

   The corresponding cassette can be replaced with another cassette. In that case, follow the steps below. Loosen the two screws on the dial (A) and align the groove on the bearing (B) with the dowel on the dial (A). Replace the label (A) on the cassette.

7. Remove the 4 screws fixing the C2 Additional Rear Cover (A).


   • : 3x8D
8. While pulling the C2 Additional Rear Cover (A) out in the direction of the red arrow, rotate it in the direction of the blue arrow to disengage the 3 hooks, then remove the C2 Additional Rear Cover.

9. Release the cable from the 2 clamps (A) and disconnect the cable from the relay connector (B).

10. Remove the 2 screws and remove the C2 Pickup Unit Connector Cover (A).


    • : 3x8M
11. Pull out the cable (A) of the C2 Pickup Unit through the hole, and remove the C2 Pickup Unit Connector Cover (B).

12. Remove the screw and remove the C2 Paper Feed Cover Decorative Plate (A).


    • : 3x8M
13. Remove the 2 screws and remove the Handle Cover Right (A).


    • : 3x8M

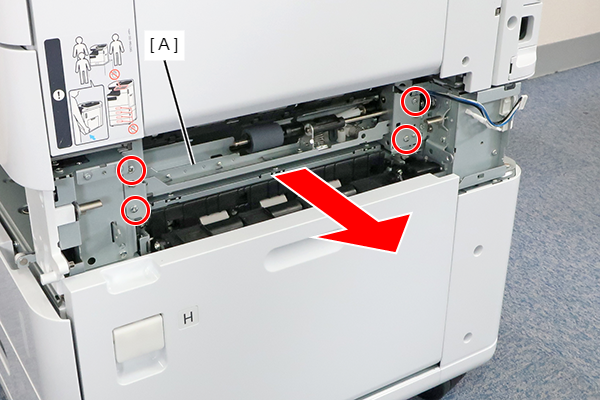

14. Remove the 4 screws and remove the C2 Pickup Unit (A).


    • : 3x8M
