# Belt Tension Release Drive Motor Assy

1. Remove the C1 cassette (A).

2. Open the Front Cover (A).

3. Remove the Maintenance Box (A).

4. Remove the 7 screws and remove the Front Inner Cover (A).


   • : 3x8D
   • : 3x8D/BK

   Assembly / 組み立て

   Insert the protrusion (A) of the Front Inner Cover into the hole (B) of the main unit and install.

   Note / 補足

   If the wireless LAN unit (A) is installed, remove it.

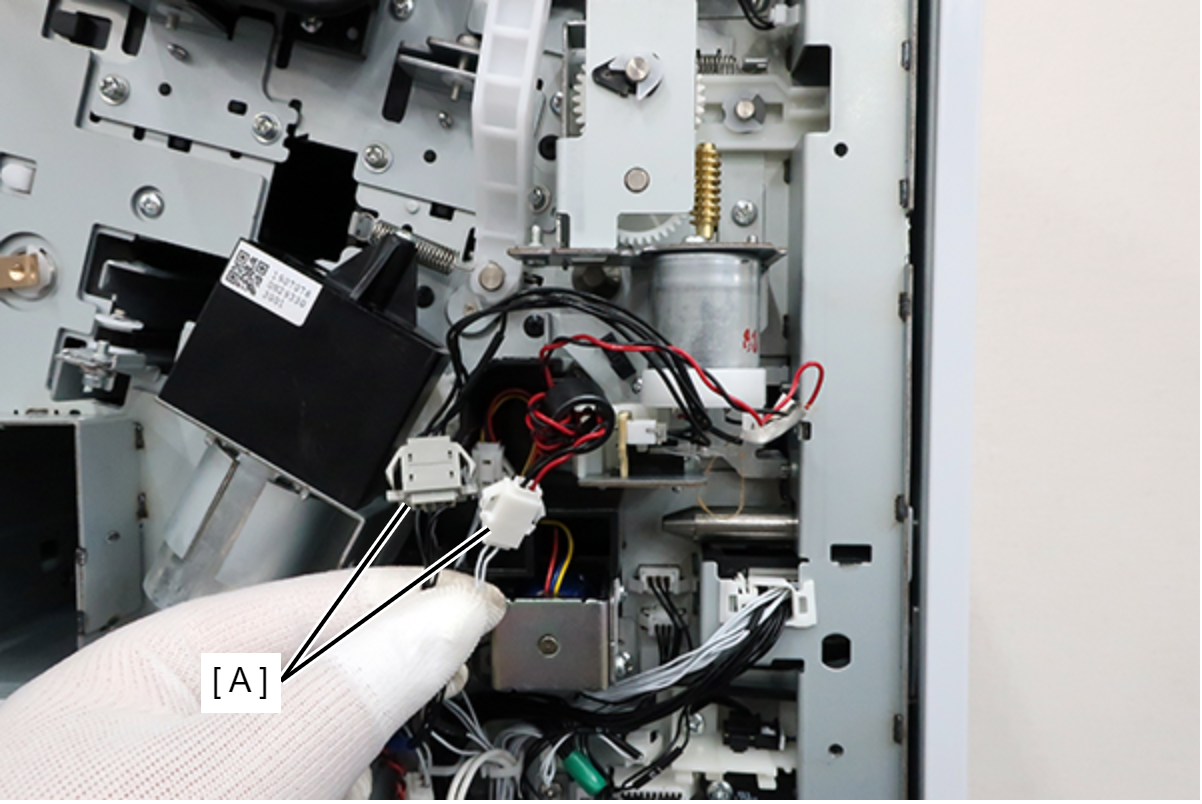

5. Disconnect the cables from the 2 relay connectors (A).

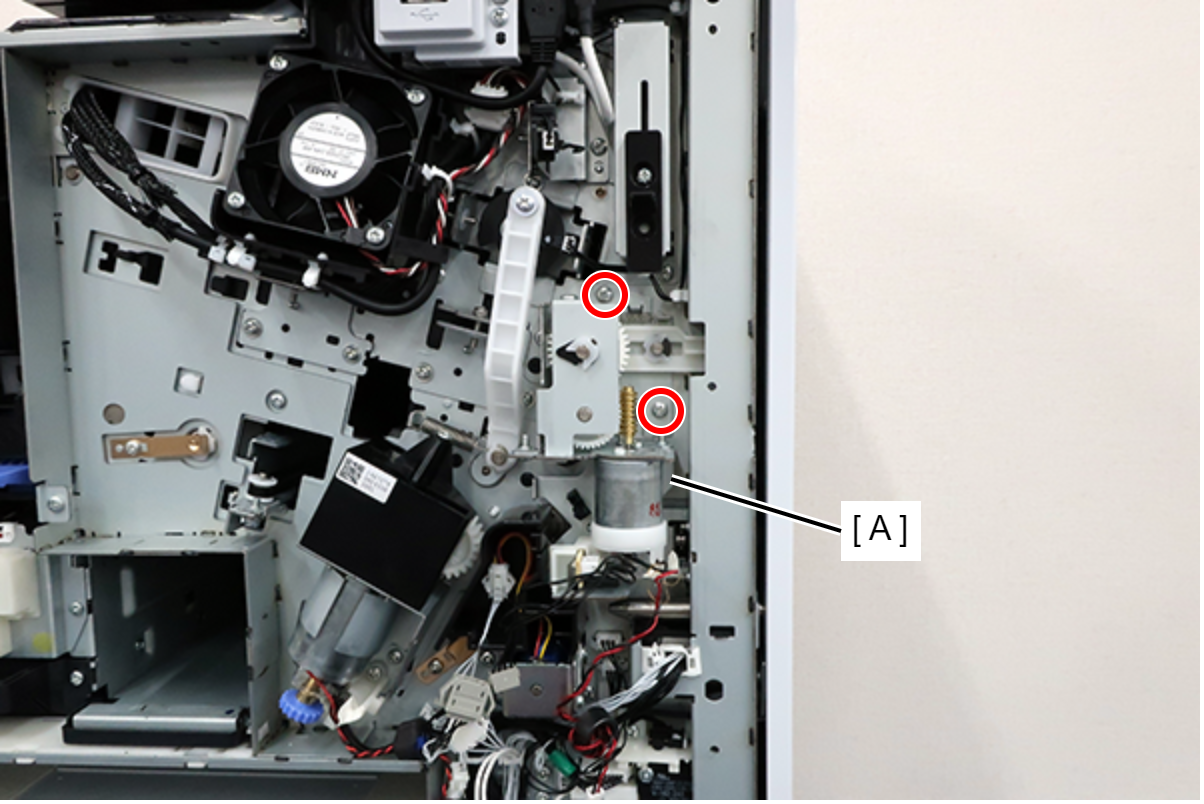

6. Remove 2 screws and remove the Belt Tension Release Drive Motor Assy (A).

   • : 3x8D

   Assembly / 組み立て

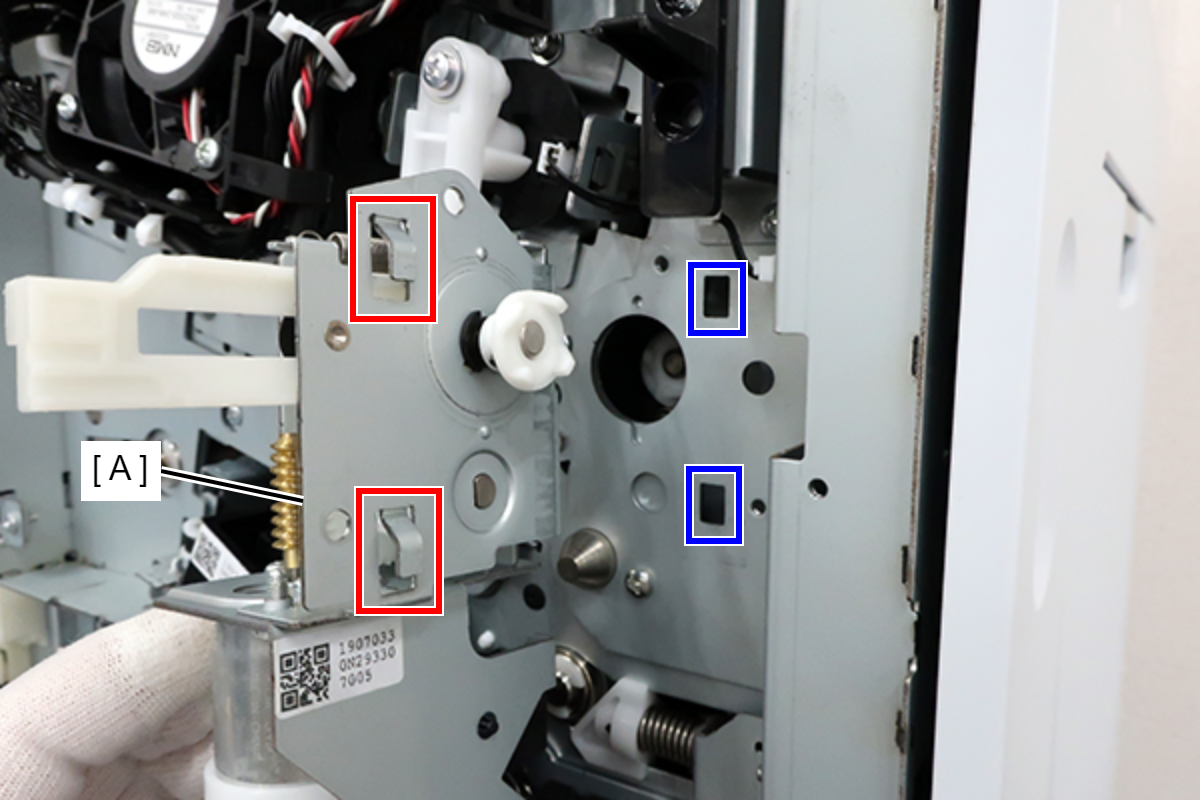

   When installing the Belt Tension Release Drive Motor Assy (A), align the 2 hooks with the notches on the main unit.
