MP Tray Paper Sensor

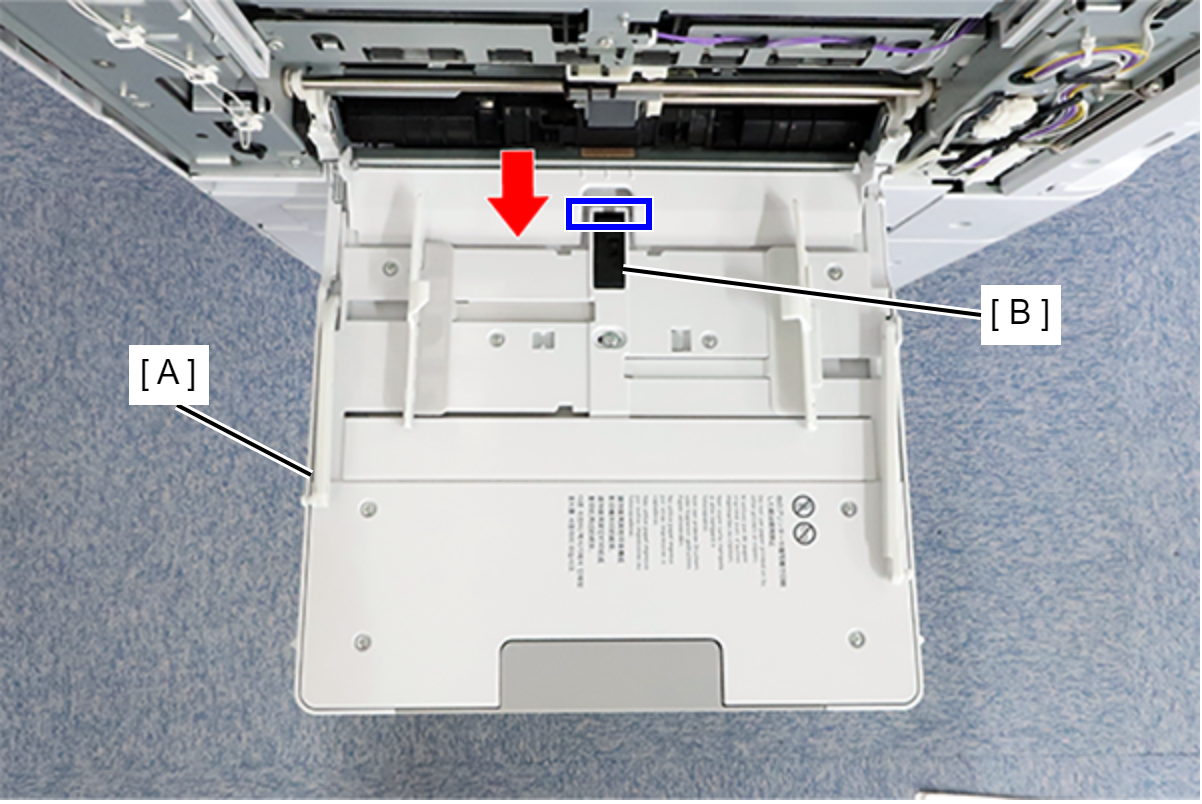

- Push the tab in the direction of the arrow to release the hook, then remove the MP Tray Paper Detection Sensor (A).

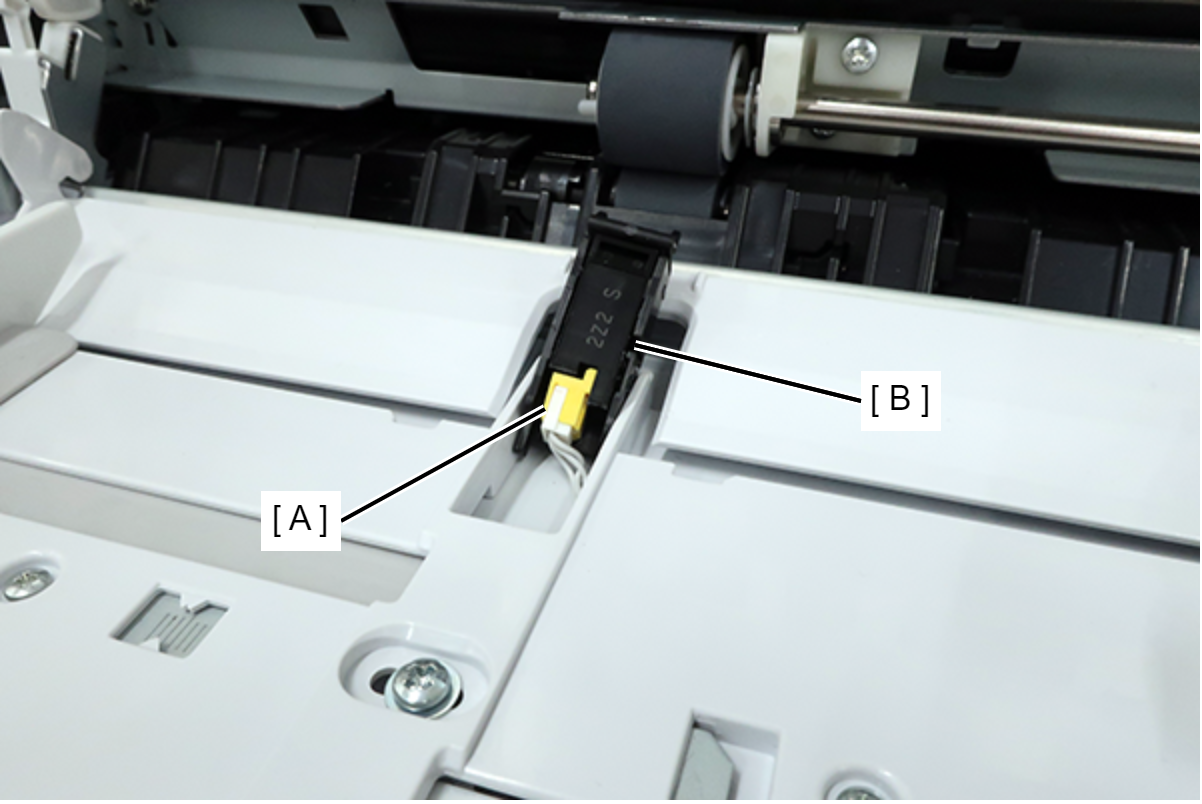

- Disconnect the cable from the connector (A) and remove the MP Tray Paper Sensor (B).
