C1 Cassette

Check Point / チェックポイント

when replacing this part, you need to run the menu from the service support mode before replacing it.

Cassette(C1) / Paper Tray - Before replacement

  1. Remove the C1 cassette (A).

Check Point / チェックポイント
  • After replacing this part, you need to run the menu from the service support mode.
    (if you ran the before-replacement menu before replacing the part, it will start automatically when you turn the power on.)
    Cassette(C1) / Paper Tray - After replacement

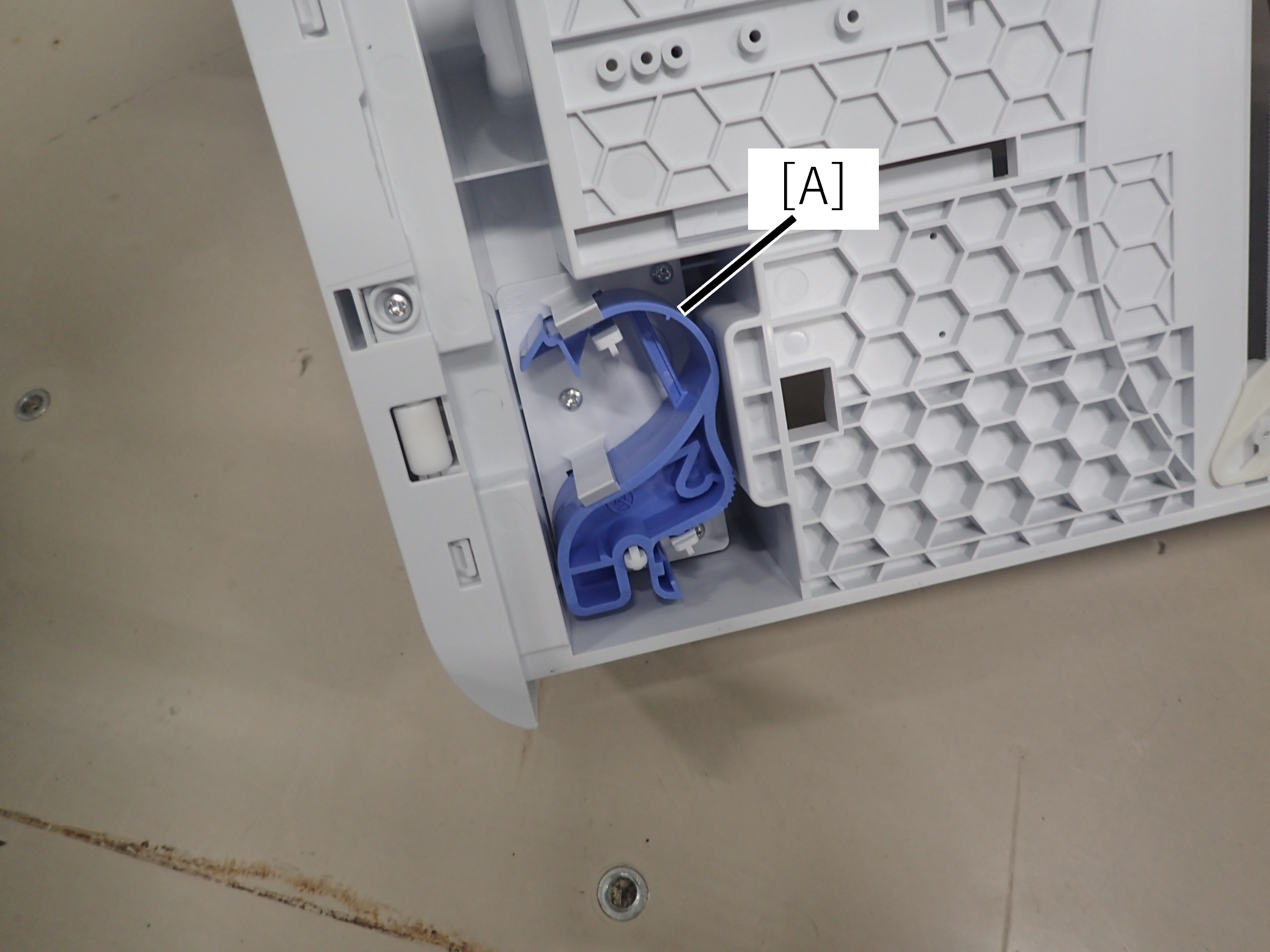

  • Head transportation part2 (A) should be transplanted to the replaced C1 Cassette.


    *Because the ASP parts for the C1 Cassette do not include head transport part2 (A).
