# Panel Unit

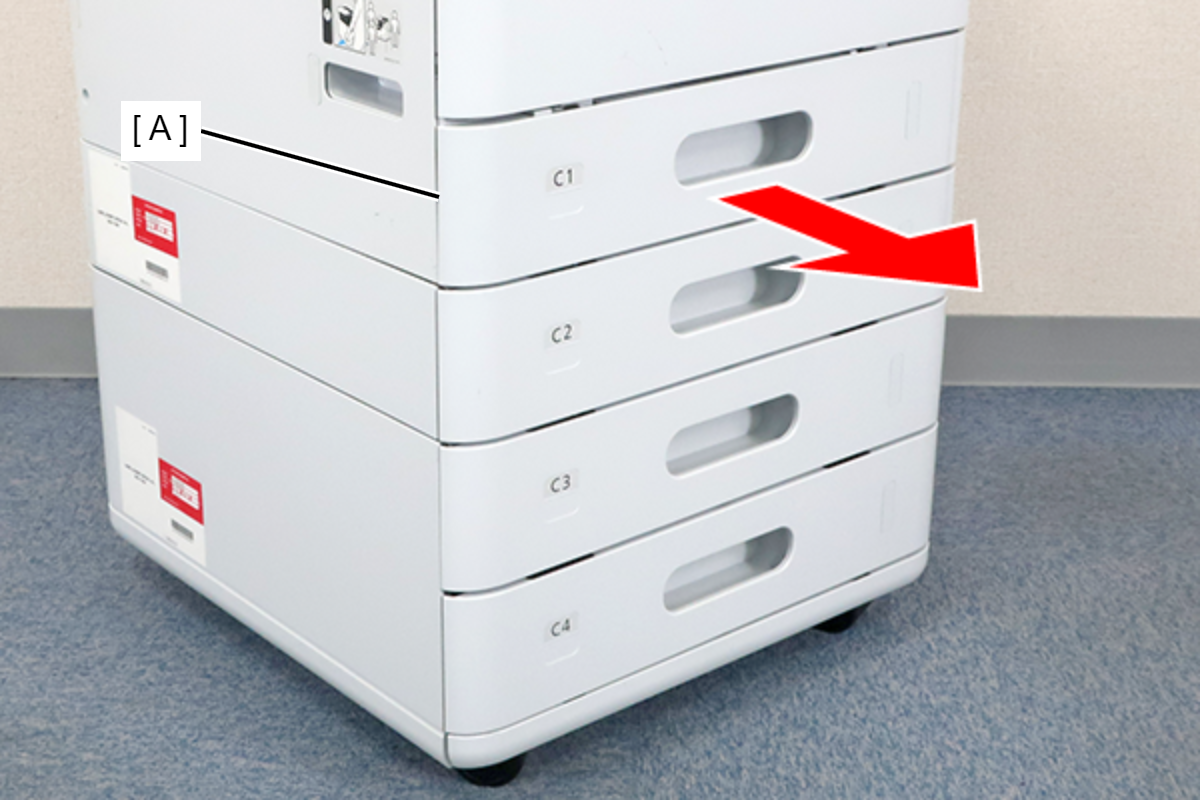

1. Remove the C1 cassette (A).

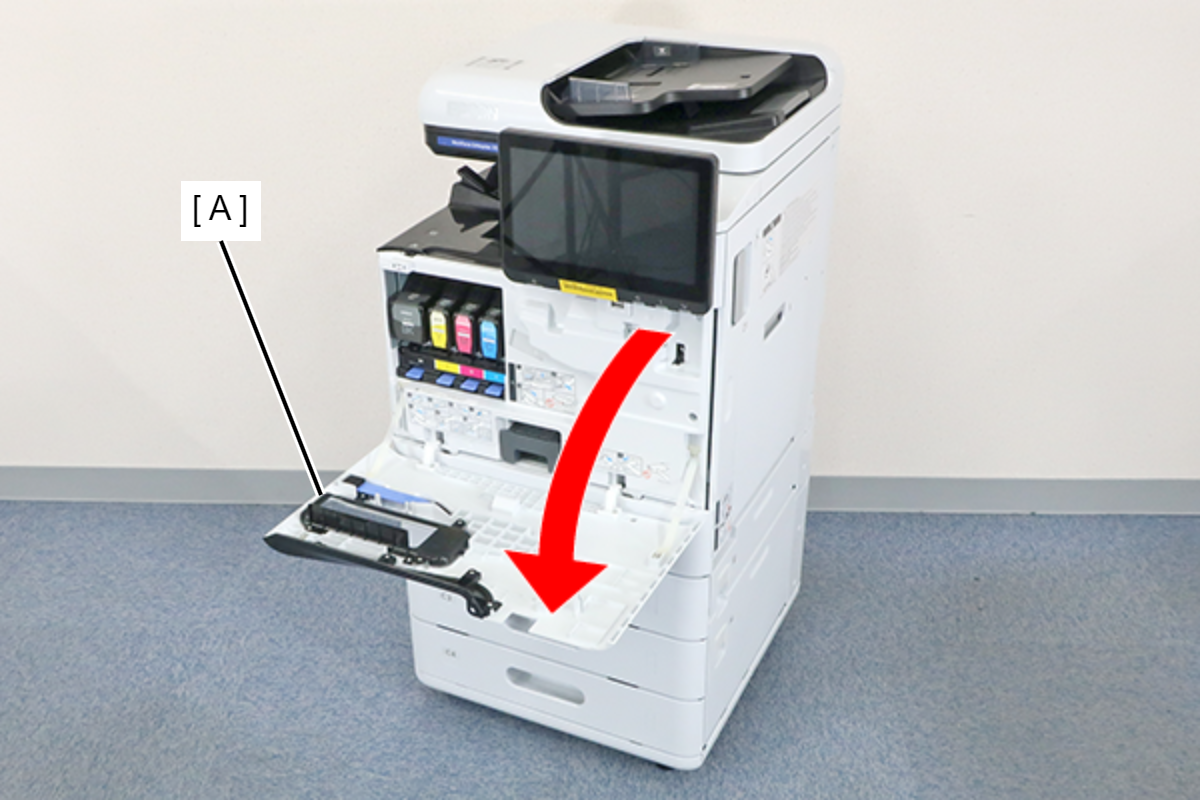

2. Open the Front Cover (A).

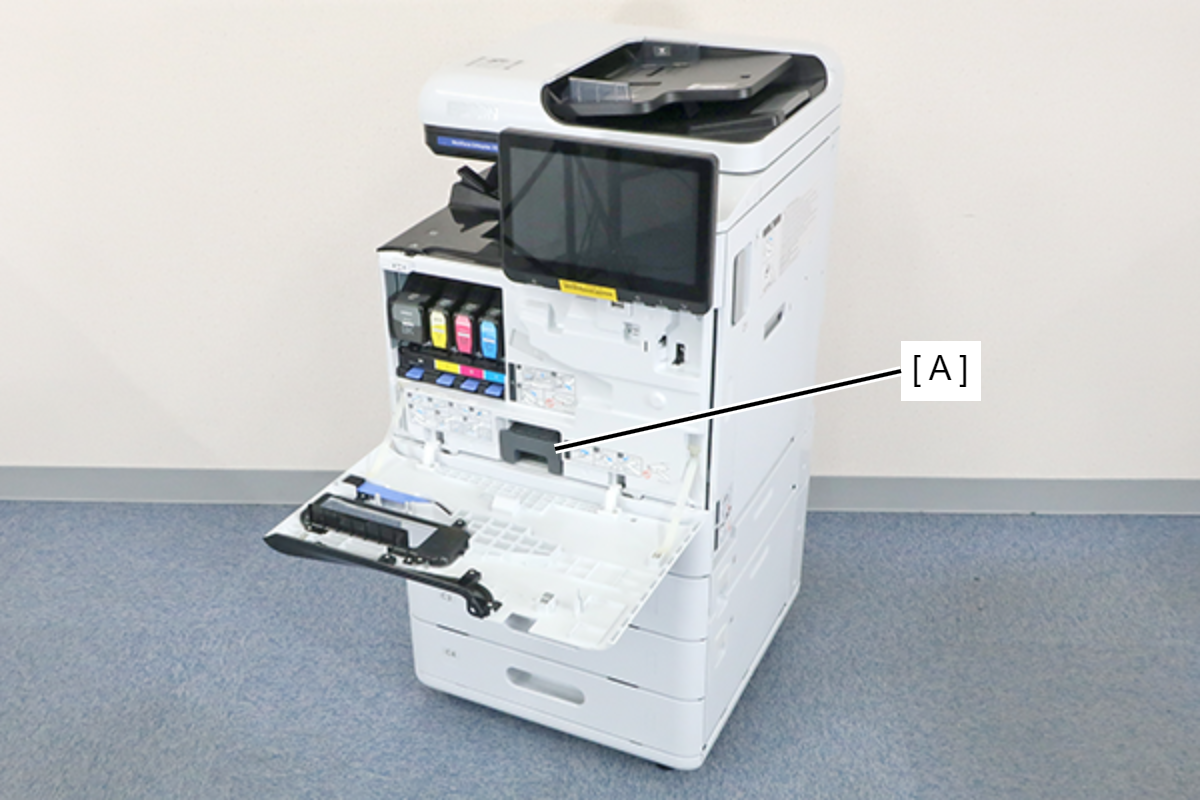

3. Remove the Maintenance Box (A).

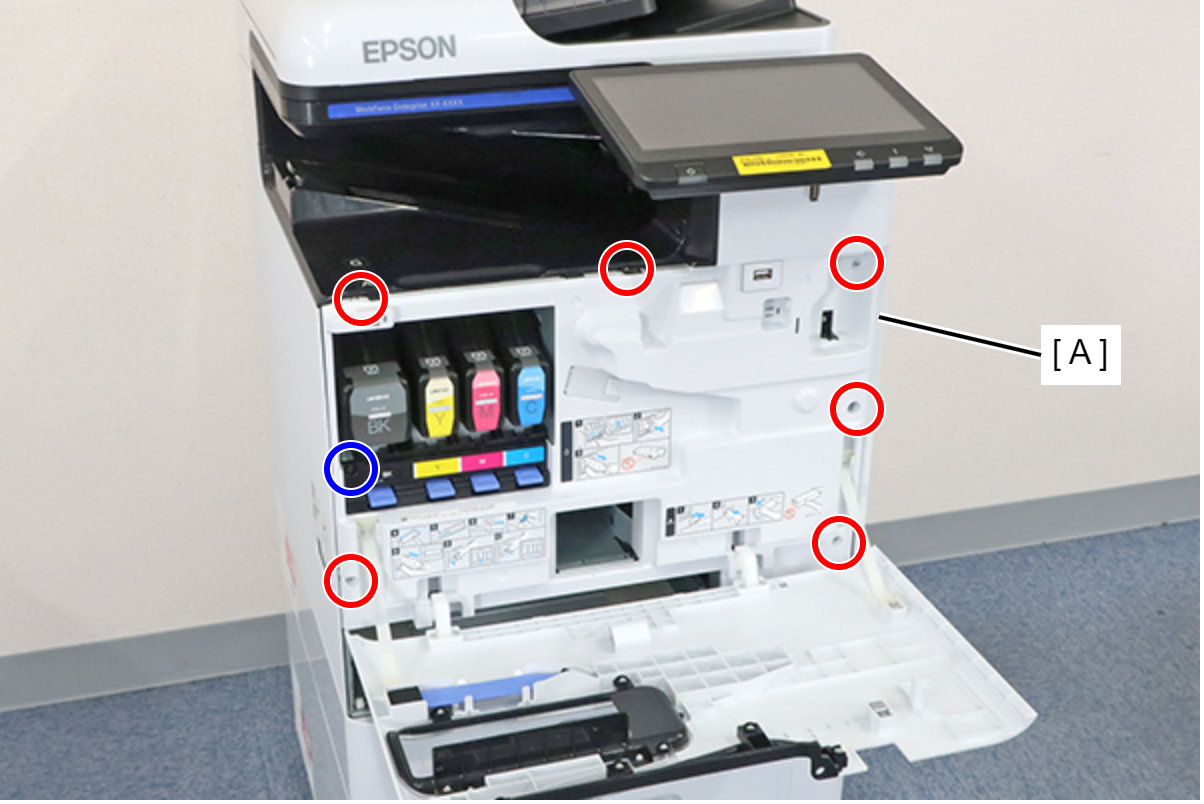

4. Remove the 7 screws and remove the Front Inner Cover (A).


   • : 3x8D
   • : 3x8D/BK

   Assembly / 組み立て

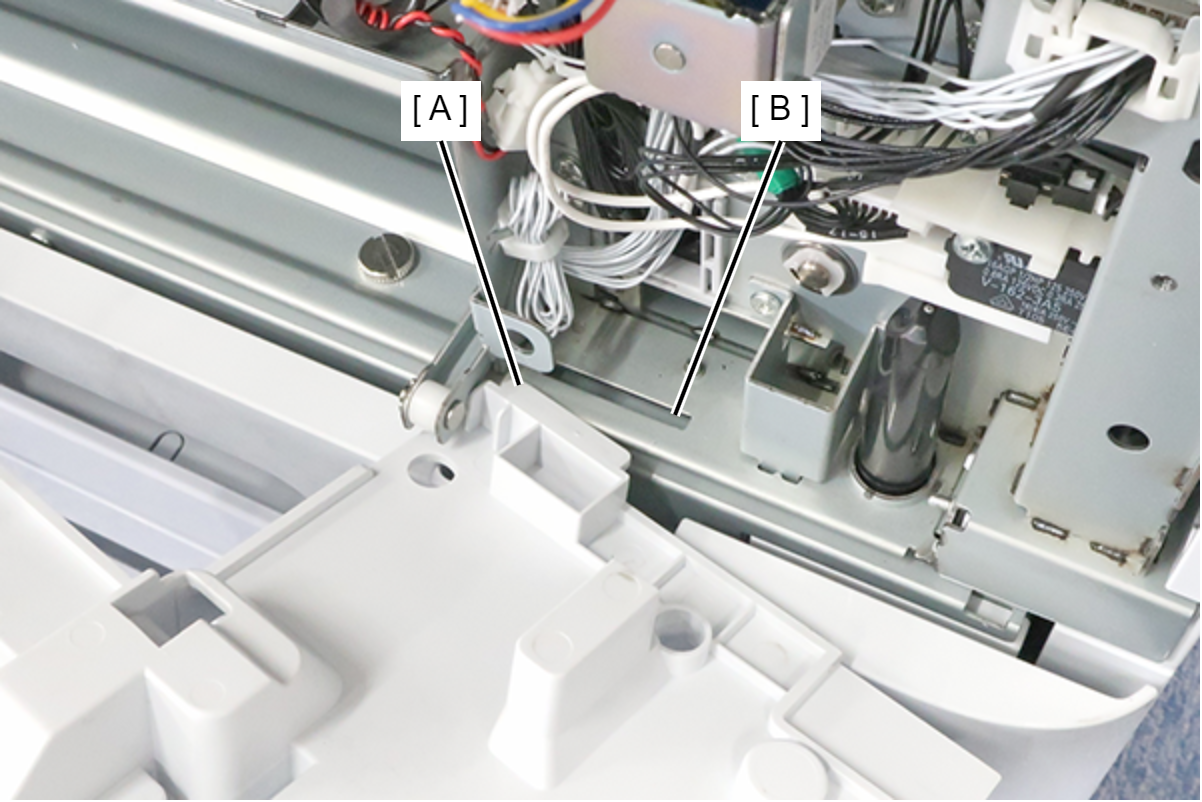

   Insert the protrusion (A) of the Front Inner Cover into the hole (B) of the main unit and install.

   Note / 補足

   If the wireless LAN unit (A) is installed, remove it.

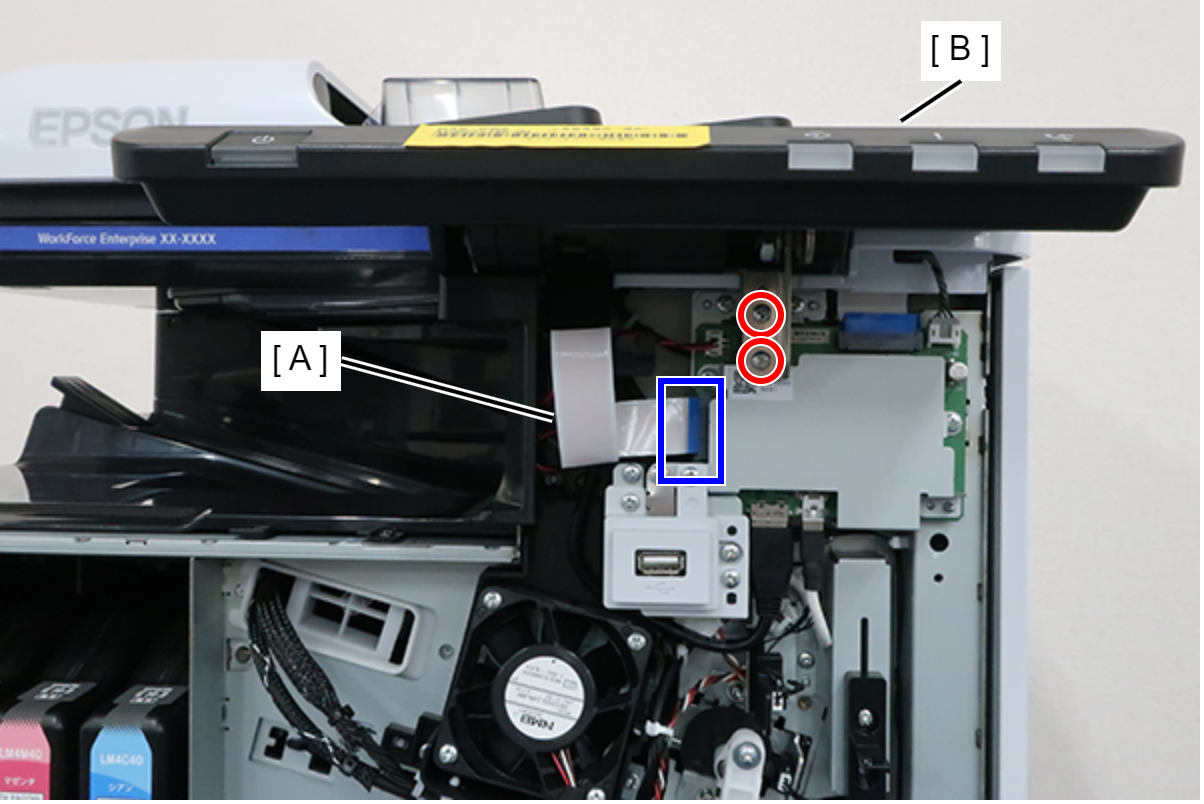

5. Remove the FFC (A) from connector.
6. Remove the 2 screws and remove the Panel Unit (B).


   • : 3x8D

   Assembly / 組み立て

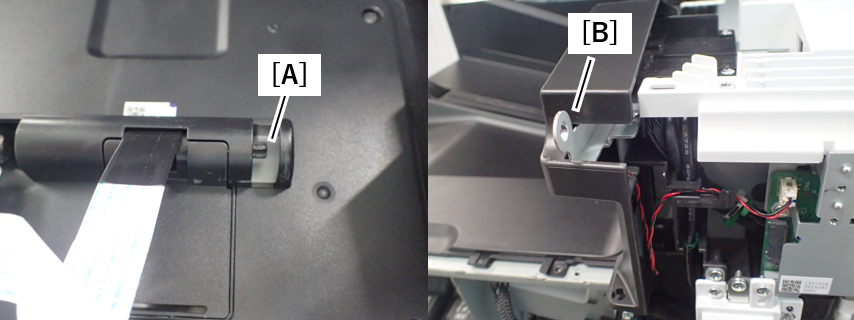

   When installing the panel unit, align the dowel (A) of the panel unit with the plate hole (B) on the main unit side.
