C1 Pickup Roller
 Check Point / チェックポイント |
When replacing this part, you need to run the menu from the service support mode before replacing it. |
- Remove the C1 cassette (A).

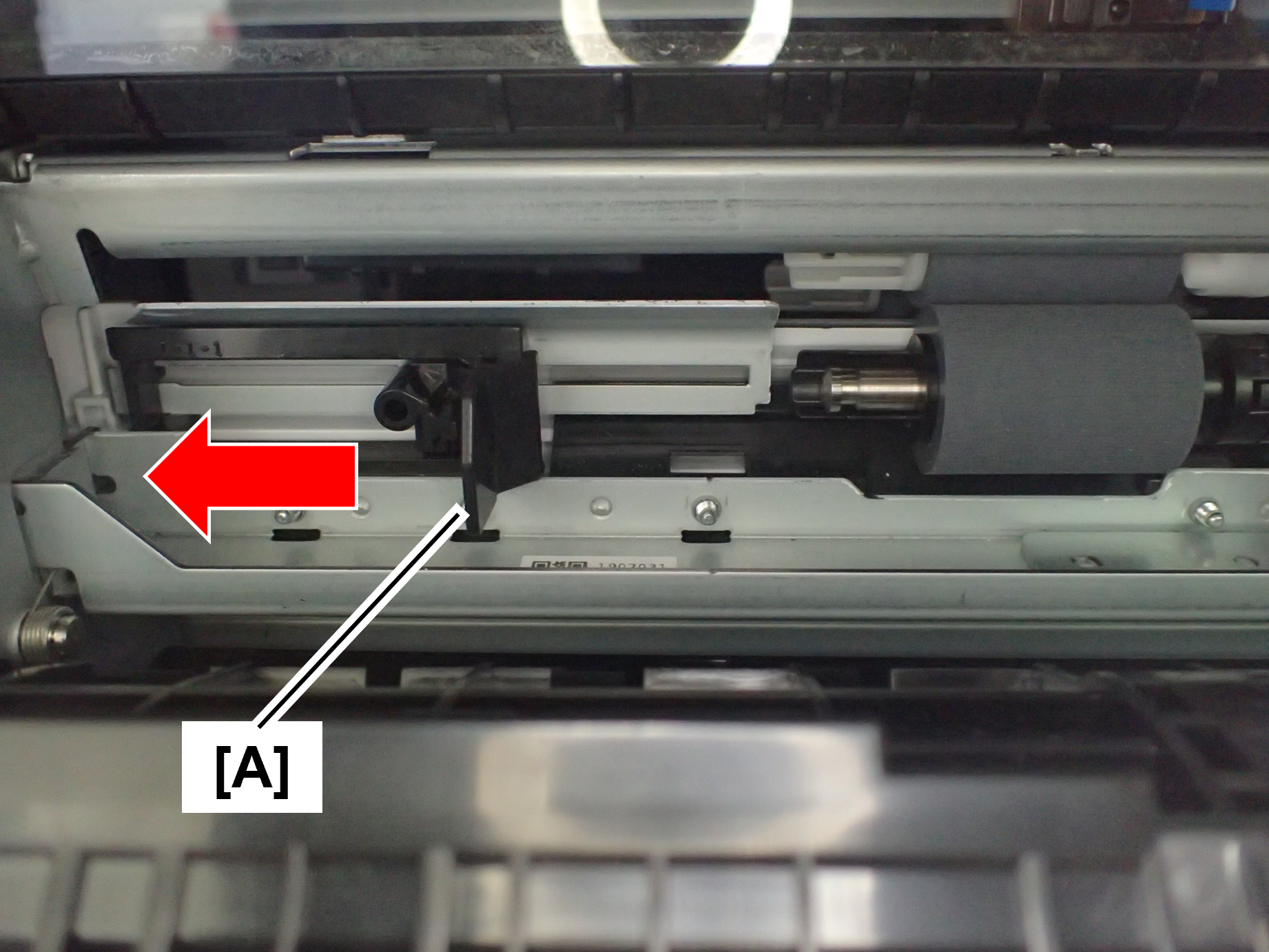

Slide the guide cover (A) in the direction of the arrow.
Assembly / 組み立てAfter replacing the paper feed roller, return the guide cover.

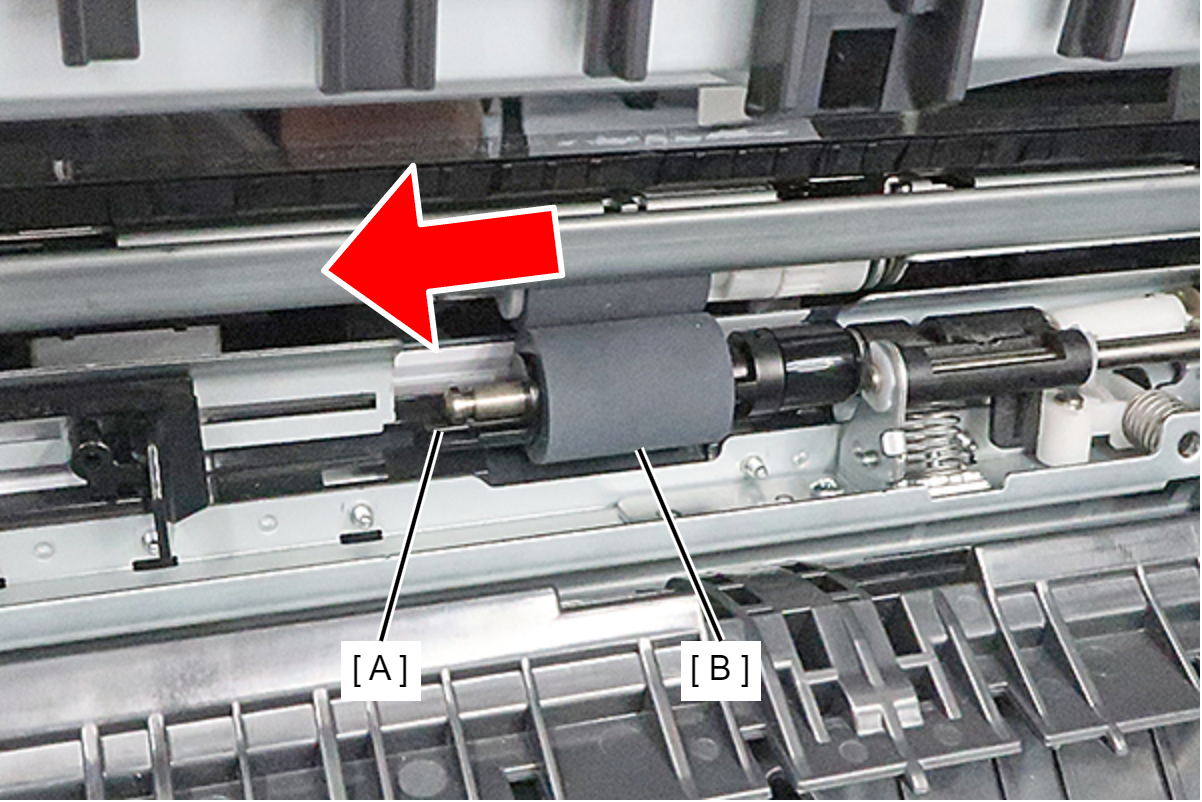

- While pushing the hook (A), remove the C1 pickup roller (B) and C1 separation roller (C) in the direction of the arrow.

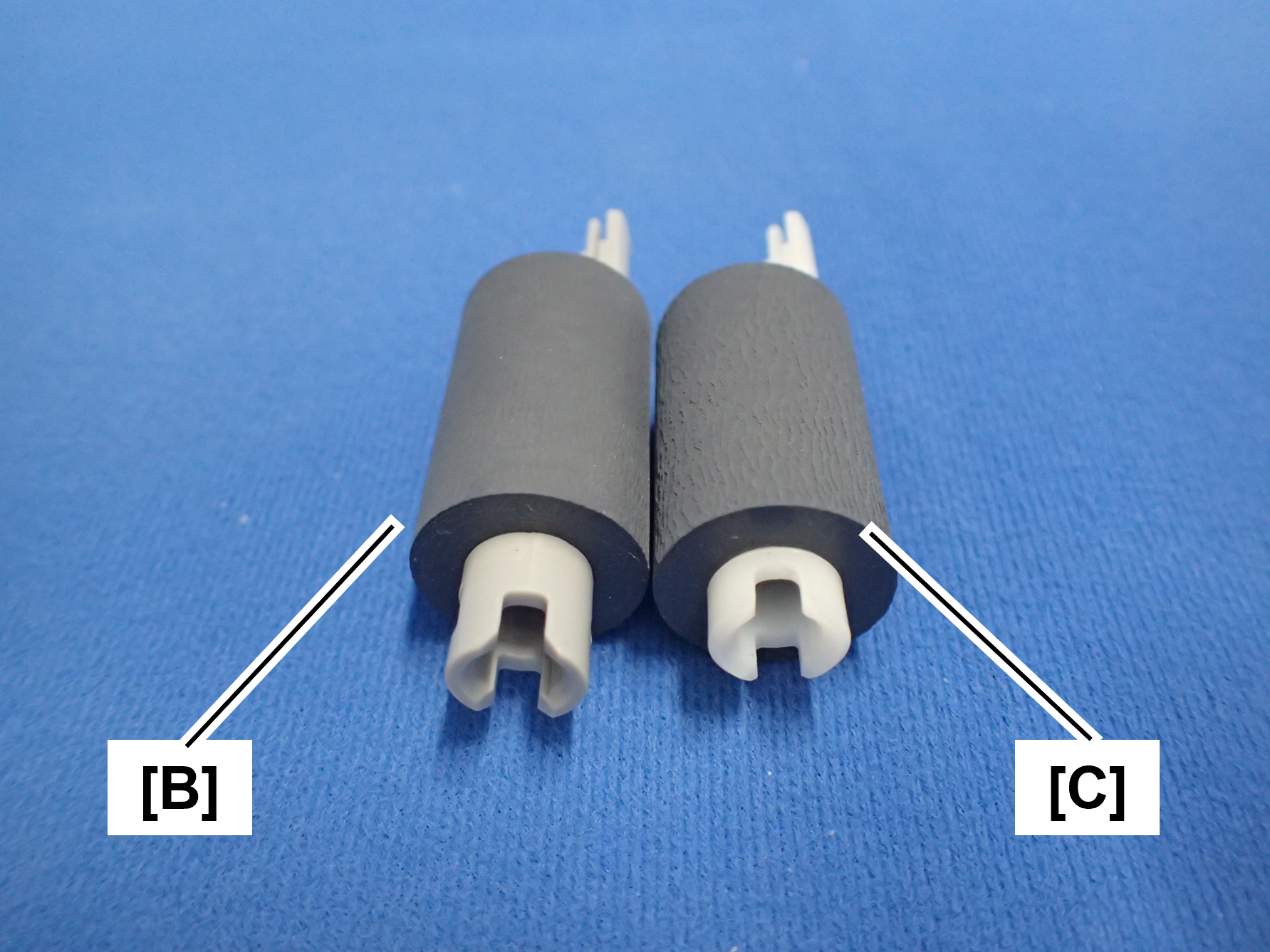

Check Point / チェックポイントThe paper feed roller (B) and separation roller (C) are different in shape and color. (The paper feed roller is gray and the separation roller is white.)

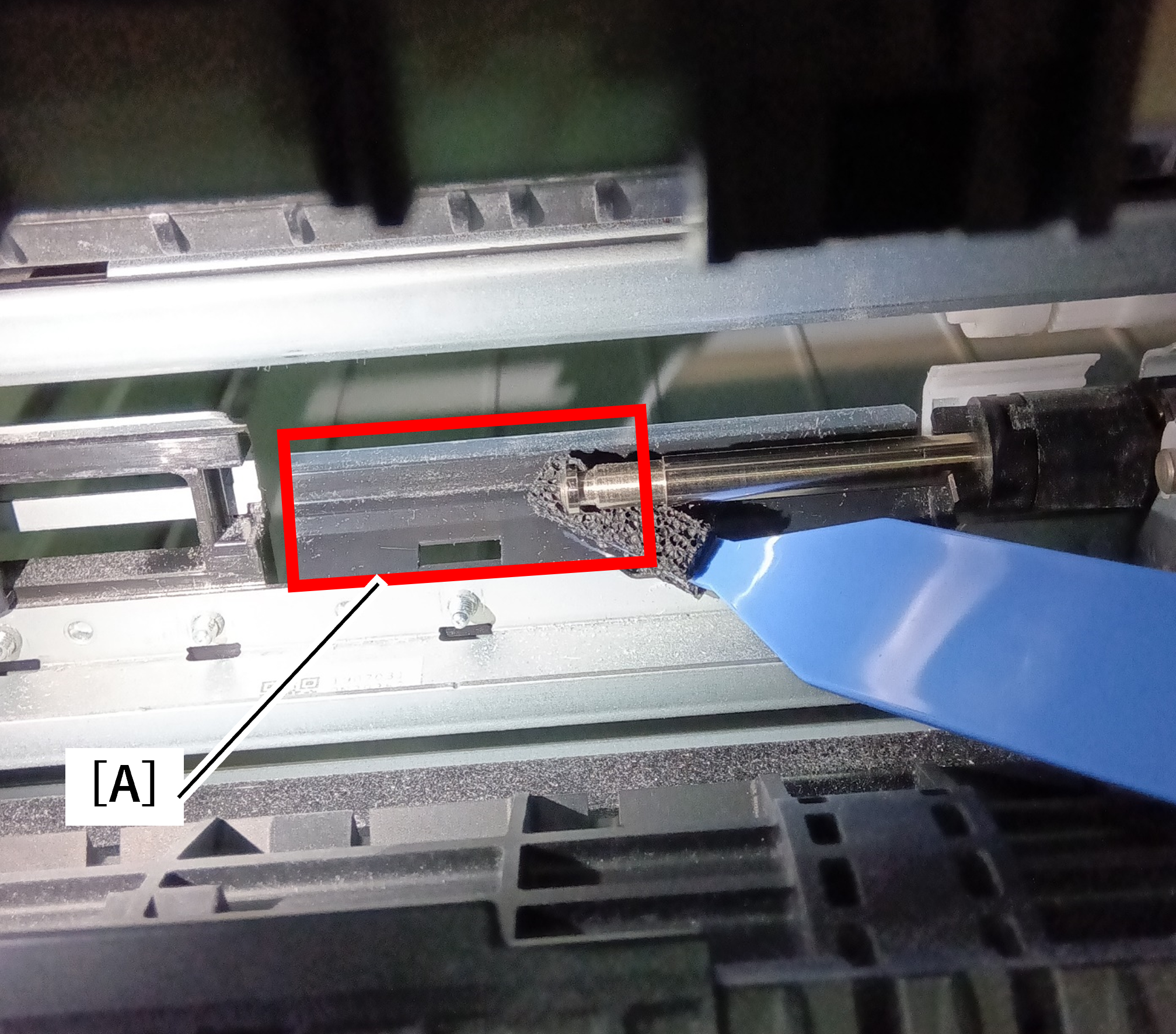

Assembly / 組み立てWhen installing the rollers, paper dust from the pickup unit may adhere to the rollers.
If paper dust is present in area (A), clean it with a cleaning stick before installing the rollers.
Align the protrusion (A) of the gear with the groove (B) of the pickup roller.
- Open the right door unit (A).

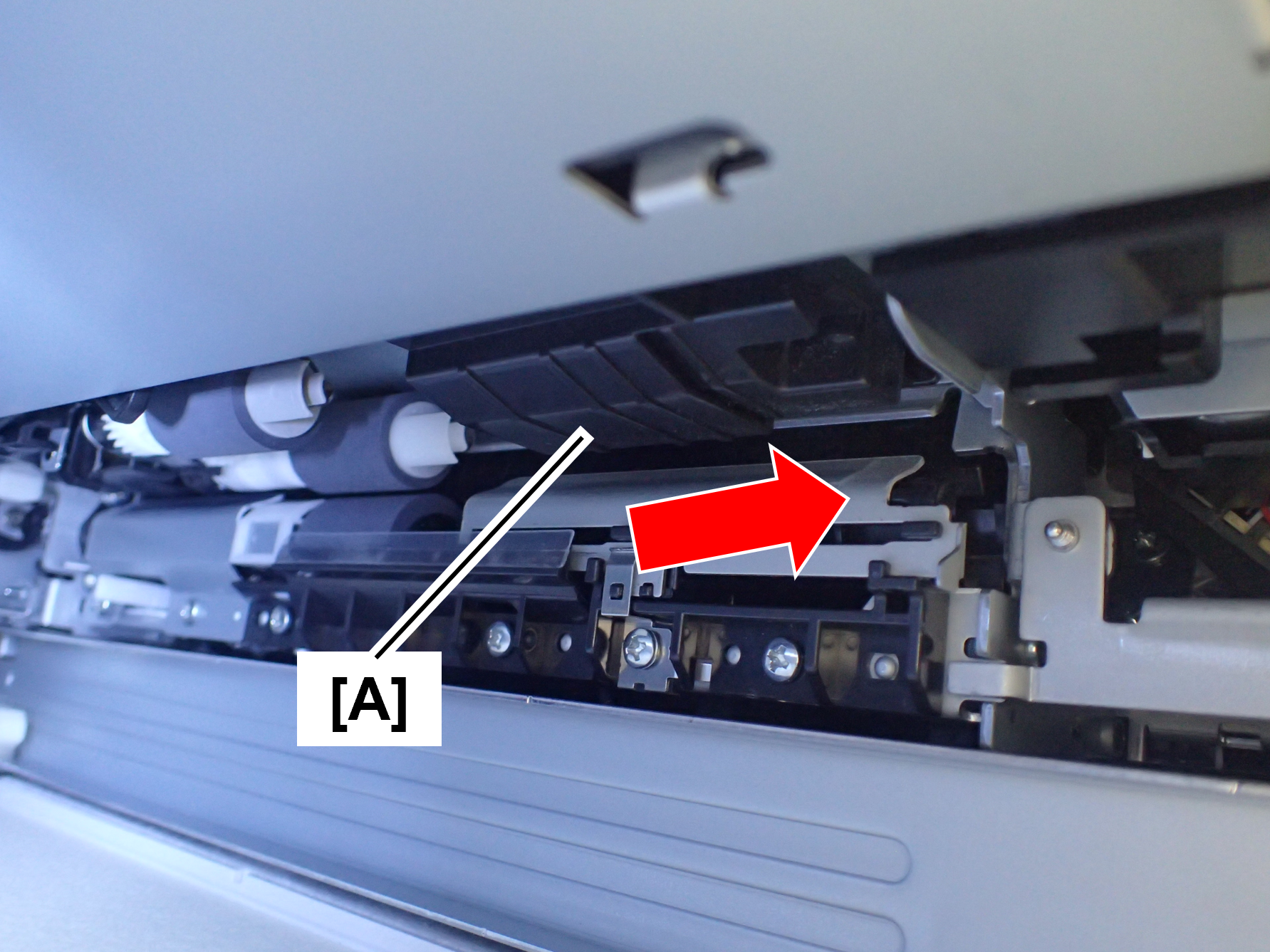

Slide the lock lever (A) in the direction of the arrow.
Assembly / 組み立てAfter replacing the retard roller, return the lock lever.
- While pushing the hook (A), remove the C1 retard roller (B) in the direction of the arrow.
Check Point / チェックポイントBe sure to replace C1 Pickup Roller, C1 Separation Roller, and C1 Retard Roller with new items as a set.

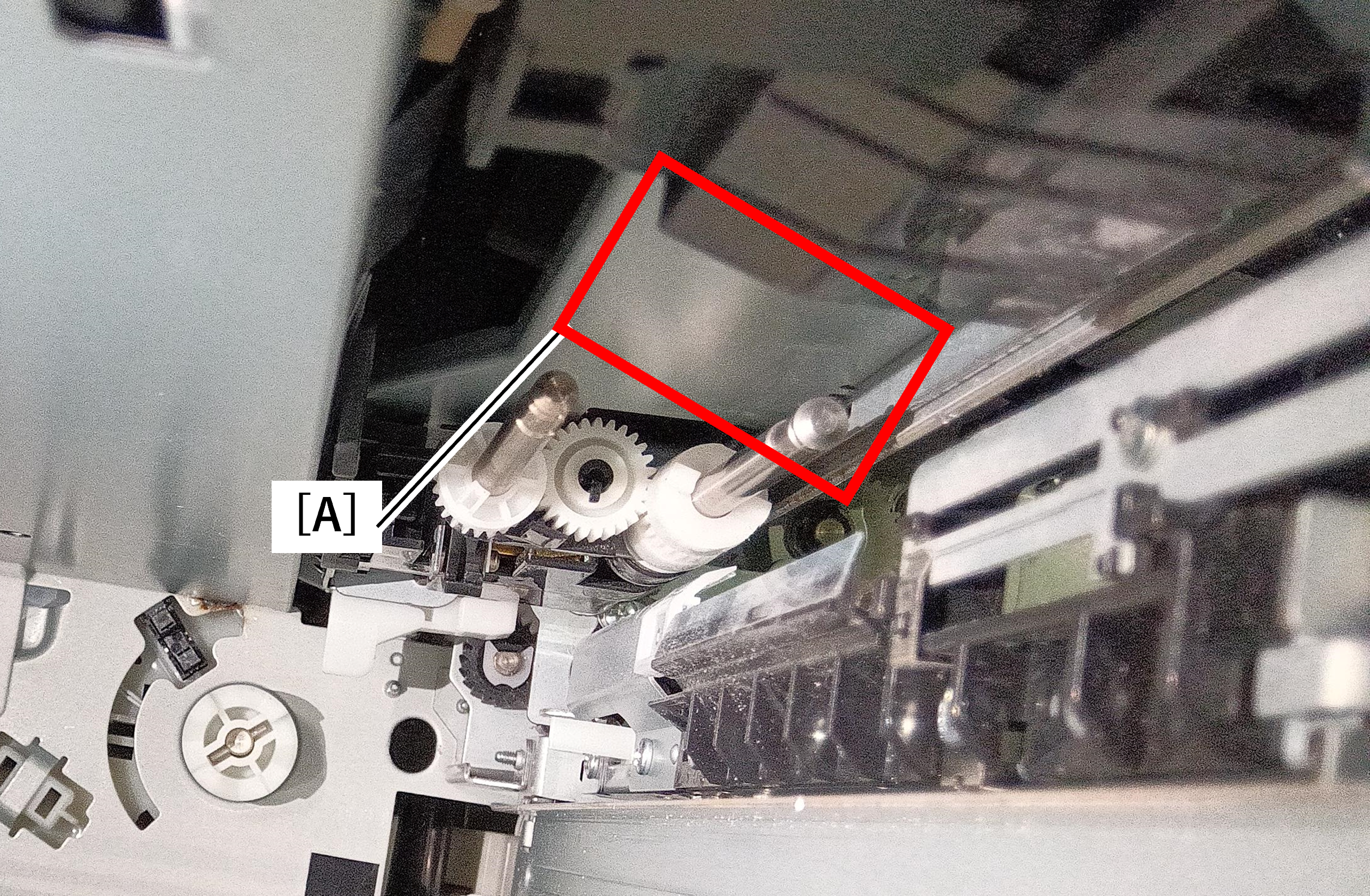

Assembly / 組み立てWhen installing the roller, paper dust from the pickup unit may adhere to the roller.
If paper dust is present in area (A), clean it with a cleaning stick before installing the roller.
| Check Point / チェックポイント |
After replacing this part, you need to run the menu from the service support mode. (If you ran the Before-replacement menu before replacing the part, it will start automatically when you turn the power on.) |
