# ADF Pickup Roller - Before replacement

1. Start service support mode.

   Select [05 Adjustment for Replacement Parts].
2.
3. Select [ADF / SCN] tab.

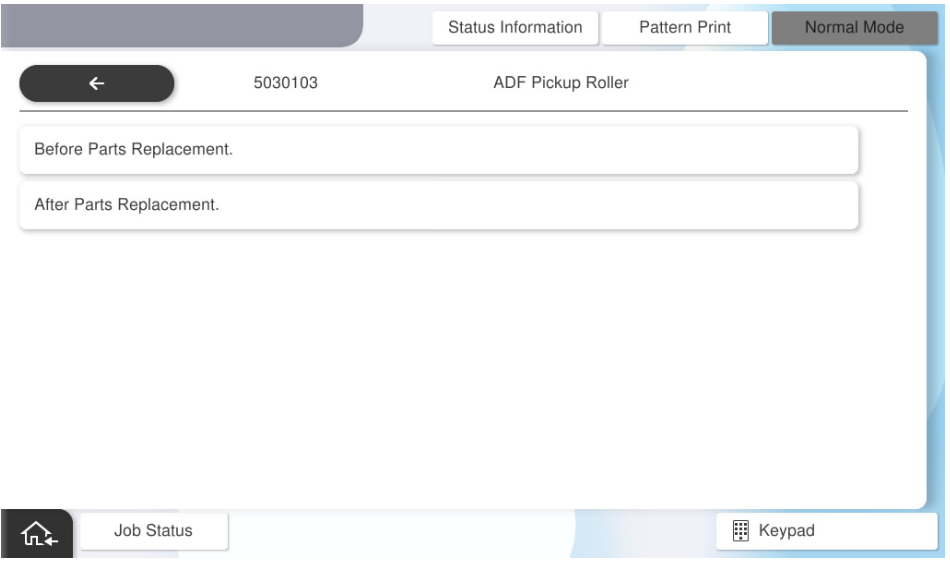

4. Select［5030103 ADF Pickup Roller］

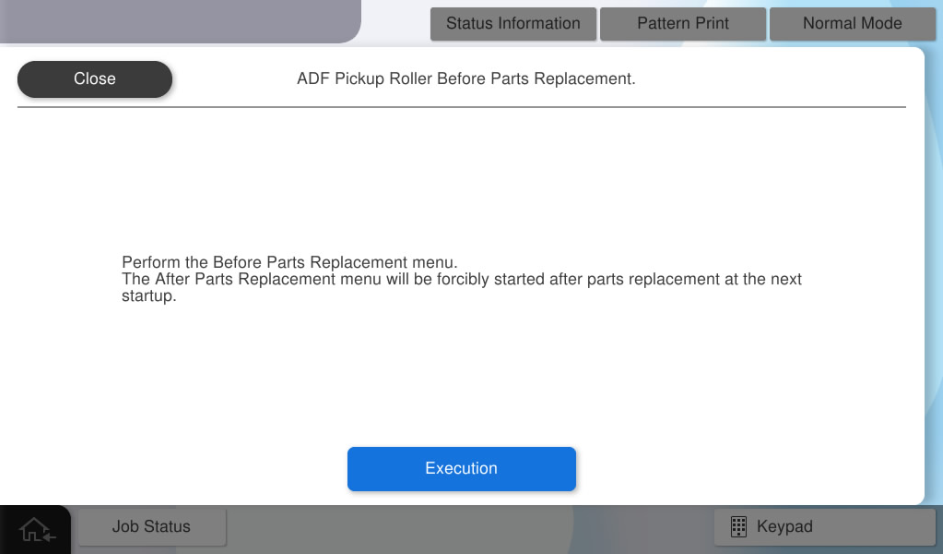

5. Select [Before Parts Replacement].

6. Press [Execution].

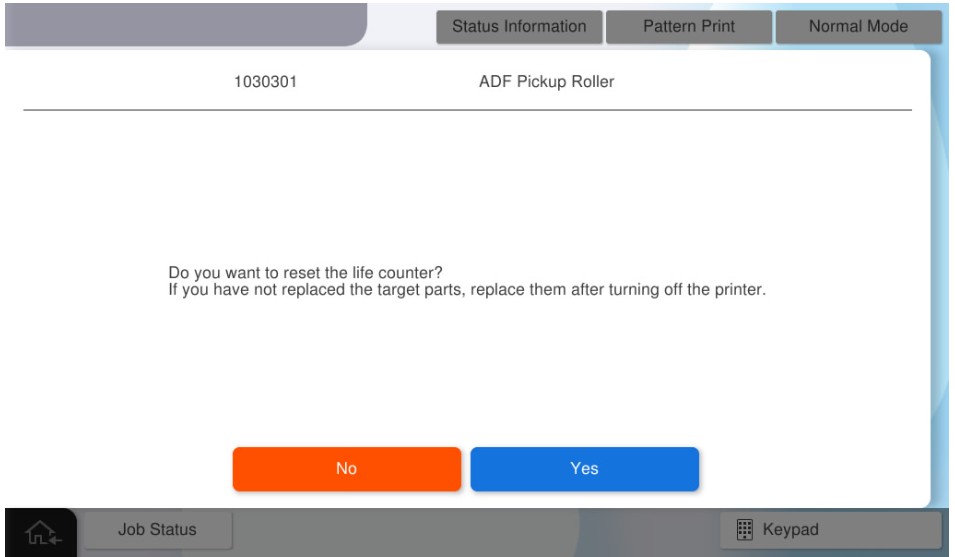

7. Press [Yes] to reset the counter.

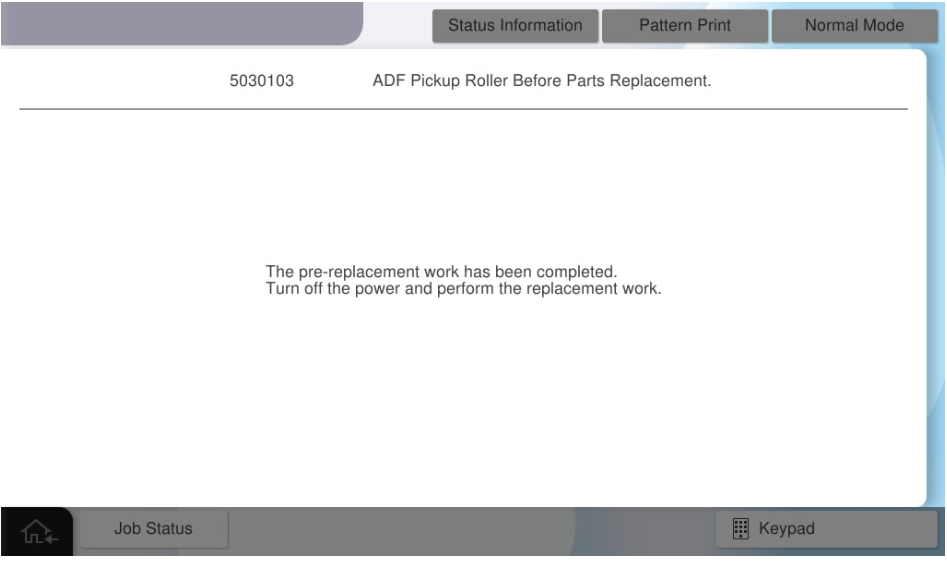

8. Turn Off the main unit when the following screen is displayed.

   After replacement menu will start automatically at next startup.
