Additional Right Decorative Cover Sub

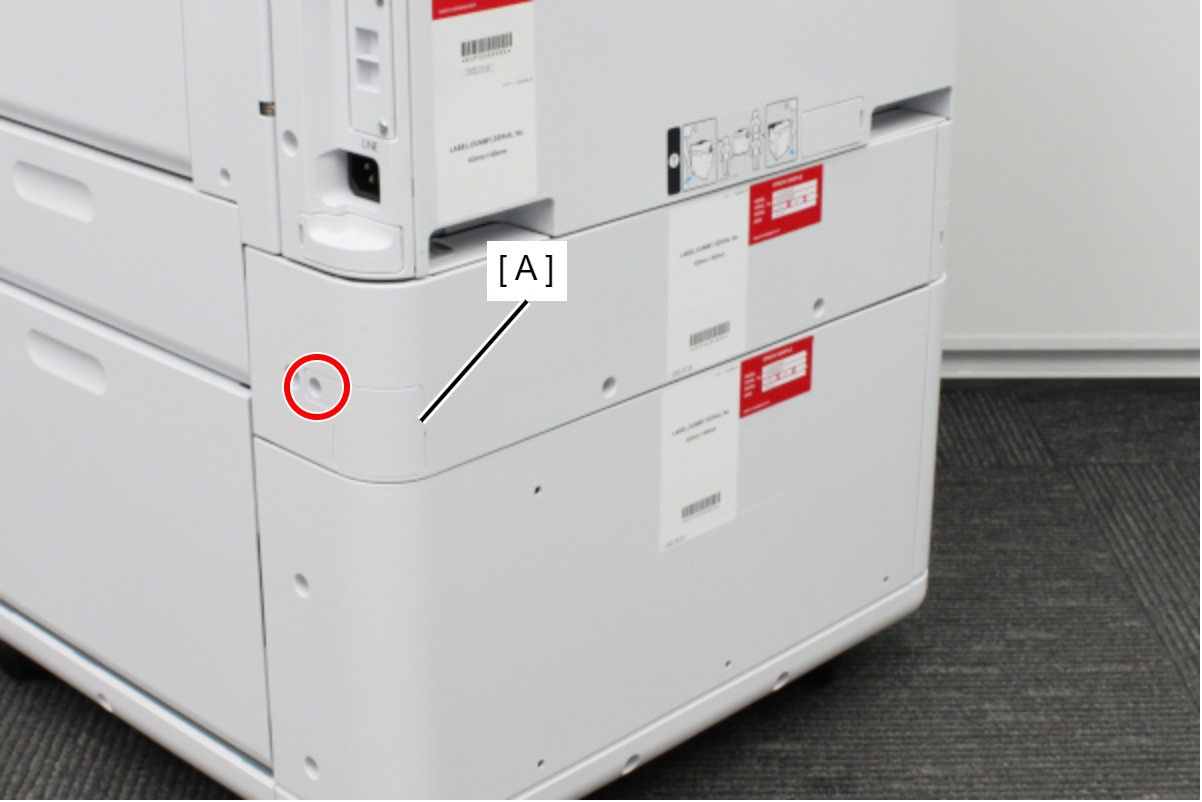

- Remove the 1 screw and remove the Additional Right Decorative Cover Sub (A).
: 3x8D
