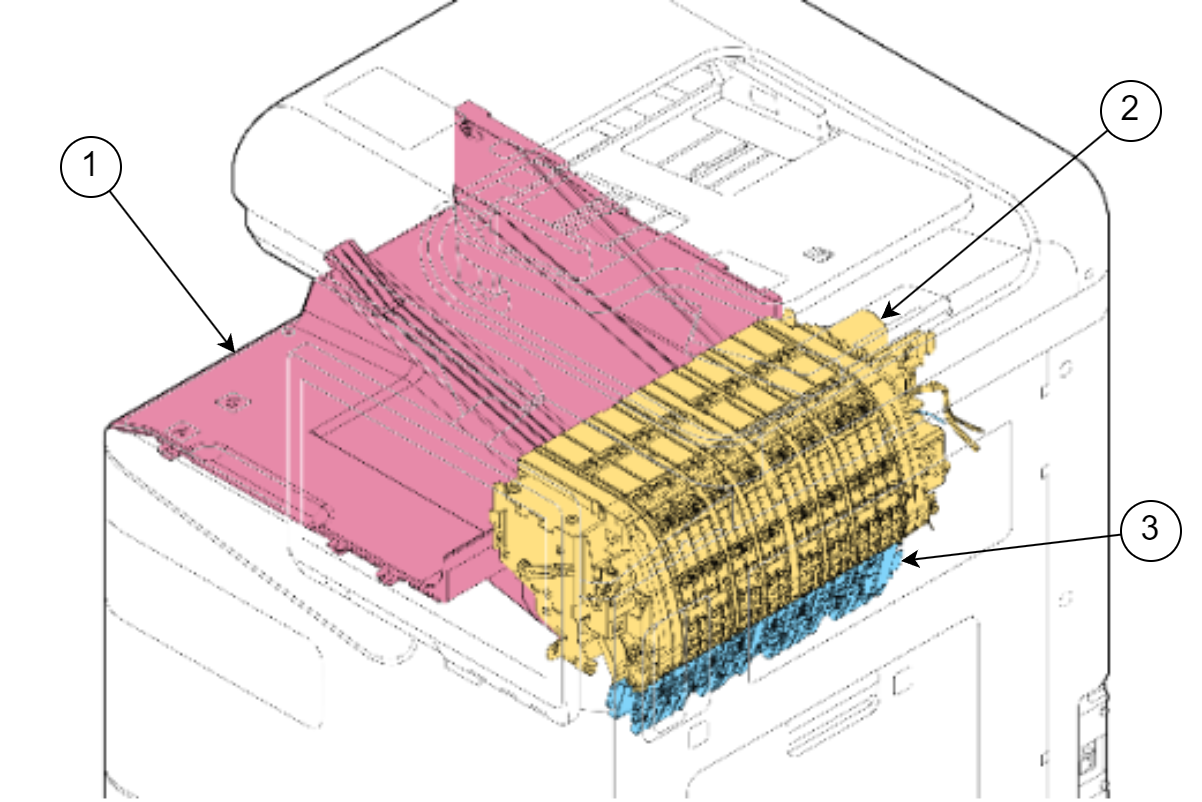

Paper Ejection (EJ)
| No. | Name |
|---|---|
| 1 | FD Stacker Assy |
| 2 | EJ Unit Assy |
| 3 | Post-Head Paper Guide Assy |
