# PF Clutch 1

1. Remove the 3 screws and remove the Right Cover (A).


   • : 3x8D
2. Remove the 5 screws and pull the rear cover (A) toward to remove it.



   • : 3x8D

   Assembly / 組み立て

   Confirm that the rear cover is not floating. The positioning pin (A) may not fit into the hole (B).

3. Remove 3 screws and remove the I/F Slot Inlet Assy (A).


   • : 3x8D

   Assembly / 組み立て

   The screw shown in the figure must be fastened together with the ground wire (A).

4. Remove the cable from the connector (A) and remove the I/F Slot Inlet Assy (B).

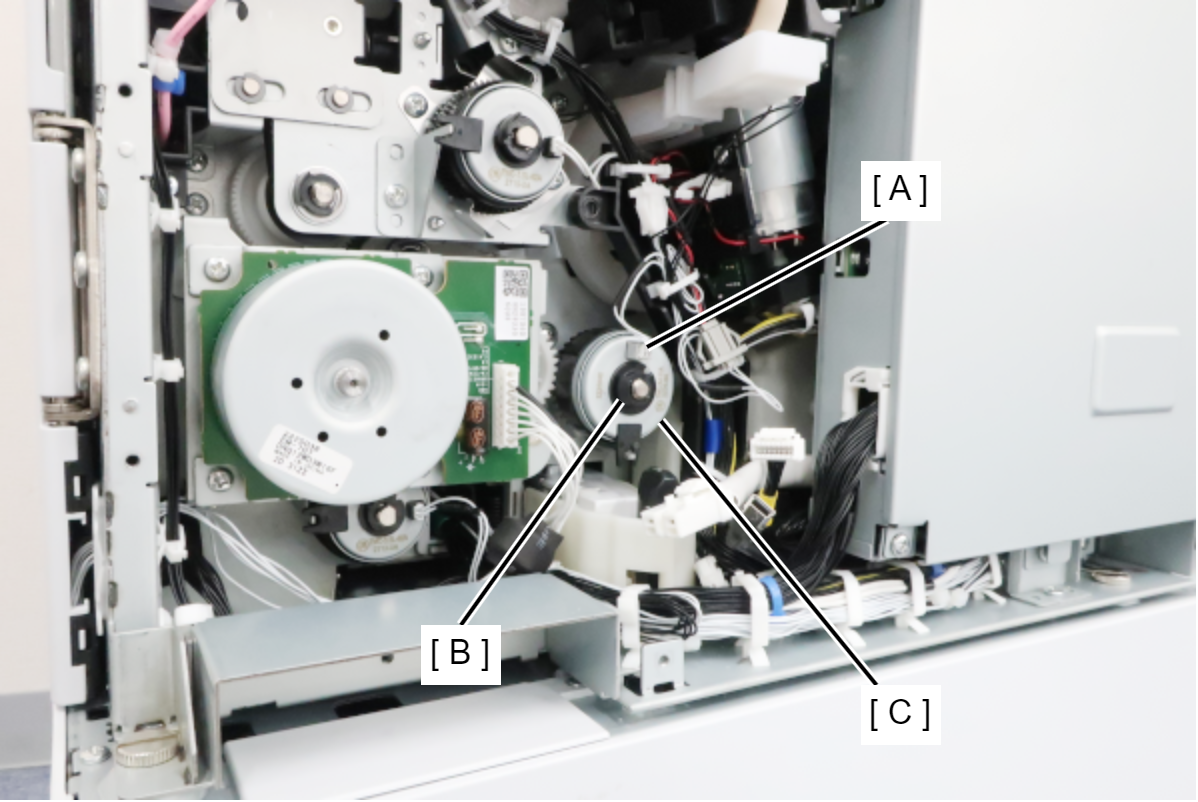

5. Remove the cable from the connector (A), remove the C-ring (B), and the C1 Pickup Clutch (C).

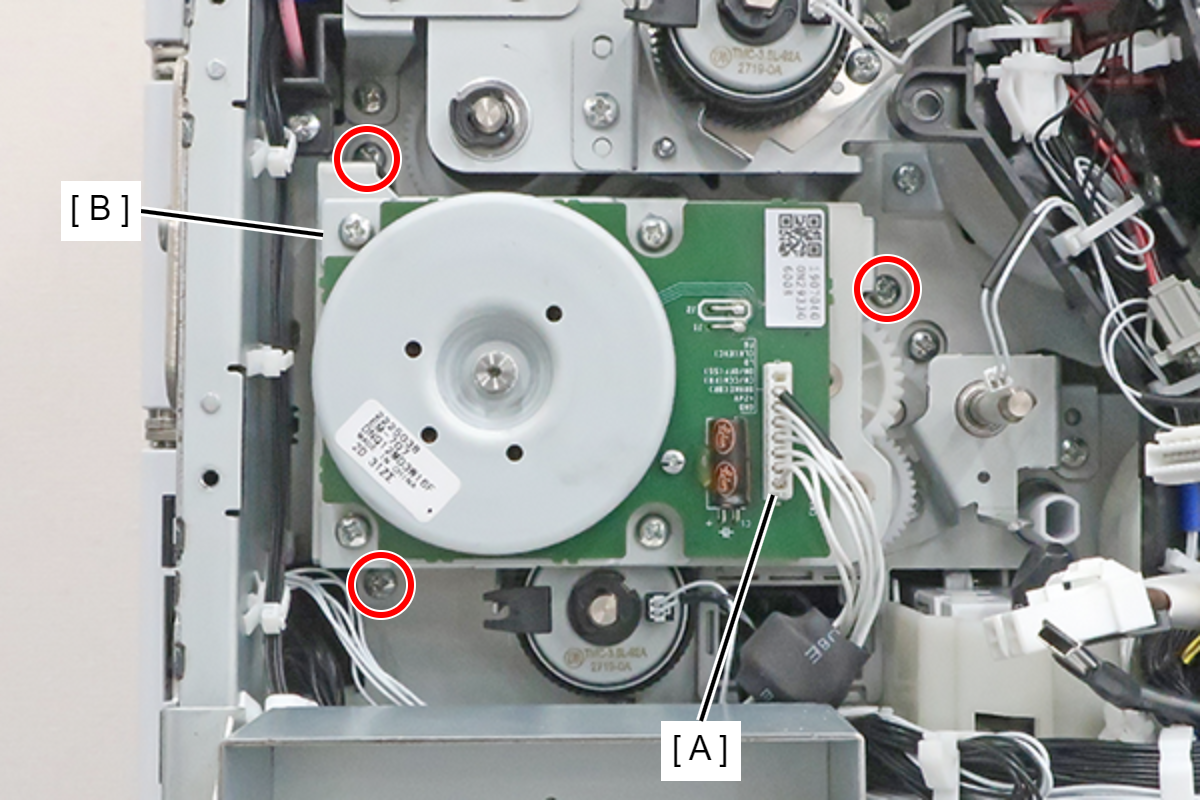

6. Remove the cable from the connector (A), remove the 3 screws, and remove the PF Motor Plate (B).


   • : 3x8D

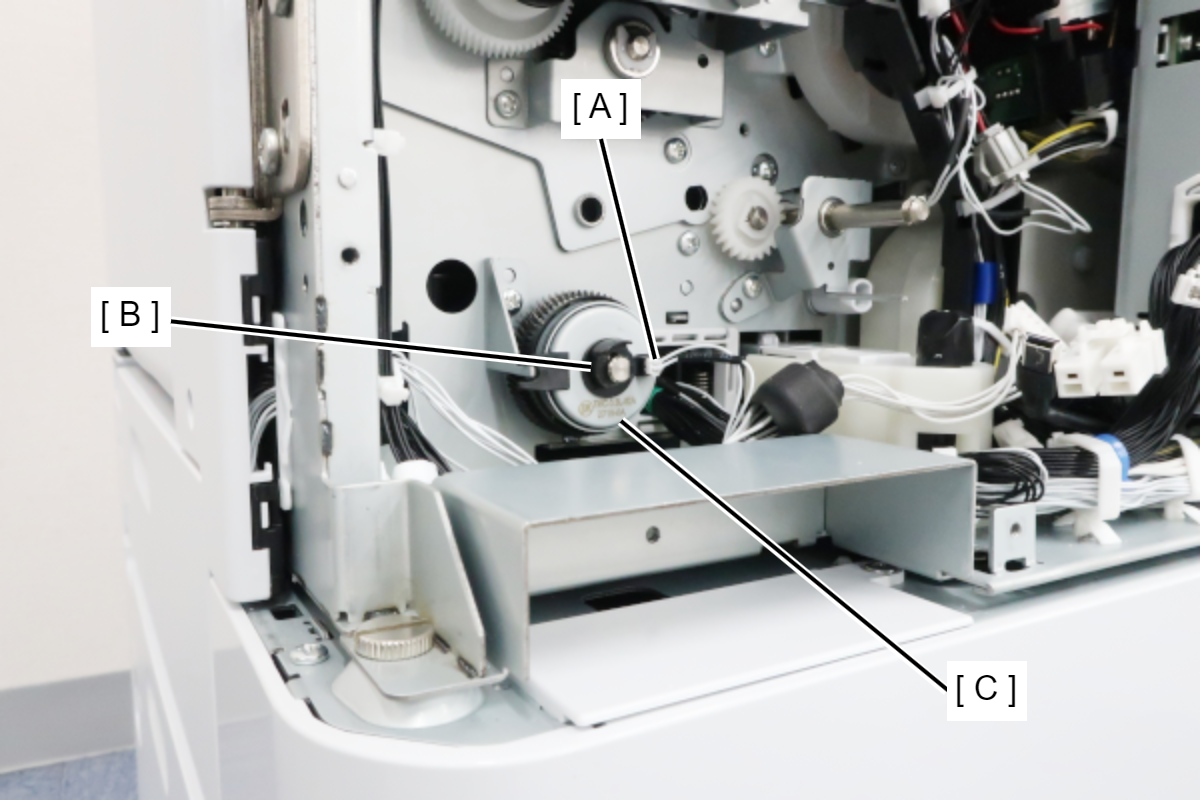

7. Remove the cable from the connector (A), remove the C-ring (B), and remove the paper feed clutch (C).
