# High Voltage Board

1. Remove the 3 screws and remove the Right Cover (A).


   • : 3x8D
2. Remove the 5 screws and pull the rear cover (A) toward to remove it.



   • : 3x8D

   Assembly / 組み立て

   Confirm that the rear cover is not floating. The positioning pin (A) may not fit into the hole (B).

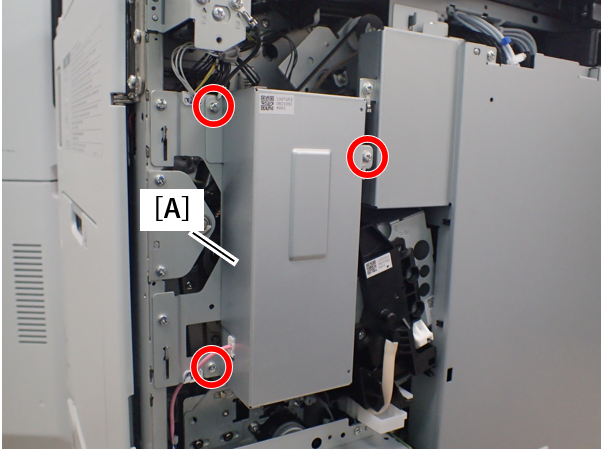

3. Remove 3 screws and remove the High Voltage Board Cover (A).



   • : 3x8D

   Assembly / 組み立て

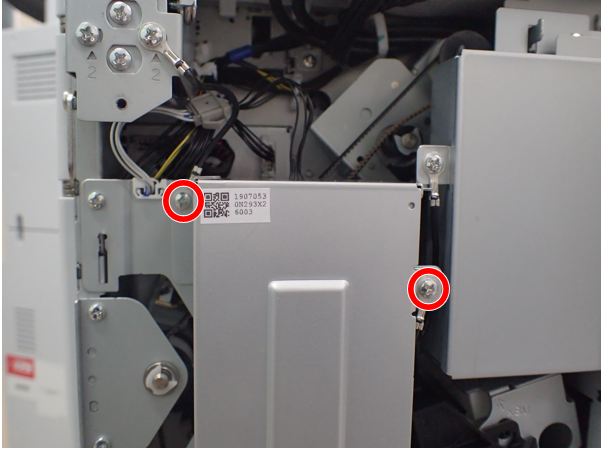

   The screw shown in the figure must be fastened together with the ground wire (A).

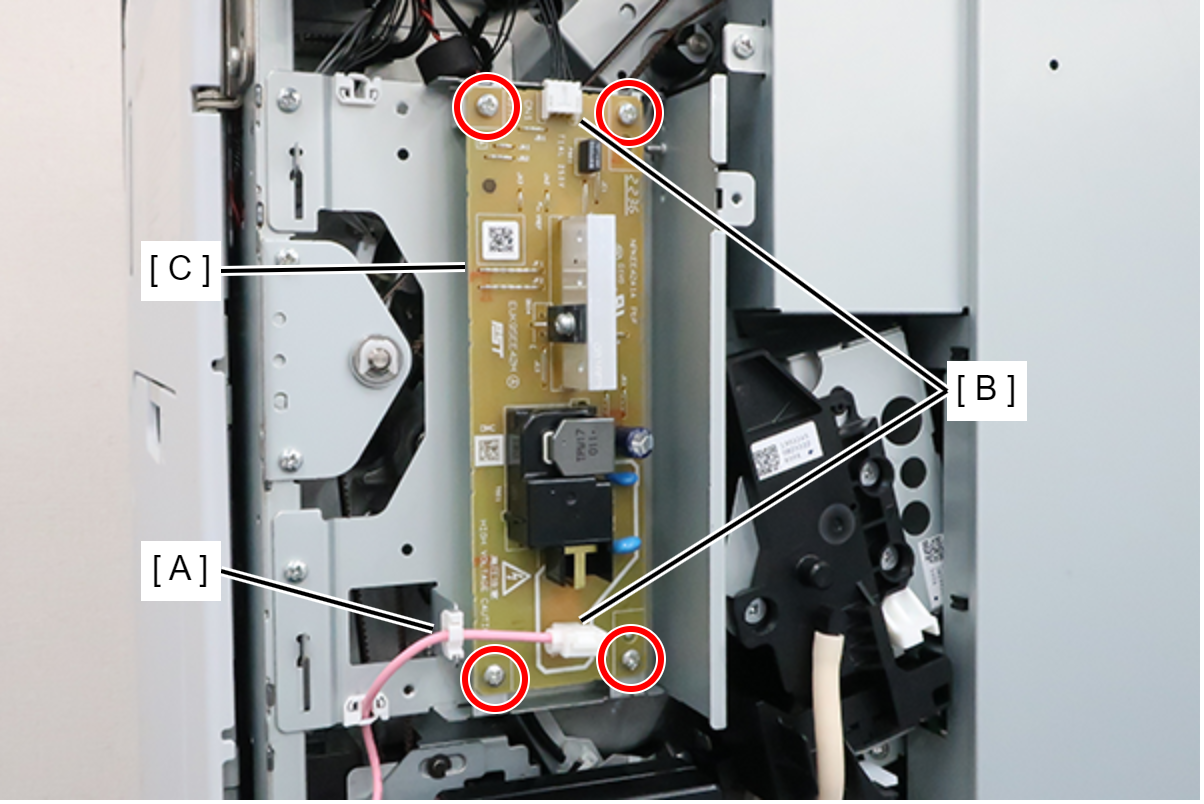

4. Release the cable from the clamp (A) and disconnect the cable from the 2 connectors (B).
5. Remove 4 screws, then remove the High Voltage Board (C).


   • : 3x8D
