Registration Roller Assy

  1. Remove the 3 screws and remove the Right Cover (A).

    • : 3x8D
  2. Remove the 5 screws and pull the rear cover (A) toward to remove it.

    • : 3x8D

    Assembly / 組み立て

    Confirm that the rear cover is not floating. The positioning pin (A) may not fit into the hole (B).
  3. Remove 3 screws and remove the I/F Slot Inlet Assy (A).

    • : 3x8D
    Assembly / 組み立て

    The screw shown in the figure must be fastened together with the ground wire (A).
  4. Remove the cable from the connector (A) and remove the I/F Slot Inlet Assy (B).
  5. Remove the cable from the connector (A), remove the C-ring (B), and Resist Clutch Rear (C).
  6. Remove the 1 screw and avoid the Wiring Rail (A) in the direction of the arrow.

    • : 3x8D
  7. Remove the C-Ring (A) and bearing (B), remove the 3 screws, and then remove the Clutch Retainer Plate (C).

    • : 3x8D
  8. Disconnect the cable from the connector (A), after removing the C-ring, remove the registration roller brake clutch (B).
  9. Open the right door unit (A).


    Assembly / 組み立て

    When closing the right door unit, it may not close due to interference with the tumbler (A) that was tilted toward the front when other parts were repaired.

    If the right door unit does not close, check the position of the tumbler, and if it is protruding toward the front, fit the tip of the tumbler plate (C) into the hole (B) in the main unit.
  10. Remove 1 screw and remove the connector cover belt front (A) by sliding it toward you.
    • : 3x8D
  11. Disconnect the cables from the 2 connectors (A).
  12. Remove the screw fixing the Connector Cover Belt Rear (A).

    • : 3x6M
  13. Tilt the Connector Cover Belt Rear (A) toward you and then slightly slide it to the left to disengage the upper hook.
  14. Slide the Connector Cover Belt Rear (A) upward to disengage the lower hook, and remove it.


    Assembly / 組み立て

    Follow the steps below to install the Connector Cover Belt Rear. Be careful not to let the high-voltage cable get caught between the cover and other components.

    1. Pass the high-voltage cable (B) through the cutout of Connector Cover Belt Rear (A) as shown below, and then insert the lower hook of the cover.
    2. Engage the upper hook with the hole, and attach the Connector Cover Belt Rear (A).
    3. Make sure that it is installed properly.
      • OK
      • NG
    4. Check that the high-voltage cable (A) is not stuck in between the cover and components by moving the cable.
      If the high-voltage cable does not move, it is stuck in between them, so remove and reinstall the Connector Cover Belt Rear (B).
  15. Remove the 2 screws and remove the Belt Attached Component Front (A).

    • : 3x6M
    Assembly / 組み立て

    Fit the body frames plates (B) into the two grooves of the Belt Attached Component Front (A).

    OK

    NG
  16. Remove the screw and remove the High Voltage Cable Cover (A).

    • : 3x8D
    Assembly / 組み立て

    Align the High Voltage Cable Cover (A) with the rail portion (B) and install.
  17. Disconnect the cable from the connector (A), remove the 2 screws, and remove the Belt Attached Component Rear.
    • : 3x6M
    Assembly / 組み立て

    Fit the body frames plates (B) into the two grooves of the Belt Attached Component Rear (A).

    OK

    NG
  18. Remove the high voltage cable (A), and release it from the clamp (B).
  19. Pull the lever (A) to open the belt unit (B).
  20. Remove the C-ring (A), and remove the Belt Arm (C) from the shaft of the Belt Unit (B).


    Caution / 注意

    When the belt arm (C) is removed, the Belt unit (B) will drop.

    Remove the belt arm (C) while holding the Belt unit (B).
  21. While holding the Belt Unit (A) with both hands, pull it out horizontally toward the front and remove the Belt Unit.


    Caution / 注意

    Do not touch the belt surface (A) of the belt unit.
    Assembly / 組み立て
    • When installing the Belt Unit (A), insert it from the rear surface side bearing (B).
    • After installing the Belt Unit (A), confirm that the front side bearing (B) is properly set on the rail (C) of the main unit.
  22. Disconnect the cables from the 2 connectors (A).
  23. Release the cable from the clamp (A) and cable guide (B).
  24. Remove 1 screw and slide the Anti Static Brush Unit (A) in the direction of the arrow to remove it.

    • : 3x8M
    Assembly / 組み立て

    Push up the cam (A) toward the back and slide the Anti Static Brush Unit (B) toward the front to attach it.
  25. Remove the C1 cassette (A).
  26. Open the Front Cover (A).
  27. Remove the Maintenance Box (A).
  28. Remove the 7 screws and remove the Front Inner Cover (A).

    • : 3x8D
    • : 3x8D/BK
    Assembly / 組み立て

    Insert the protrusion (A) of the Front Inner Cover into the hole (B) of the main unit and install.
    Note / 補足

    If the wireless LAN unit (A) is installed, remove it.
  29. Remove the cable from the relay connector (A), remove the 2 screws, and remove the Shutter Release Solenoid (B).

    • : 3x8D
    Assembly / 組み立て

    Install the Shutter Release Solenoid so that its lever (A) is closer to you than the lever (B) of Resit Roller Assy.

    OK

    NG

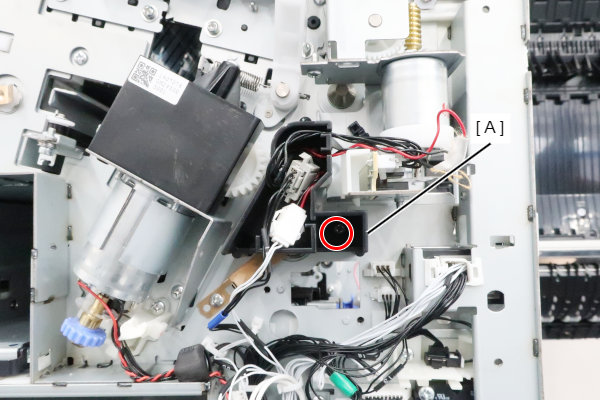

  30. Release the cable routing, remove the 1 screw, and remove the case (A).

    • : 3x8D

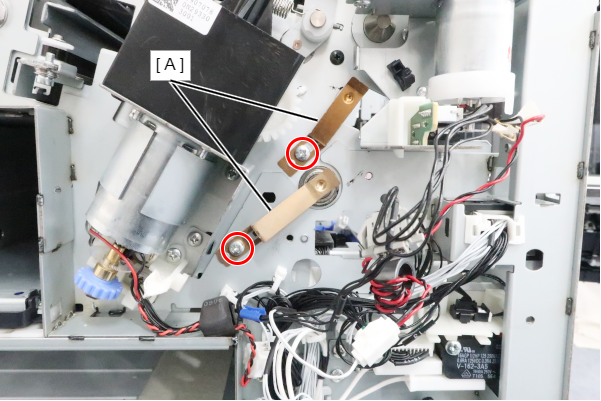

  31. Remove 2 screws and remove the 2 earth plates (A).

    • : 3x8D

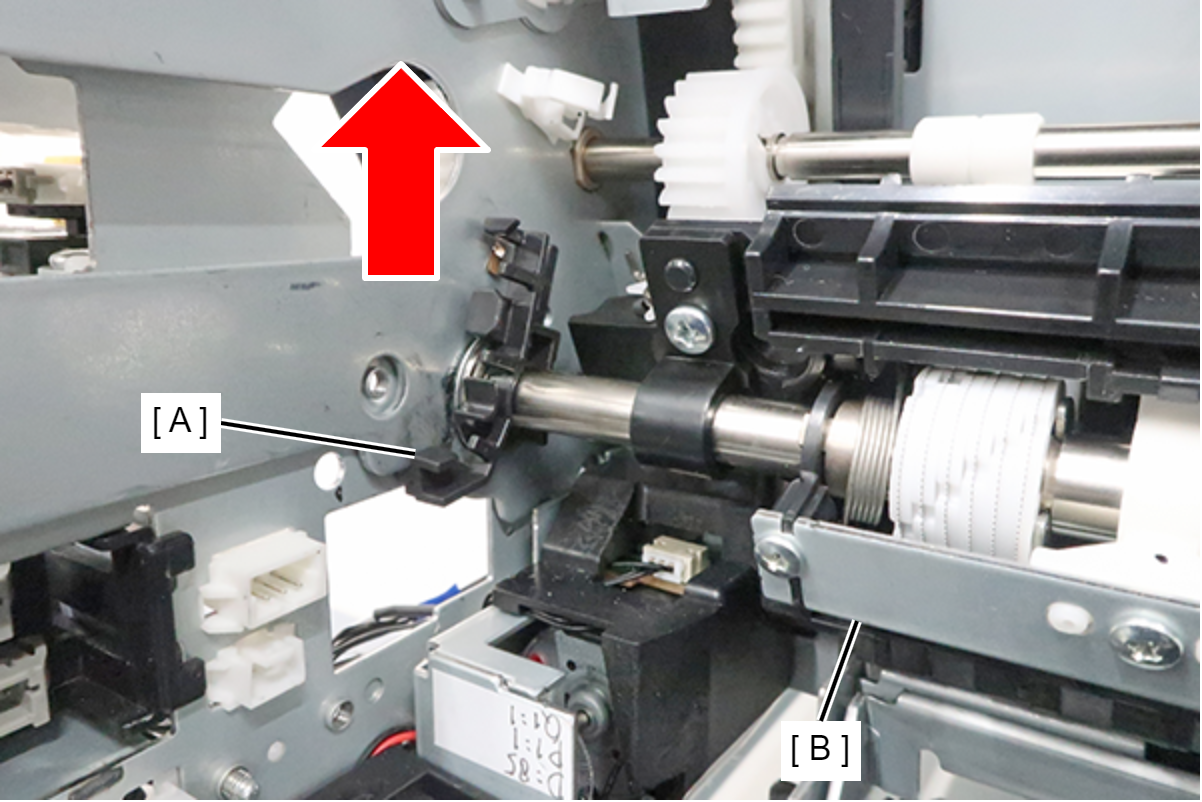

  32. Remove the Anti Static Brush wiring path (A) from the Registration Roller Assy (B) shaft.

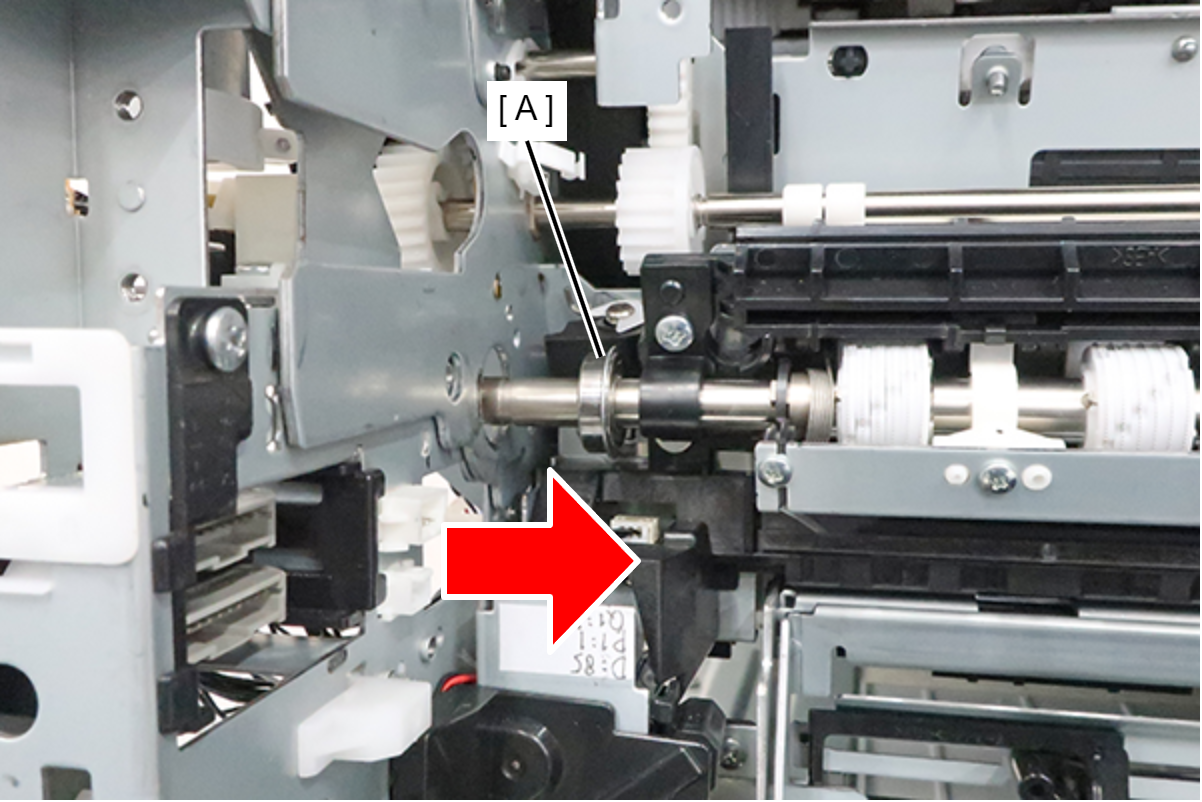

  33. Remove the bearing (A) from the hole in the frame.

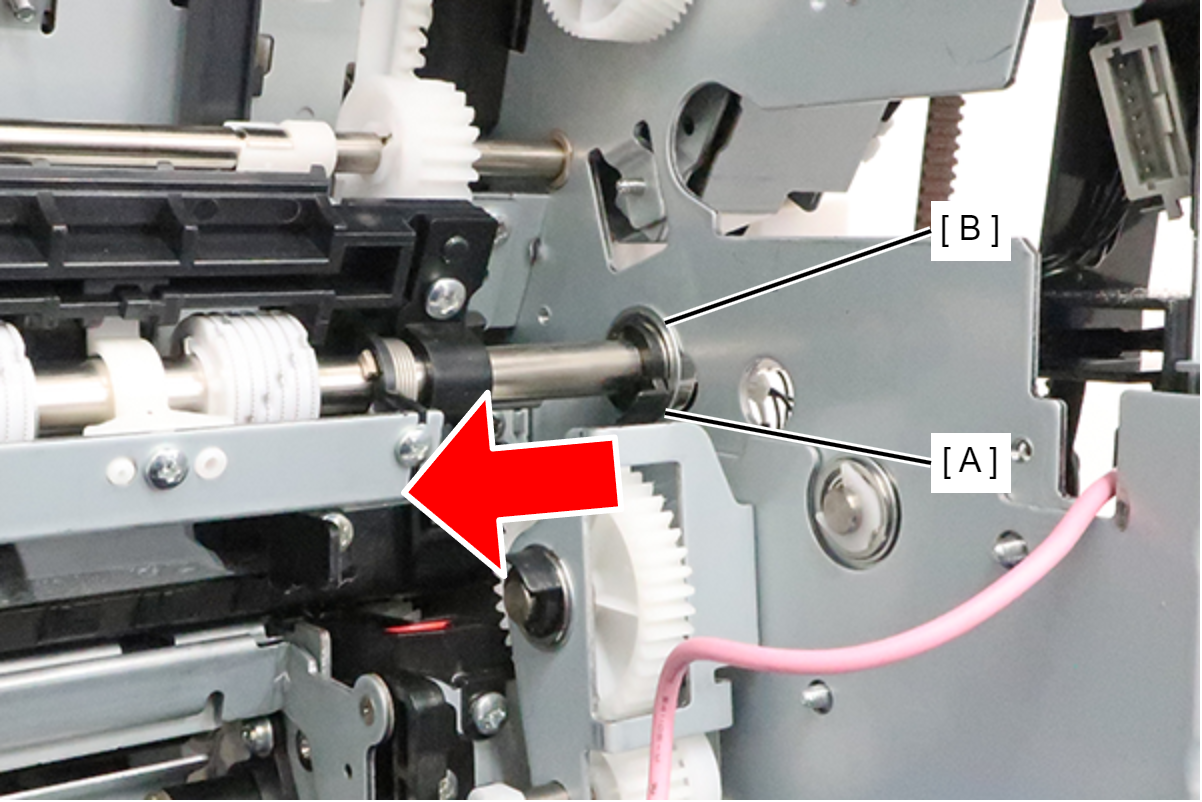

  34. Remove the C-Ring (A) and remove the bearing (B) from the hole in the frame.

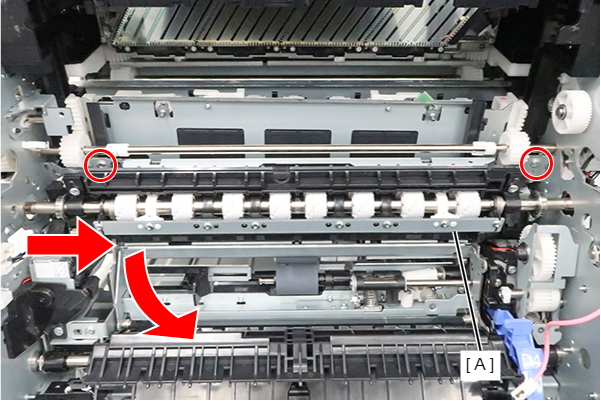

  35. Remove the 2 screws for secure the Registration Roller Assy (A).
  36. Slide the Registration Roller Assy (A) in the direction of the arrow, remove one side of the shaft from the hole in the frame, and remove the Registration Roller Assy.

    • : 3x8D
