Paper Loading (ASF)

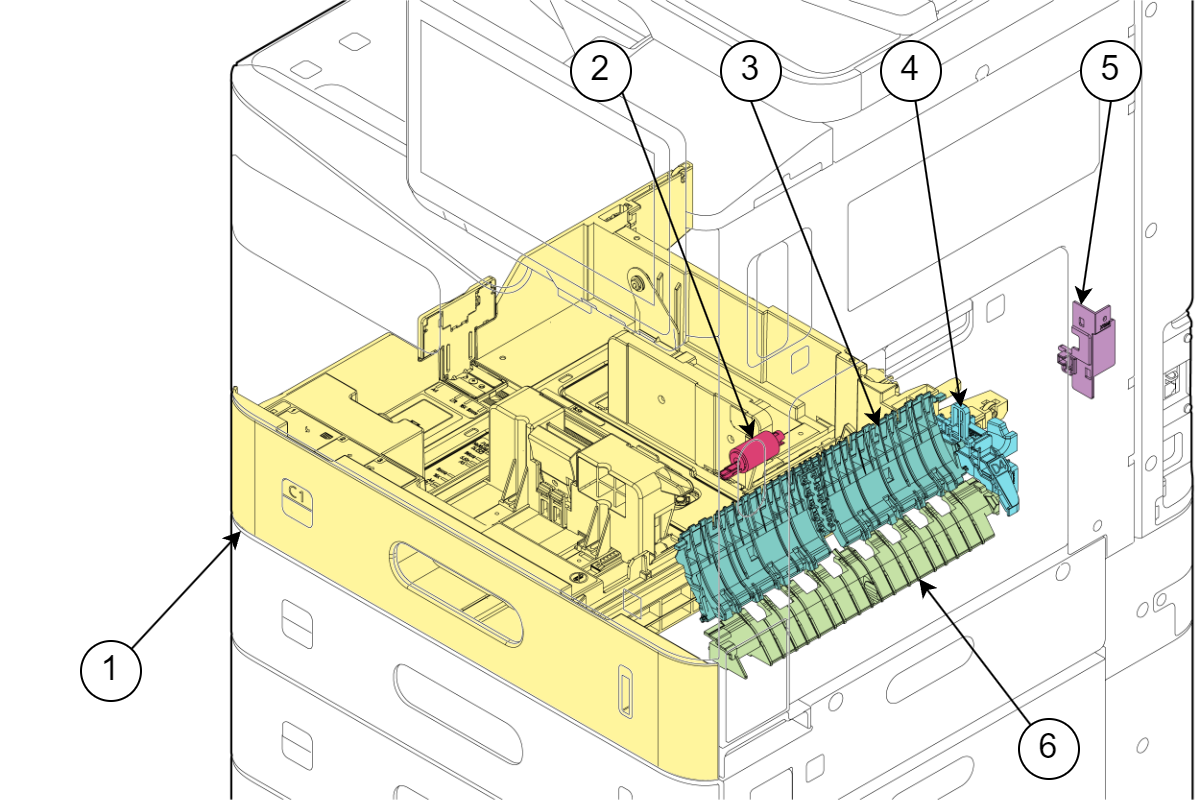

| No. | Name |
|---|---|
| 1 | C1 Cassette |
| 2 | C1 Pickup Roller |
| 3 | Guide PF Inner |
| 4 | Guide PF Inner Lever Assy |
| 5 | Connector Cover Belt Rear |
| 6 | Paper Guide Lower |
| No. | Name |
|---|---|
| 1 | Connector Cover PW |
| 2 | PW sensor unit |
| 3 | Anti Static Brush |
| 4 | High Voltage Cable Cover |
| 5 | C1 Pickup Unit |
| 6 | Connector Cover Belt Front |

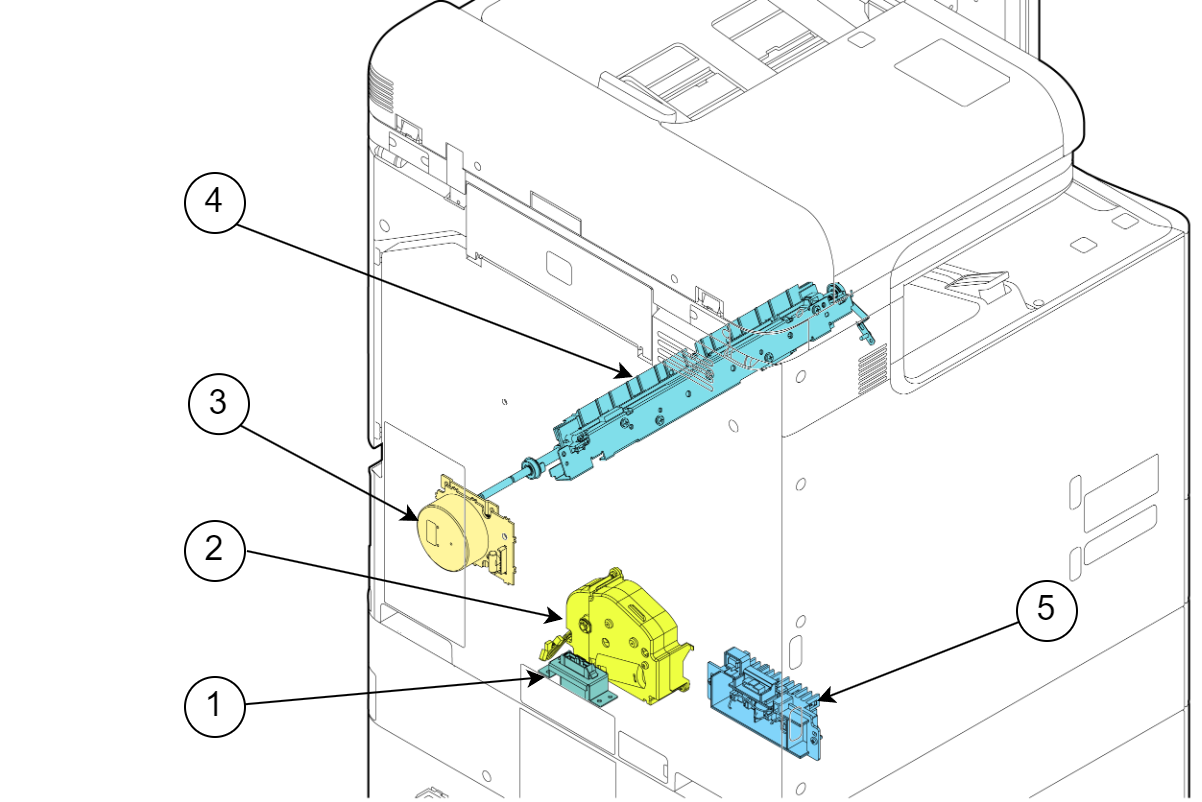

| No. | Name |
|---|---|
| 1 | Drawer Connector |
| 2 | C1 Liftup Motor Assy |
| 3 | All Drive Motor |
| 4 | Registration Roller Assy |
| 5 | C1 Paper Size/Cassette Sensor |
