Exterior Parts_2

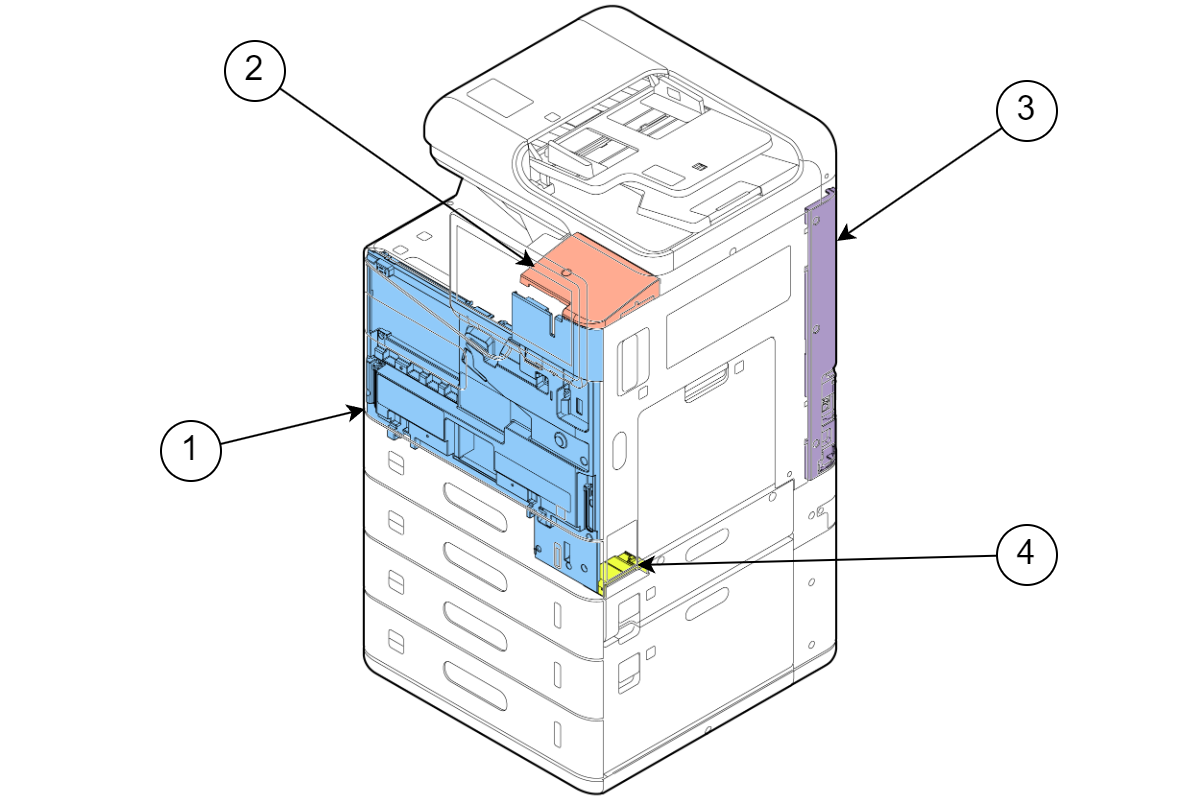

| No. | Name |
|---|---|
| 1 | Front Inner Cover |
| 2 | Panel Upper Cover |
| 3 | Right Cover |
| 4 | Handle |

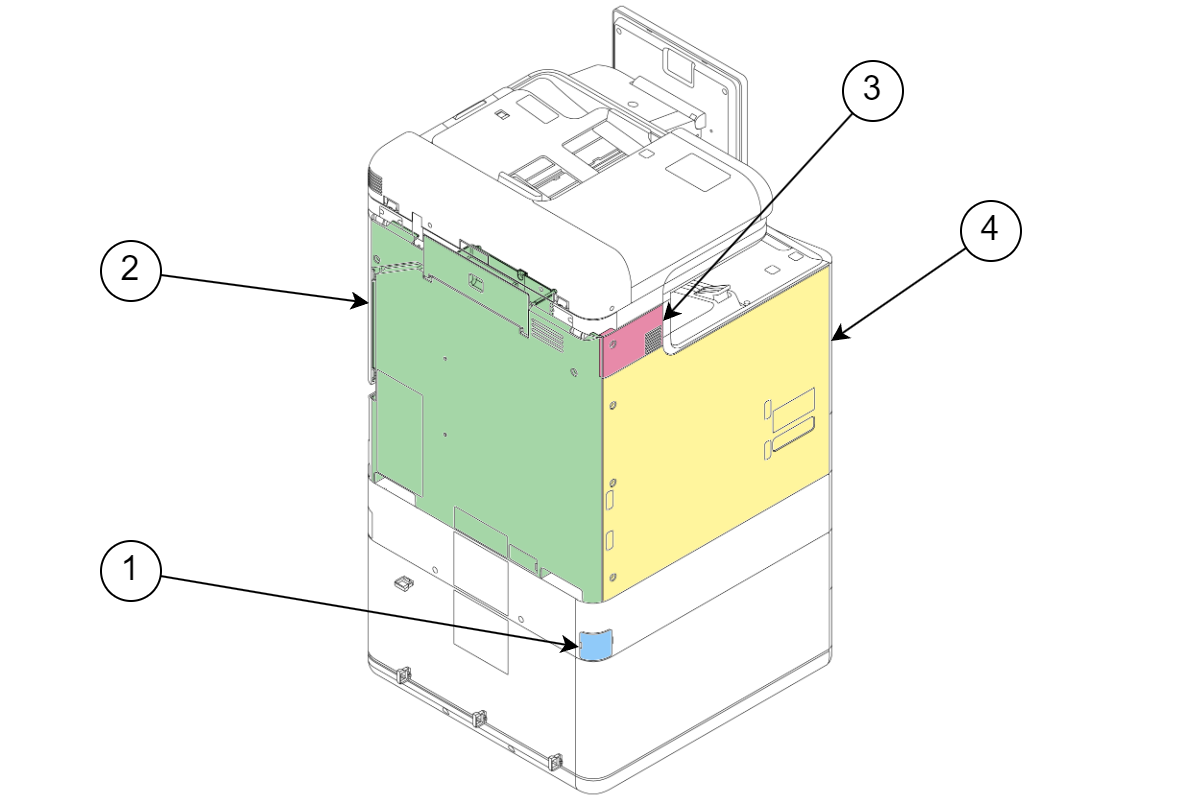

| No. | Name |
|---|---|
| 1 | Additional Right Decorative Cover Sub |
| 2 | Rear Cover |
| 3 | Left Cover Upper |
| 4 | Left Cover Lower |
