# C3C4 Additional Connector

1. Remove the 4 screws fixing the C2 Additional Rear Cover (A).


   • : 3x8D
2. While pulling the C2 Additional Rear Cover (A) out in the direction of the red arrow, rotate it in the direction of the blue arrow to disengage the 3 hooks, then remove the C2 Additional Rear Cover.

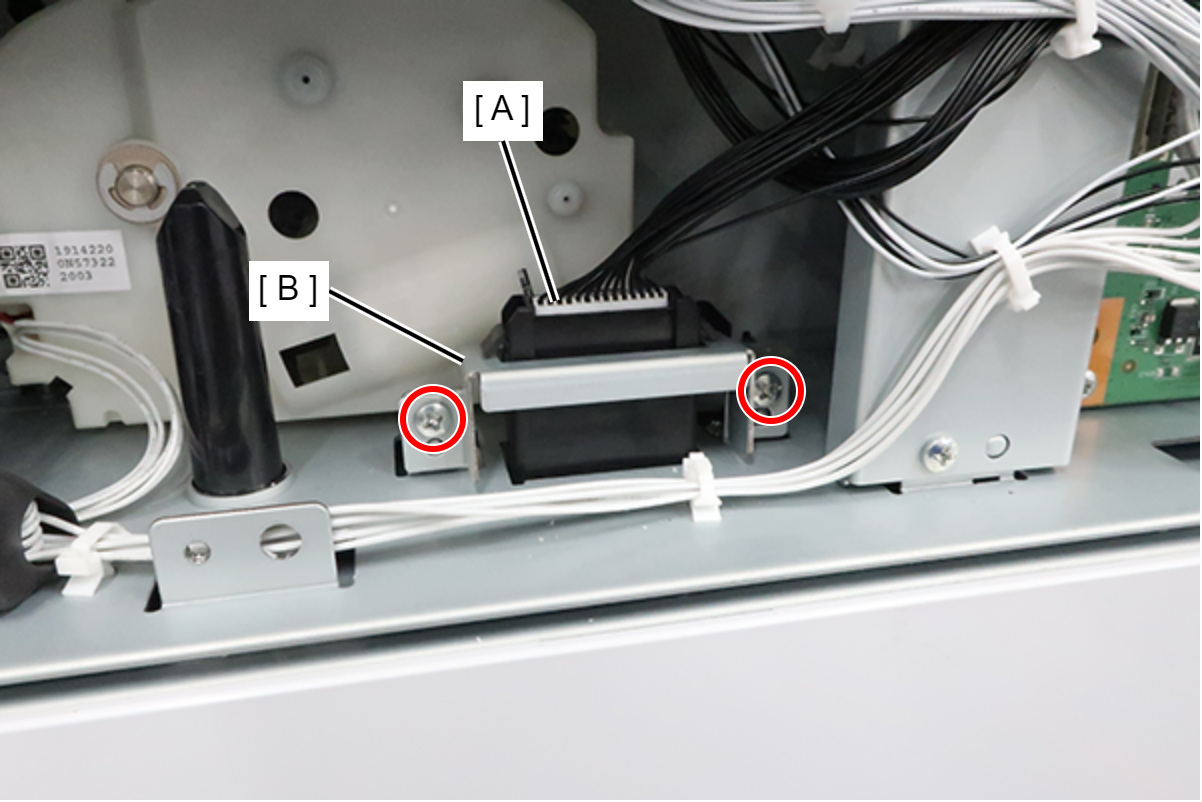

3. Remove the cable from the connector (A), remove the 2 screws, and remove the C2 Additional Connector Assy (B).


   • : 3x8D

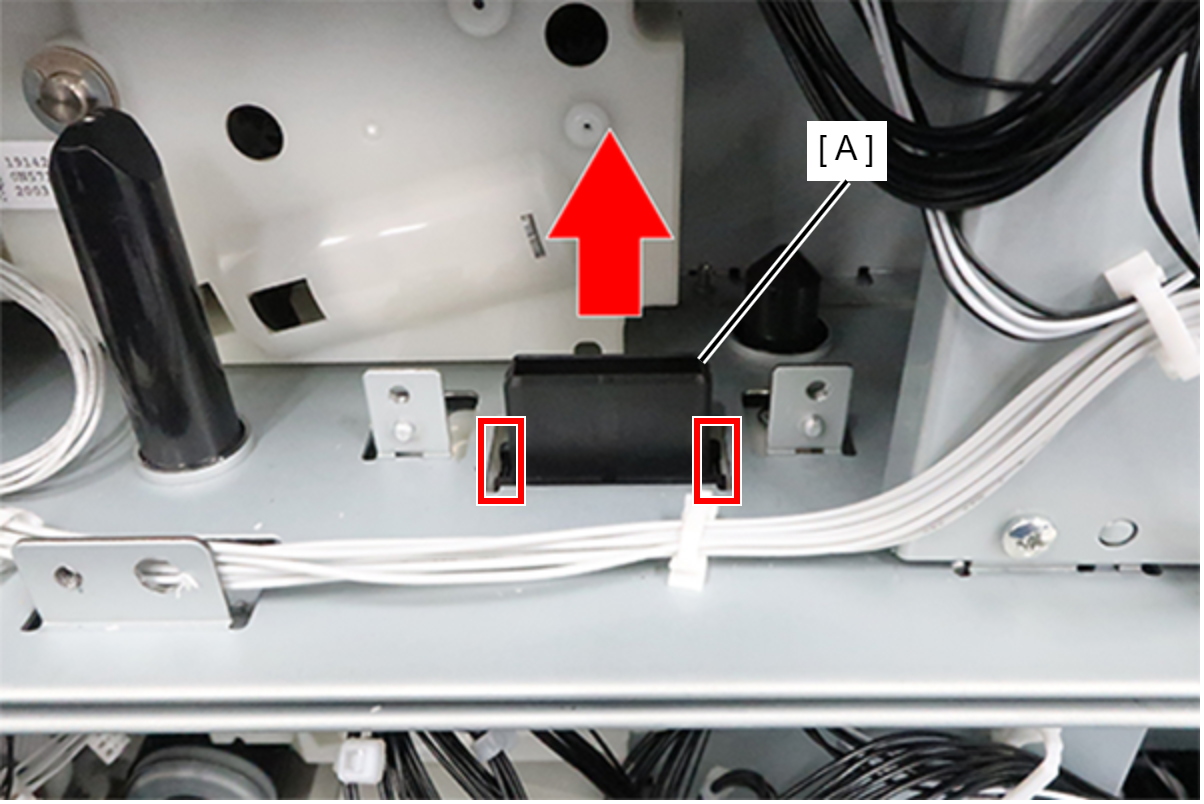

4. Release the 2 hooks and remove the C3C4 Additional Connector (A) in the direction of the arrow.

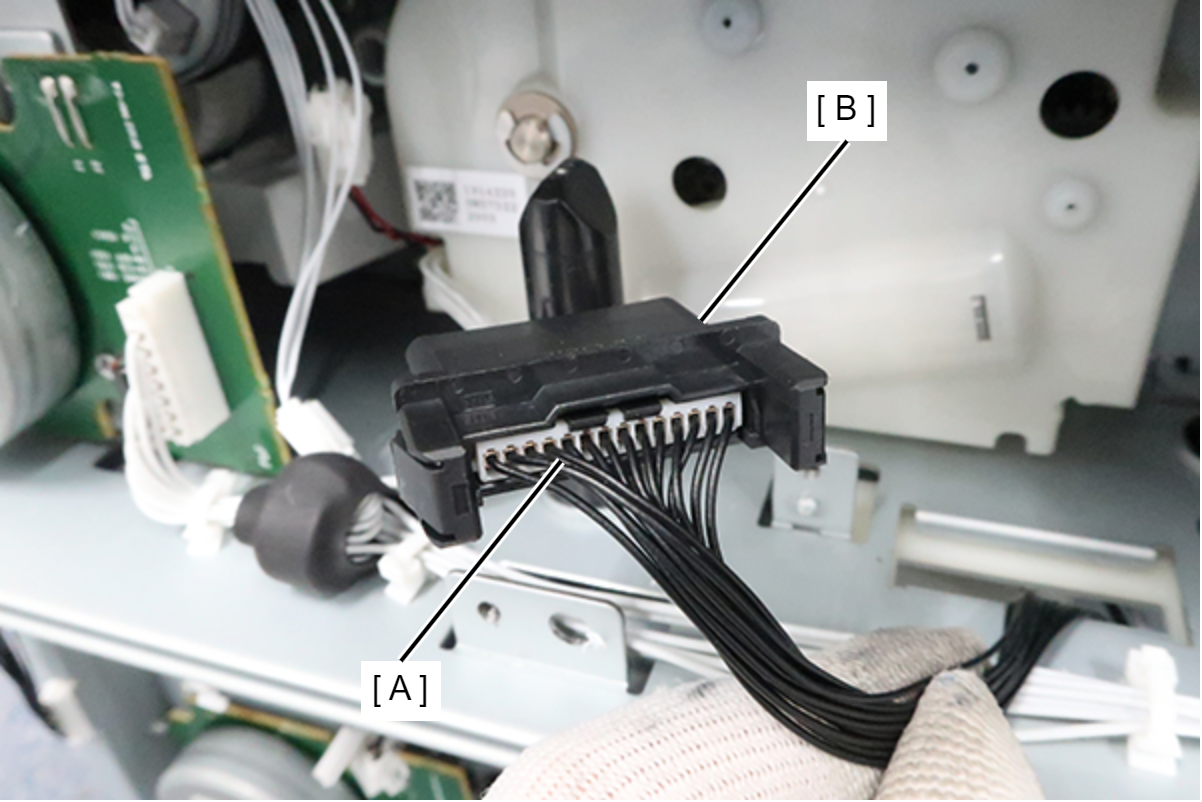

5. Remove the cable from the connector (A) and remove the C3C4 Additional Connector (B).
