C2 Pickup Roller Clutch

  1. Remove the 4 screws fixing the C2 Additional Rear Cover (A).

    • : 3x8D
  2. While pulling the C2 Additional Rear Cover (A) out in the direction of the red arrow, rotate it in the direction of the blue arrow to disengage the 3 hooks, then remove the C2 Additional Rear Cover.

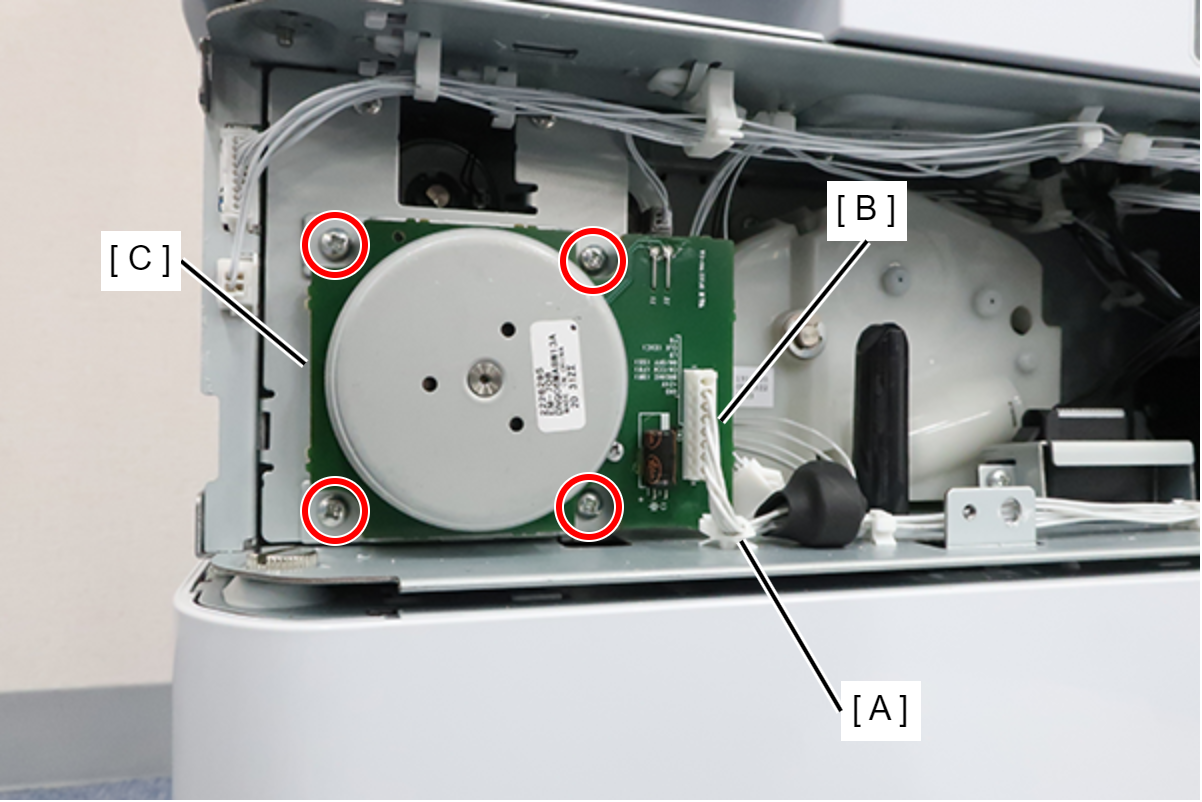

  3. Release the cable from the clamp (A) and disconnect the cable from the connector (B).
  4. Remove 4 screws, then remove the C2 Drive Motor (C).

    • : 3x8D
  5. Remove the 3 screws and remove the C2 Drive Motor Fixing Plate (A).

    • : 3x8D

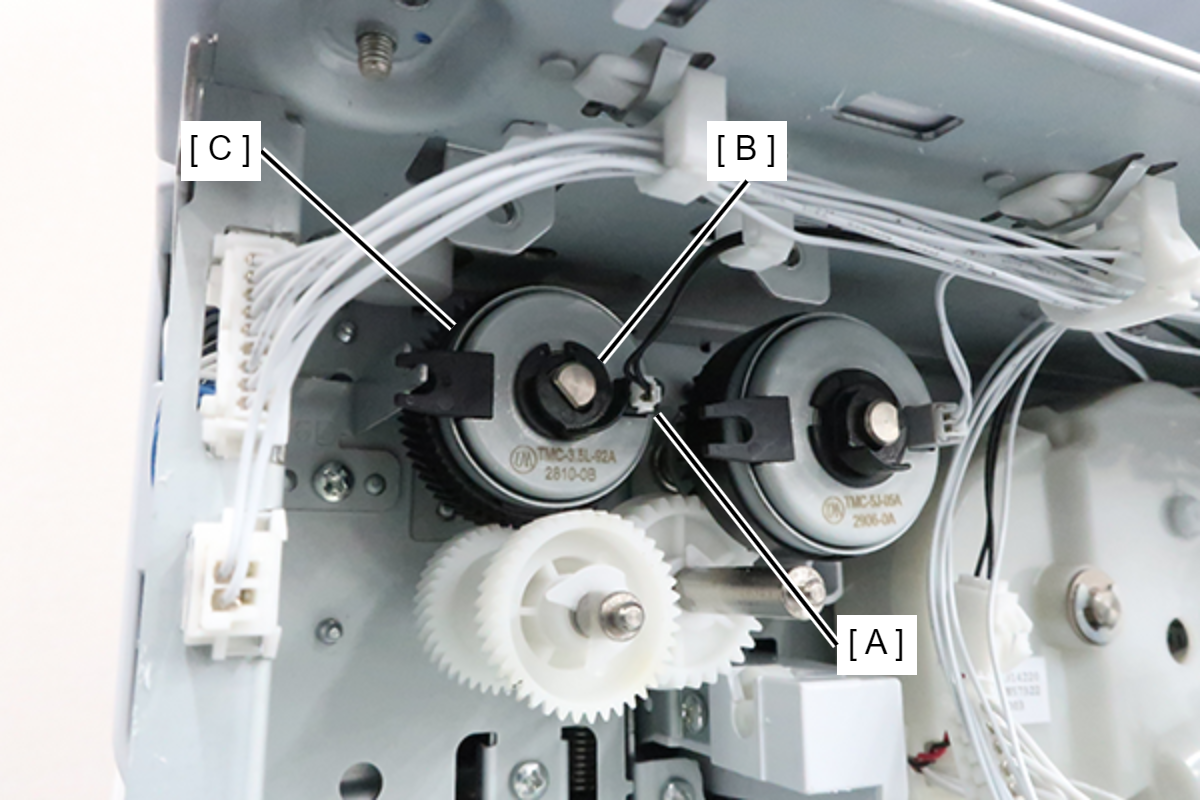

  6. Remove the cable from the connector (A), remove the C-ring (B), and the C2 Pickup Clutch Right (C).
