# Handle

1. Remove the screw and remove the Left Cover Upper (A) in the direction of the arrow.


   • : 3x8D
2. Remove the 3 screws and remove the left cover lower (A) in the direction of the arrow.


   • : 3x8D

   Assembly / 組み立て

   Align the 6 hooks on the Left Cover Lower with the holes on the main unit and attach it.

3. Open the Front Cover (A).

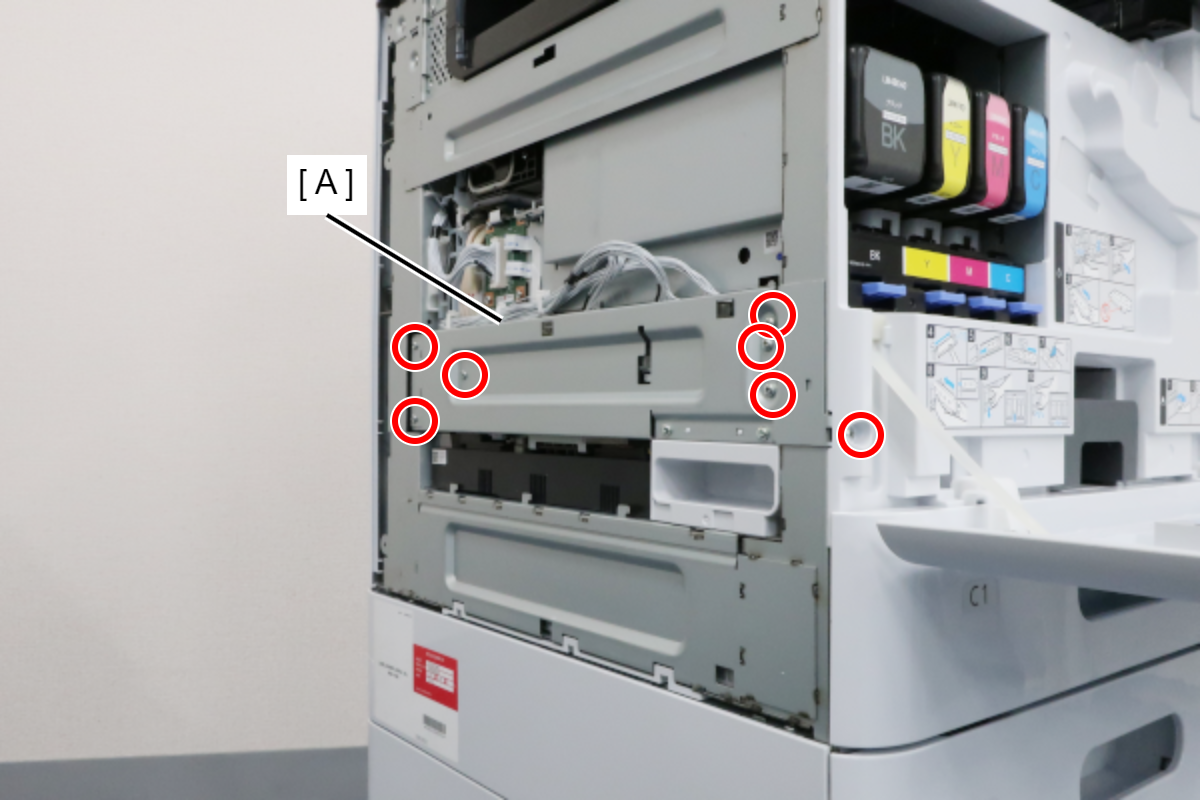

4. Remove the 7 screws and remove the Handle Frame (A).


   • : 3x8D

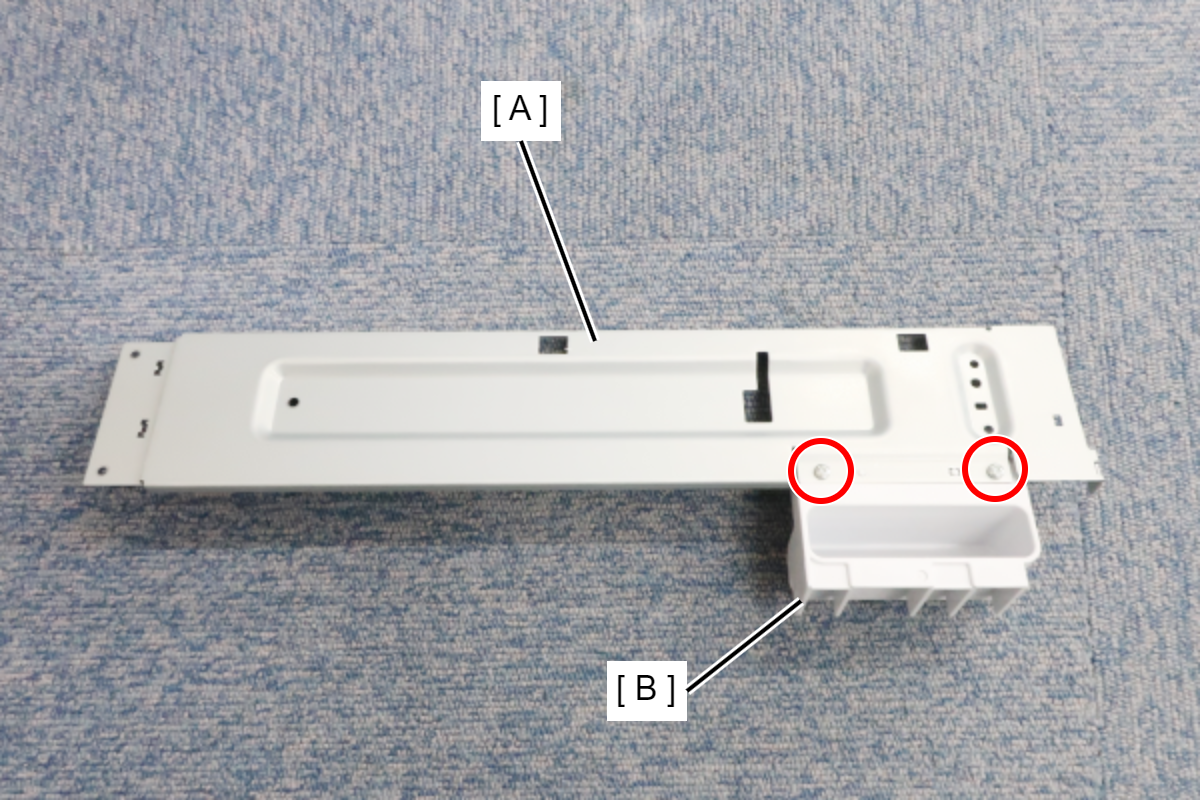

5. Remove the 2 screws and remove the Handle (B) from the Handle Frame (A).


   • : 3x10T
