# 60112 Pre-Head Sensor Correction

Corrects the luminous intensity variation of the Pre-Head Sensor.
Enter the correction value on the label attached to the Anti Static Brush Unit.

1. Start the service support mode.

2. Select [06 Individual Adjustment].

3. Select the [Main Unit・Additional Cassette] tab.
4. select [60112 Pre-Head Sensor correction].

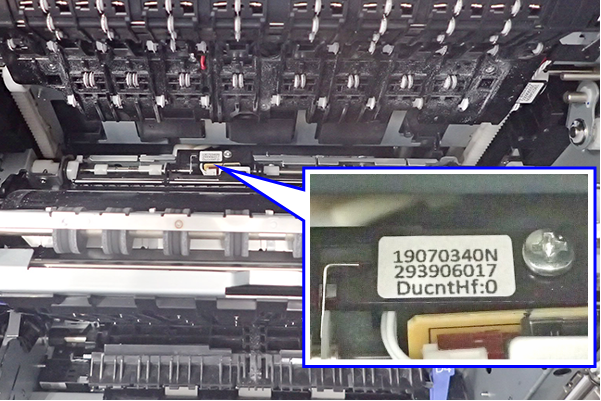

5. Open the Right Door Unit and Belt Unit, and check the correction value label.

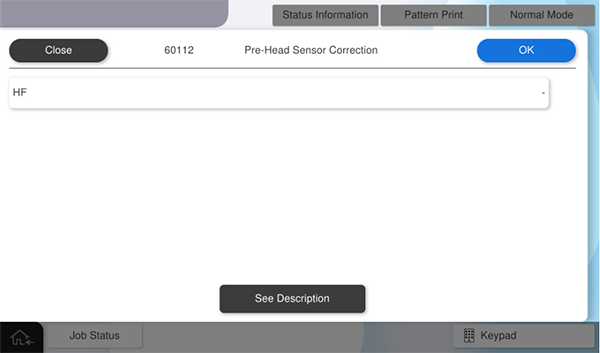

6. Enter the correction value HF and press [OK].
