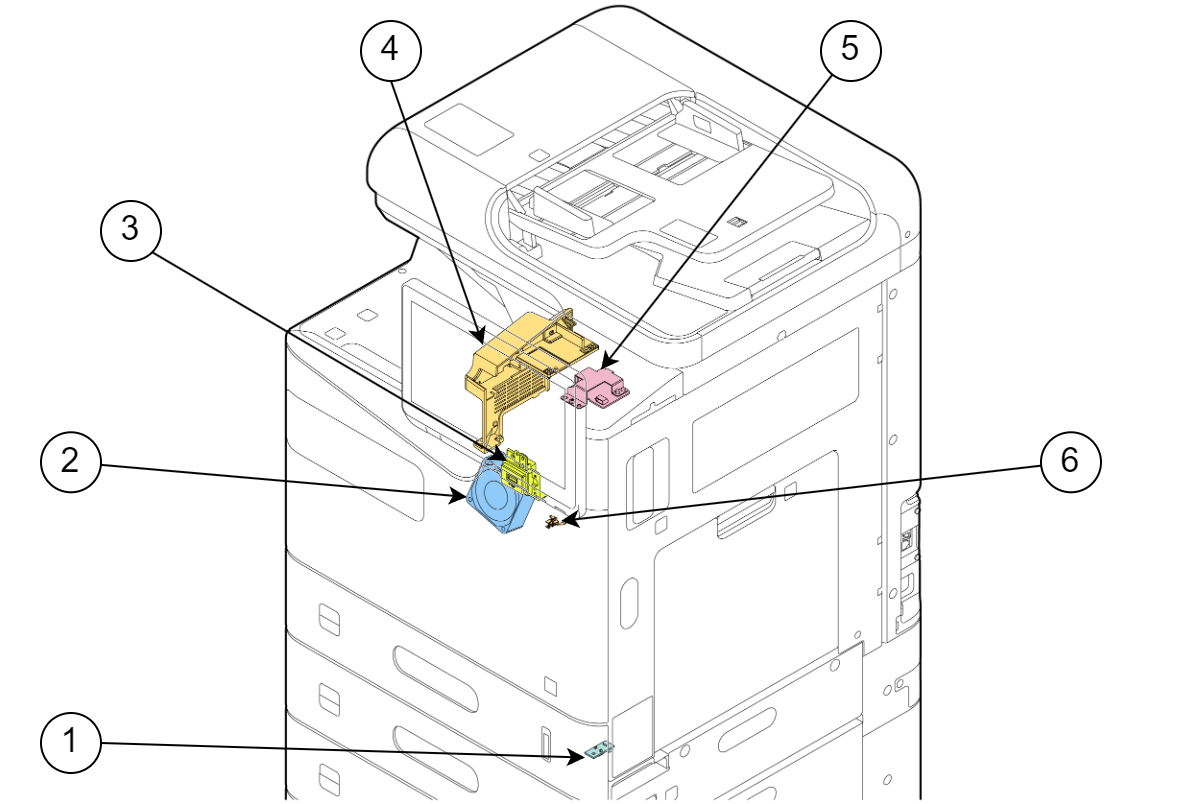

Electrical Components
| No. | Name |
|---|---|
| 1 | Temp/ Humidity Sensor |
| 2 | Head Board Cooling Fan |
| 3 | Front USB Port Assy |
| 4 | Speaker Assy |
| 5 | USB Port Assy (Authentication Printing) |
| 6 | Front Cover Sensor |

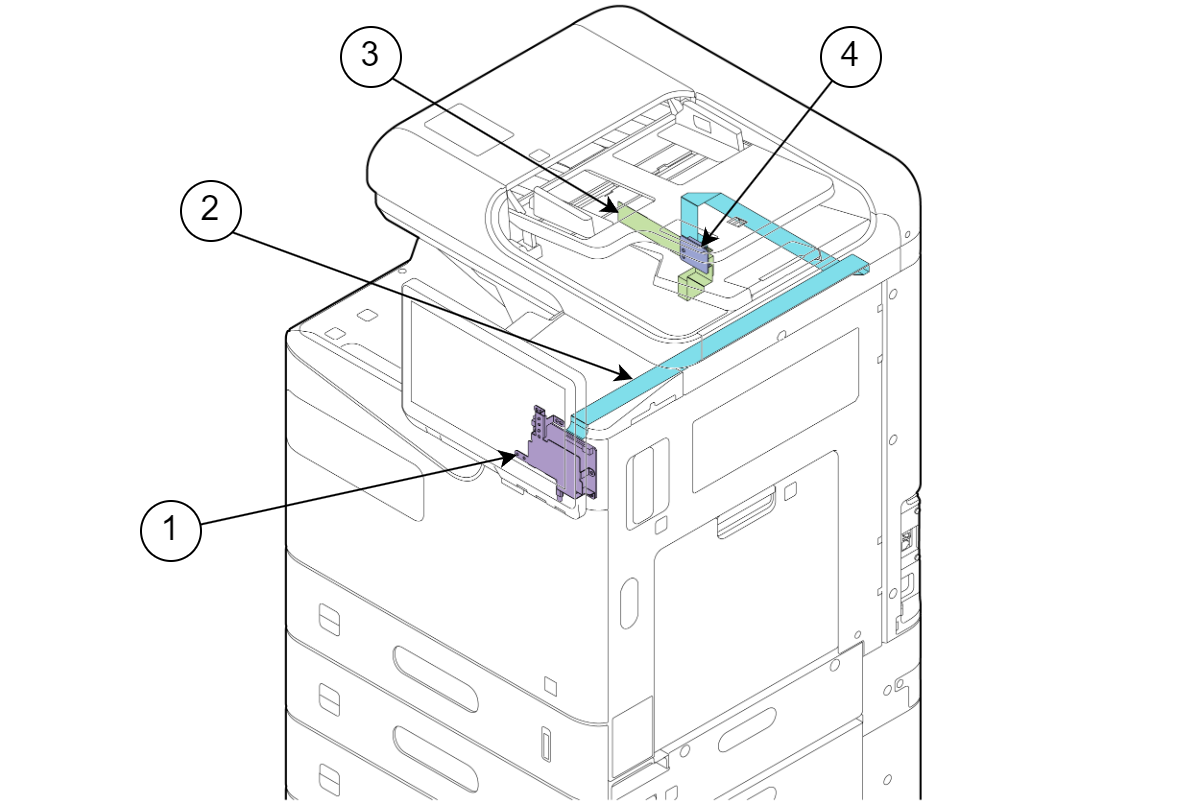

| No. | Name |
|---|---|
| 1 | Panel Relay Board Assy |
| 2 | Panel Relay FFC (Panel side) |
| 3 | Panel Relay FFC (Main Board side) |
| 4 | Panel FFC relay board |

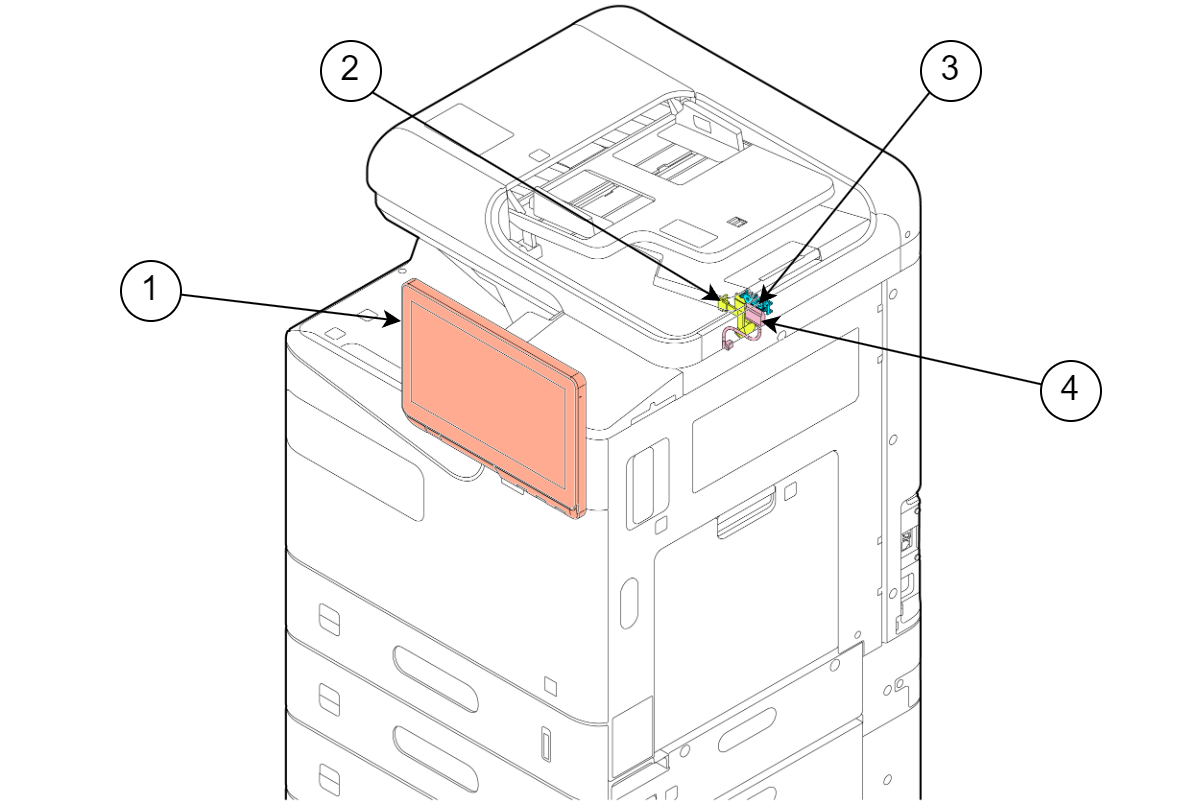

| No. | Name |
|---|---|
| 1 | Panel Unit |
| 2 | HDD Cable (SATA) |
| 3 | Tray Full Upper Detection Sensor |
| 4 | HDD Cable (Discrete Wire) |

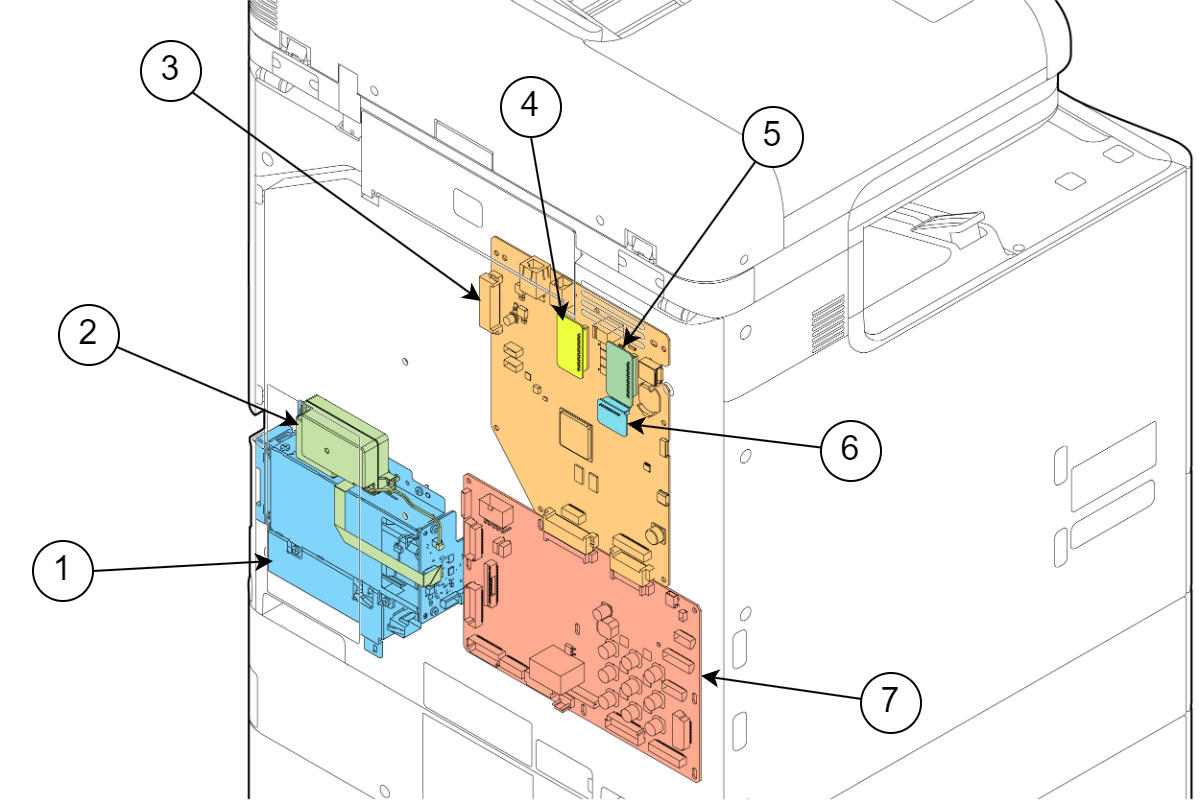

| No. | Name |
|---|---|
| 1 | I/F Slot Inlet Assy |
| 2 | Out-linger Box |
| 3 | Main Board |
| 4 | User Info ROM Board |
| 5 | Mech Info ROM Board |
| 6 | TPM Board |
| 7 | MCU Board |

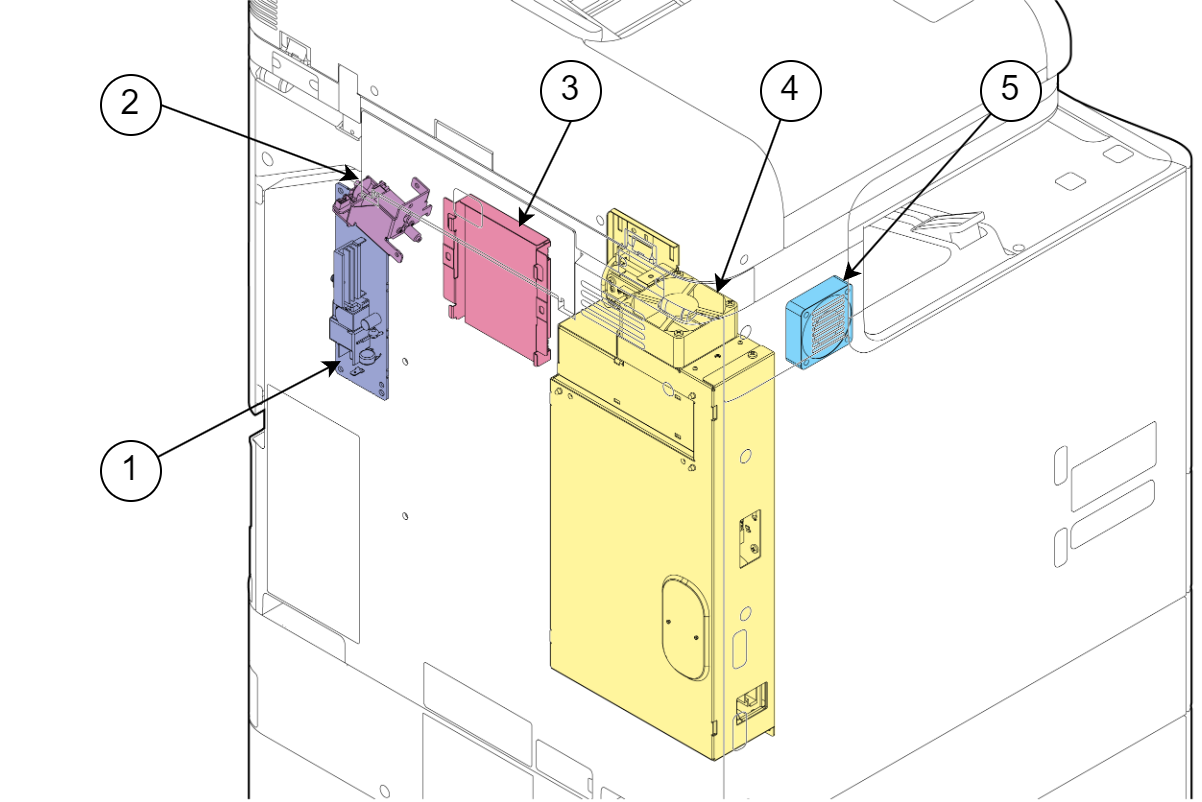

| No. | Name |
|---|---|
| 1 | High Voltage Board |
| 2 | APG Motor |
| 3 | HDD |
| 4 | Power Supply Box |
| 5 | Heat Vantilation Fan |
